CA-26.000-18-3050-X-R|26MHz|18pF|AKER台湾品牌

产品简介

CA-26.000-18-3050-X-R|26MHz|18pF|AKER台湾品牌,AKER台湾品牌,CA进口石英晶振,无源晶振,CA-26.000-18-3050-X-R晶振,石英晶体谐振器,HC-49S插件晶振,频率26MHz,负载18pF,工作温度-40~85°C,频率稳定性50ppm,低成本晶振,高精度晶振,低老化晶振,数码相机晶振,储存卡晶振,移动电话机晶振,数字摄像头晶振.

产品详情

TH-1 890

CA-26.000-18-3050-X-R|26MHz|18pF|AKER台湾品牌,AKER台湾品牌,CA进口石英晶振,无源晶振,CA-26.000-18-3050-X-R晶振,石英晶体谐振器,HC-49S插件晶振,频率26MHz,负载18pF,工作温度-40~85°C,频率稳定性50ppm,低成本晶振,高精度晶振,低老化晶振,数码相机晶振,储存卡晶振,移动电话机晶振,数字摄像头晶振.

CA-26.000-18-3050-X-R|26MHz|18pF|AKER台湾品牌特点：

-石英晶体单元

-含铅包装

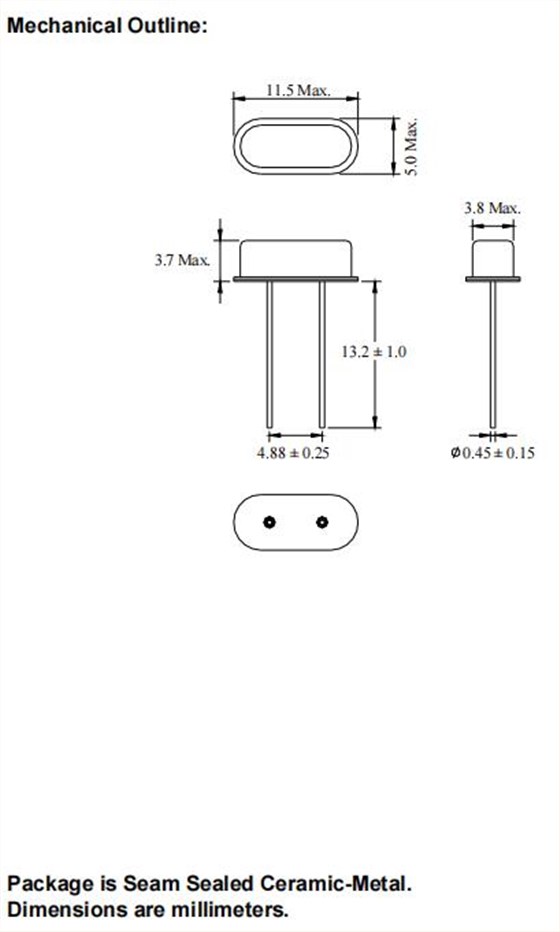

-HC-49/U-S短安装

-产品通用规格

TH-2 890

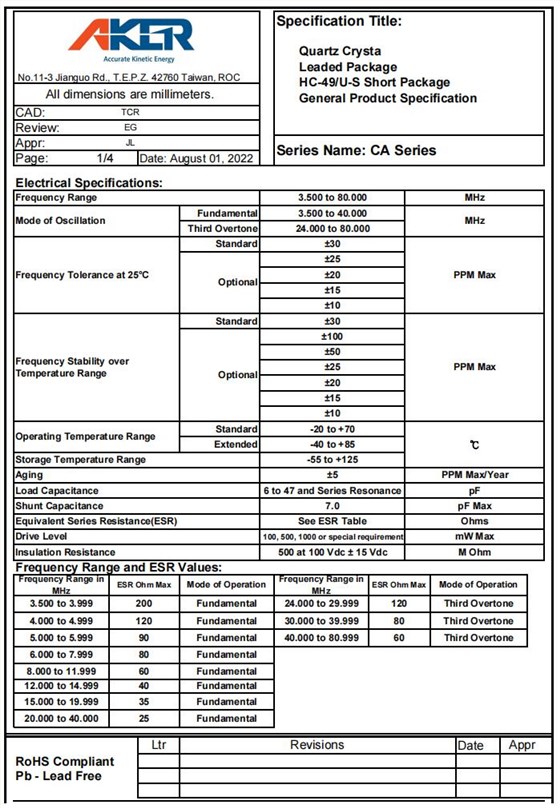

CA-26.000-18-3050-X-R|26MHz|18pF|AKER台湾品牌规格表

Frequency Range		26	MHz
Mode of Oscillation	Fundamental	3.500 to 40.000	MHz
	Third Overtone	24.000 to 80.000	MHz
Frequency Tolerance at 25°C	Standard	±30	PPM Max (Note 1)
	Optional	±25
		±20
		±15
		±10
Frequency Stability over Temperature Range	Standard	±30	PPM Max (Note 1)
	Optional	±100
		±50
		±25
		±20
		±15
		±10
Operating Temperature Range	Standard	-20 to +70	°C
	Extended	-40 to +85

		-40 to +125
Storage Temperature Range		-55 to +125
Aging		±5	PPM Max/Year
Load Capacitance		18	pF
Shunt Capacitance		7
Equivalent Series Resistance(ESR)		25	Ohm
Drive Level		100, 500, 1000 or special requirement	uW Max
Insulation Resistance		500 at 100 Vdc± 15Vdc	M Ohm
