12.87118|32.768KHz|6pF|格耶晶振|8038mm

产品简介

12.87118|32.768KHz|6pF|格耶晶振|8038mm,欧美进口晶振,格耶晶振,KX-327S无源晶振,石英晶体谐振器,12.87118晶振,32.768K晶振,SMD晶体,8038mm晶振,四脚贴片晶振,频率32.768KHz,负载9pF,工作温度-20~70°C,频率容差20ppm,高稳定性晶振,无铅环保晶振,低老化晶振,蓝牙音响晶振,移动电话晶振,家用电视机顶盒晶振,智能体温计晶振.

产品详情

TH-1 890 Ja-1

12.87118|32.768KHz|6pF|格耶晶振|8038mm,欧美进口晶振,格耶晶振,KX-327S无源晶振,石英晶体谐振器,12.87118晶振,32.768K晶振,SMD晶体,8038mm晶振,四脚贴片晶振,频率32.768KHz,负载9pF,工作温度-20~70°C,频率容差20ppm,高稳定性晶振,无铅环保晶振,低老化晶振,蓝牙音响晶振,移动电话晶振,家用电视机顶盒晶振,智能体温计晶振.

TH-2 890 TH--TC2

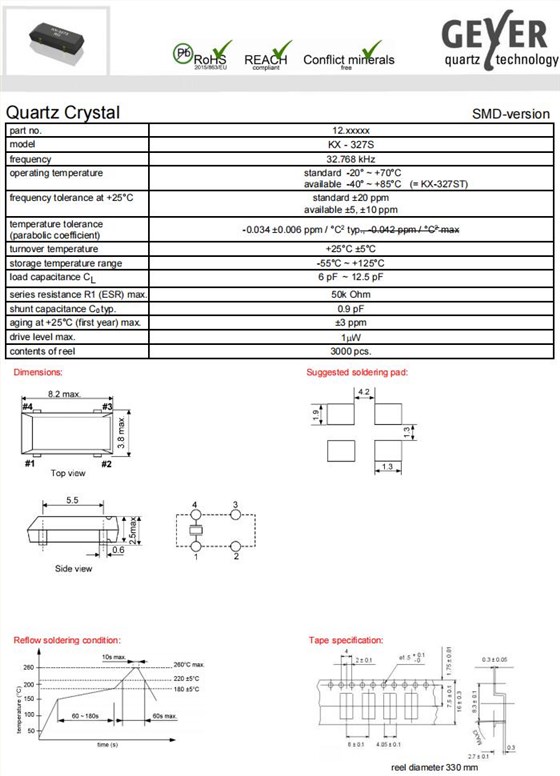

12.87118|32.768KHz|6pF|格耶晶振|8038mm规格表

part no.	12.87118
model	KX-327S
frequency	32.768 kHz
operating temperature	-20°~+70℃
frequency tolerance(df/F) at +25°C ±3°C	土20ppm
temperature tolerance (parabolic coefficient)	-0.034 ±0.006 ppm / °C2 typ., -0.042 ppm / °C2 max.
turnover temperature	+25°C±5℃
storage temperature range	-55°C~+125℃
load capacitance CL	12.5 pF
shunt capacitance C0 typ.	0.9 pF
series resistance R1 (ESR)	standard 70k Ohm max.; available 40k, 50k, 60k Ohm max.
aging at +25°℃ (first year) max.	±3 ppm
drive levelmax.	0.001 mW.
contents of reel	3000 pcs.
