当前位置: 首页 » 石英晶振 » MTI-MILLIREN晶振

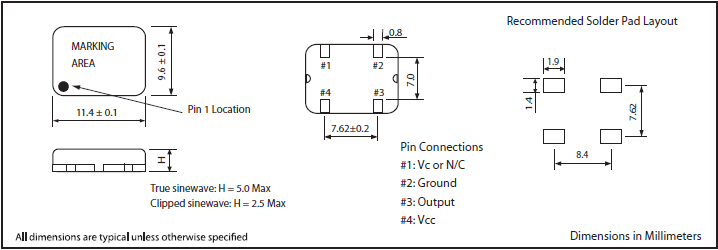

MTI-MILLIREN晶振,贴片晶振,403晶振,大体积低频有源晶振

MTI-MILLIREN晶振,贴片晶振,403晶振,大体积低频有源晶振频率:1.25 MHz - 40 MHz尺寸:11.4*9.6*5.0mm,11.4*9.6*2.5mm

小尺寸的TCXO温补晶振内部晶片焊接模式采用了,高精密点胶技术,晶片胶点的位置、大小:位置准确度以及胶点大小一致性,通过图像识别及高精密度数字定位系统的运用、使晶片的点胶的精度在±0.02mm之内,确保TCXO晶体产品精度,稳定性能良好发挥功能。

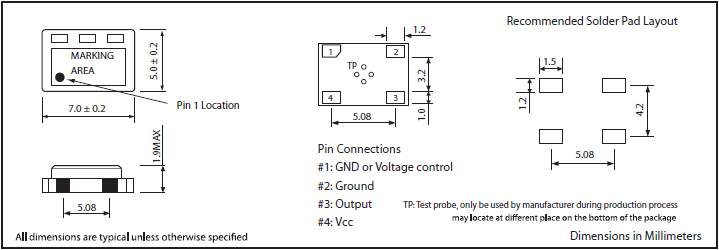

MTI-MILLIREN晶振,贴片晶振,404晶振,低电源电压7050晶体振荡器

MTI-MILLIREN晶振,贴片晶振,404晶振,低电源电压7050晶体振荡器频率:10 MHz - 27 MHz尺寸:7.0*5.0*1.9mm

7050mm体积的石英晶体振荡器有源晶振,改产品可驱动2.5V温补晶振,压控晶振,VC-TCXO晶体振荡器产品,电源电压的低电耗型,带包装方式,可对应自动高速贴片机自动焊接,IR回流焊接(无铅对应),为无铅产品,超小型,质地轻.产品被广泛应用到集成电路,程控交换系统,无线发射基站.

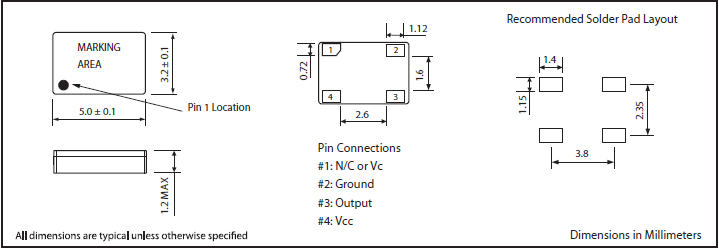

MTI-MILLIREN晶振,贴片晶振,405晶振,5.0*3.2mm美国进口TCXO晶振

MTI-MILLIREN晶振,贴片晶振,405晶振,5.0*3.2mm美国进口TCXO晶振频率:10 MHz - 40 MHz尺寸:5.0*3.2*1.2mm

有源石英晶振,无论是温补晶体也好,压控晶振也罢,产品均采用了,离子刻蚀调频技术,比目前一般使用的真空蒸镀方式调频,主要在产品参数有以下提升:1.微调后调整频率能控制在±2ppm,一般只能保持在±5ppm;2.产品的激励功率相关性参数有大幅提升;3.产品的长期老化率可保证在±2ppm之内

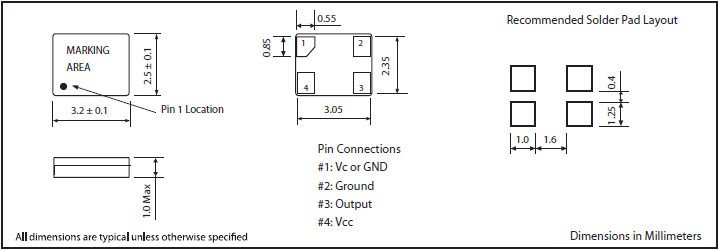

MTI-MILLIREN晶振,贴片晶振,406晶振,低功耗进口温补晶体振荡器

MTI-MILLIREN晶振,贴片晶振,406晶振,低功耗进口温补晶体振荡器频率:10 MHz - 52 MHz尺寸:3.2*2.5*1.0mm

有源晶振,是只晶体本身起振需要外部电压供应,起振后可直接驱动CMOS 集成电路,产品本身已实现与薄型IC(TSSOP封装,TVSOP封装)同样的1mm厚度,断开时的消费电流是15 µA以下,编带包装方式可对应自动搭载及IR回流焊接(无铅对应)产品有几种电压供选1.8V,2.5V,3V3.3V,5V,以应对不同IC产品需要..

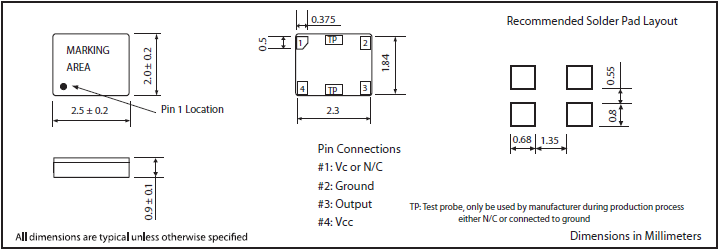

MTI-MILLIREN晶振,贴片晶振,407晶振,小体积2520有源晶振

MTI-MILLIREN晶振,贴片晶振,407晶振,小体积2520有源晶振频率:10 MHz - 52 MHz尺寸:2.5*2.0*0.9mm

小体积有源石英晶体振荡器,在生产时需要在完全净化车间,在密封的机器设备中测良,封装等技术1.防止外界气体进入组件体内受到污染和增加应力的产生;2.使组件在真空下电阻减小;3.气密性高。此技术为研发及生产超小型、超薄型石英晶体元器必须攻克的关键技术之一。

Recommended News

爱普生晶振新推出差分输出晶体振荡器

爱普生晶振新推出差分输出晶体振荡器

爱普生晶振新推出差分输出晶体振荡器

日本精工爱普生晶振公司成立于19425,迄今为止已经成了晶振行业较出名的进口晶振品牌,日本爱普生晶振,KDS大真空晶振,SEIKO精工晶振,KYOCERA晶振,NDK晶振均是日系较大晶振品牌供应商.市场竞争力比较大,各大进口晶振品牌制造商也不断的研发生产新产品

Japan Seiko Epson Crystal Co., Ltd. was established in May 1942. So far, it has become a well-known imported crystal brand in the crystal industry. Japan Epson crystal oscillator, KDS large vacuum crystal oscillator,Seiko crystaloscillator, KYOCERA crystal oscillator, NDK crystal oscillator are Japanese large crystal oscillators. Brand suppliers. The market competitiveness is relatively large, and the major imported crystal brand manufacturers are constantly developing and producing new products.

爱普生晶振广告图1

就在2014326,爱普生晶振公司推出SG7050EBN晶振.这款石英晶体振荡器型号是下一代的差分输出晶振(差分信号手于高频时钟和数据信号,以实现良好的信号完整性和高抗噪性.:高精度,高温度,低抖动,低功耗).可实现极低的相位抖动(时钟周期之前的波动,这可能导致数据传输期间的们错误).

On March 26, 2014, Epson Crystal Corporation introduced the SG7050EBN crystal. This quartz crystal oscillator model is the next generation of differential output crystal (differential signal hands on high frequency clock and data signals for good signal integrity and High noise immunity. For example: high precision, high temperature, low jitter, low power consumption. It can achieve extremely low phase jitter (fluctuations before the clock cycle, which may cause errors during data transmission).

SG7050EBN晶振的频率范围在100~175MHZ之间,可以实现65fs的相位抖动.些性能适用于数据中心和中心局使用的1040100千兆位以太网互连.SG7050EBN晶振将用于有线网络设备使用,包括运营商和企业,如高端路由器和交换机.

The SG7050EBN crystal has a frequency range of 100 to 175 MHz and can achieve phase jitter of 65 fs. These features are suitable for 1040 and 100 Gigabit Ethernet interconnections used in data centers and central offices. The SG7050EBN crystal oscillator will be used for wired network equipment. , including operators and enterprises, such as high-end routers and switches.

APS-1 SG7050EBN采用专为低噪声设计的振荡器IC和采用爱普生专用QMEMS(QMEMS结合了石英”,一种具有出色稳定性和精度的压电晶体材料,以采用微制造技术设计的”MEMS”微机系统.结合了MEMS技术的优势和石英材料的基本优势.也是精工爱普生晶振公司注册的商标)工艺制造的高频基波(HFF)AT切晶体(HFF晶体单元是通过光刻工艺蚀刻成倒置台面形状并以高基频振荡的晶体芯片).实现65fs相位抖动.爱普生的HFF晶体技术比传统的三次谐波晶体更加可靠.爱普生晶振公司后续也打算通过逐步发布支持HCSLLVDS输出标准的新产品来解决网络设备中使用的各种差分输出格式.EPSON晶振致力于提高客户的设计自由度,采用高度紧凑的5032(5.0*3.2*1.0mm)封装.

The SG7050EBN uses an oscillator IC designed for low noise and a QMEMS (QMEMS combined with quartz), a piezoelectric crystal material with excellent stability and precision, and a "MEMS" microcomputer system designed with micro-fabrication technology. Combines the advantages of MEMS technology with the basic advantages of quartz materials. It is also a trademark of Seiko Epson Crystal Co., Ltd.) Processed high-frequency fundamental (HFF) AT-cut crystal (HFF crystal unit is etched into an inverted mesa shape by photolithography and High-frequency oscillation crystal chip). Realize 65fs phase jitter. Epson's HFF crystal technology is more reliable than traditional third-harmonic crystal. Epson Crystal's follow-up is also intended to solve network equipment by gradually releasing new products supporting HCSL and LVDS standards. Various differential output formats used in the EPSON crystal oscillator are dedicated to improving the customer's design freedom in a highly compact 5032 (5.0*3.2*1.0mm) package.
