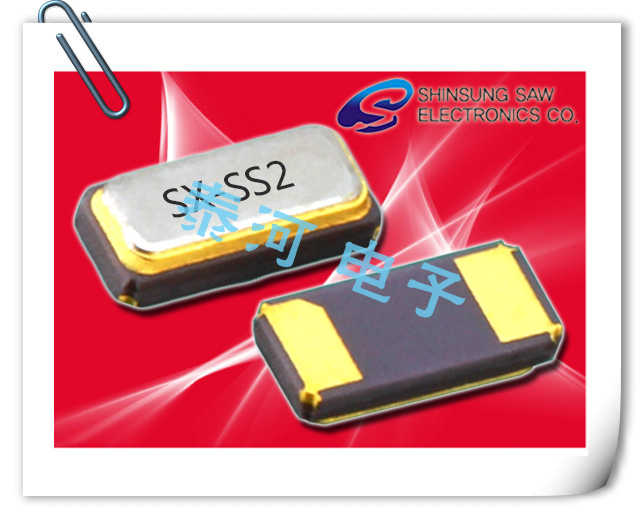

Shinsung晶振,贴片晶振,SX-SS2晶振,2脚5032压电石英水晶

Shinsung晶振,贴片晶振,SX-SS2晶振,2脚5032压电石英水晶频率:8.000 MHz - 125.000 MHz尺寸:5.0*3.2*0.85mm

6035mm,5032mm,4025mm贴片晶振系列,其产品晶体晶片采用了真空退火技术:高真空退火处理是消除在加工过程中产生的应力及轻微表面缺陷。在PLC控制程序中输入已设计好的温度曲线,使真空室温度跟随设定曲线对石英晶体组件进行退火,通过合理的真空退火技术可提高产品的主要参数的稳定性,提高产品的年老化特性。
Shinsung晶振,贴片晶振,SX-SS晶振,4脚AT切型5032晶振

Shinsung晶振,贴片晶振,SX-SS晶振,4脚AT切型5032晶振频率:8.000 MHz - 125.000 MHz尺寸:5.0*3.2*0.75mm

贴片晶振采用了多层、多金属的溅射镀膜技术:是目前研发及生产高精度、高稳定性石英晶体元器必须攻克的关键技术之一。选用何镀材、镀几种材料、几种镀材的镀膜顺序,镀膜的工艺方法(如各镀材的功率设计等)。使用此镀膜方法使镀膜后的附着力增强,频率更加集中,那么如何把晶片能控制在1000ppm之内呢。

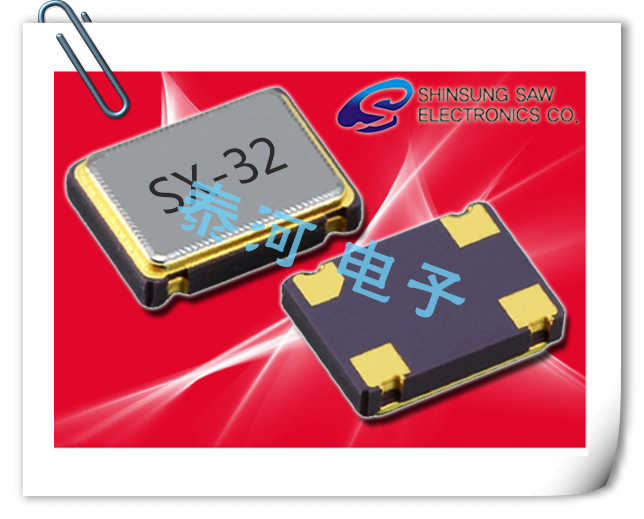

Shinsung晶振,贴片晶振,SX-32晶振,进口韩国石英晶振

Shinsung晶振,贴片晶振,SX-32晶振,进口韩国石英晶振频率:10 MHz - 60 MHz尺寸:3.2*2.5*0.6mm

小型表面贴片晶振型,是标准的石英晶体谐振器,适用于宽温范围的电子数码产品,家电电器及MP3,MP4,播放器,单片机等领域.可对应10.000MHz以上的频率,在电子数码产品,以及家电相关电器领域里面发挥优良的电气特性,满足无铅焊接的回流温度曲线要求.

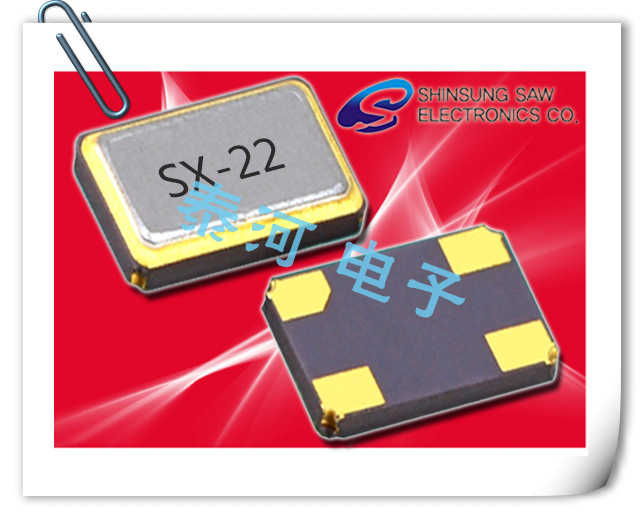

Shinsung晶振,贴片晶振,SX-22晶振,微处理器时钟晶体

Shinsung晶振,贴片晶振,SX-22晶振,微处理器时钟晶体频率:10 MHz - 60 MHz尺寸:2.5*2.0*0.55mm

贴片晶振本身体积,薄型石英晶体谐振器,特别适用于有目前高速发展的高端电子数码产品,因为晶振本身小型化需求的市场领域,小型?薄型是对应陶瓷谐振器(偏差大)和普通石英晶体谐振器(偏差小)的中间领域的一种性价比出色的产品.产品广泛用于笔记本电脑,无线电话,卫星导航HDD, SSD, USB, Blu-ray等用途,符合无铅焊接的高温回流焊曲线特性.

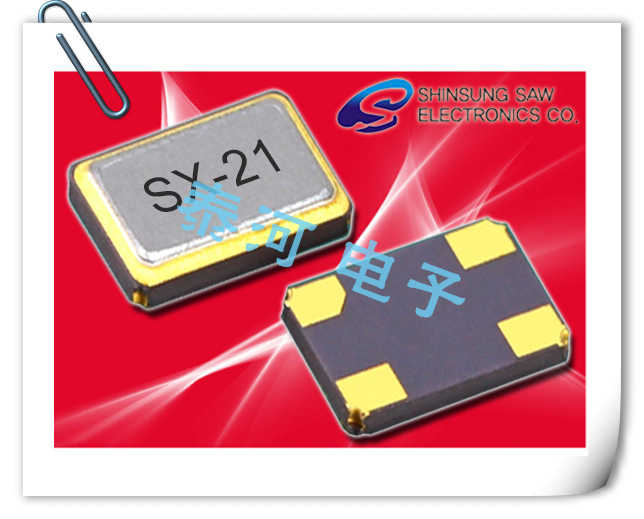

Shinsung晶振,贴片晶振,SX-21晶振,蜂窝电话基站晶体谐振器

Shinsung晶振,贴片晶振,SX-21晶振,蜂窝电话基站晶体谐振器频率:20 MHz - 60 MHz尺寸:2.0*1.6*0.45mm

那么贴片晶振产品的点击又是怎么回事呢?产品的电极对于晶体来讲,主要是,改变频率,往外引出电极,改变阻抗,去掉杂波,贴片晶体的晶片有镀金镀银等区别,各项镀层也会对产品的频率发生一定的改变,因此电极的设计会使晶振的精度产生更高的要求。

Recommended News

爱普生晶振新推出差分输出晶体振荡器

爱普生晶振新推出差分输出晶体振荡器

爱普生晶振新推出差分输出晶体振荡器

日本精工爱普生晶振公司成立于19425,迄今为止已经成了晶振行业较出名的进口晶振品牌,日本爱普生晶振,KDS大真空晶振,SEIKO精工晶振,KYOCERA晶振,NDK晶振均是日系较大晶振品牌供应商.市场竞争力比较大,各大进口晶振品牌制造商也不断的研发生产新产品

Japan Seiko Epson Crystal Co., Ltd. was established in May 1942. So far, it has become a well-known imported crystal brand in the crystal industry. Japan Epson crystal oscillator, KDS large vacuum crystal oscillator,Seiko crystaloscillator, KYOCERA crystal oscillator, NDK crystal oscillator are Japanese large crystal oscillators. Brand suppliers. The market competitiveness is relatively large, and the major imported crystal brand manufacturers are constantly developing and producing new products.

爱普生晶振广告图1

就在2014326,爱普生晶振公司推出SG7050EBN晶振.这款石英晶体振荡器型号是下一代的差分输出晶振(差分信号手于高频时钟和数据信号,以实现良好的信号完整性和高抗噪性.:高精度,高温度,低抖动,低功耗).可实现极低的相位抖动(时钟周期之前的波动,这可能导致数据传输期间的们错误).

On March 26, 2014, Epson Crystal Corporation introduced the SG7050EBN crystal. This quartz crystal oscillator model is the next generation of differential output crystal (differential signal hands on high frequency clock and data signals for good signal integrity and High noise immunity. For example: high precision, high temperature, low jitter, low power consumption. It can achieve extremely low phase jitter (fluctuations before the clock cycle, which may cause errors during data transmission).

SG7050EBN晶振的频率范围在100~175MHZ之间,可以实现65fs的相位抖动.些性能适用于数据中心和中心局使用的1040100千兆位以太网互连.SG7050EBN晶振将用于有线网络设备使用,包括运营商和企业,如高端路由器和交换机.

The SG7050EBN crystal has a frequency range of 100 to 175 MHz and can achieve phase jitter of 65 fs. These features are suitable for 1040 and 100 Gigabit Ethernet interconnections used in data centers and central offices. The SG7050EBN crystal oscillator will be used for wired network equipment. , including operators and enterprises, such as high-end routers and switches.

APS-1 SG7050EBN采用专为低噪声设计的振荡器IC和采用爱普生专用QMEMS(QMEMS结合了石英”,一种具有出色稳定性和精度的压电晶体材料,以采用微制造技术设计的”MEMS”微机系统.结合了MEMS技术的优势和石英材料的基本优势.也是精工爱普生晶振公司注册的商标)工艺制造的高频基波(HFF)AT切晶体(HFF晶体单元是通过光刻工艺蚀刻成倒置台面形状并以高基频振荡的晶体芯片).实现65fs相位抖动.爱普生的HFF晶体技术比传统的三次谐波晶体更加可靠.爱普生晶振公司后续也打算通过逐步发布支持HCSLLVDS输出标准的新产品来解决网络设备中使用的各种差分输出格式.EPSON晶振致力于提高客户的设计自由度,采用高度紧凑的5032(5.0*3.2*1.0mm)封装.

The SG7050EBN uses an oscillator IC designed for low noise and a QMEMS (QMEMS combined with quartz), a piezoelectric crystal material with excellent stability and precision, and a "MEMS" microcomputer system designed with micro-fabrication technology. Combines the advantages of MEMS technology with the basic advantages of quartz materials. It is also a trademark of Seiko Epson Crystal Co., Ltd.) Processed high-frequency fundamental (HFF) AT-cut crystal (HFF crystal unit is etched into an inverted mesa shape by photolithography and High-frequency oscillation crystal chip). Realize 65fs phase jitter. Epson's HFF crystal technology is more reliable than traditional third-harmonic crystal. Epson Crystal's follow-up is also intended to solve network equipment by gradually releasing new products supporting HCSL and LVDS standards. Various differential output formats used in the EPSON crystal oscillator are dedicated to improving the customer's design freedom in a highly compact 5032 (5.0*3.2*1.0mm) package.
