ConnorWinfield晶振,5032温补振荡器,TX214晶振

ConnorWinfield晶振,5032温补振荡器,TX214晶振频率:6.400MHz~49.152MHz尺寸:5.0*3.2*2.1mm

SMD高速自动安装和高温回流焊设计,Optionable待机输出三态输出功能,电源电压范围:1.8V~5 V,高稳定性,低抖动,低功耗,主要应用领域:无线通讯,高端智能手机,平板笔记本WLAN,蓝牙,数码相机,DSL和其他IT产品的晶振应用,三态功能,PC和LCDM等高端数码领域,符合RoHS/无铅.
ConnorWinfield晶振,小封装有源晶振,TX211晶振

ConnorWinfield晶振,小封装有源晶振,TX211晶振频率:10.000MHz~40.000MHz尺寸:3.2*2.5*1.1mm

3225mm体积的石英晶体振荡器有源晶振,改产品可驱动2.5V的温补晶振,产品,电源电压的低电耗型,编带包装方式,可对应自动高速贴片机自动焊接,及IR回流焊(无铅对应),为无铅产品,超小型,质地轻.产品被广泛应用到集成电路,程控交换系统,无线发射基站.
ConnorWinfield晶振,5032石英晶体振荡器,TX193晶振

ConnorWinfield晶振,5032石英晶体振荡器,TX193晶振频率:6.400MHz~40.000MHz尺寸:5.0*3.2*2.1mm

有源晶振,是只晶体本身起振需要外部电压供应,起振后可直接驱动CMOS 集成电路,产品本身已实现与薄型IC(TSSOP封装,TVSOP封装)同样的1mm厚度,断开时的消费电流是15 µA以下,编带包装方式可对应自动搭载及IR回流焊接(无铅对应)产品有几种电压供选1.8V,2.5V,3V3.3V,5V,以应对不同IC产品需要.
ConnorWinfield晶振,进口有源晶振,TX176晶振

ConnorWinfield晶振,进口有源晶振,TX176晶振频率:6.400MHz~50.000MHz尺寸:7.0*5.0*2.0mm

温补晶振(TCXO)温补石英晶体振荡器基本解决方案,CMOS输出,输出频率6.400MHz到50.000MHz之间,出色的低相位噪声和抖动,三态功能,应用:SDH/SONET,以太网,基站,笔记本晶振应用,符合RoHS/无铅.

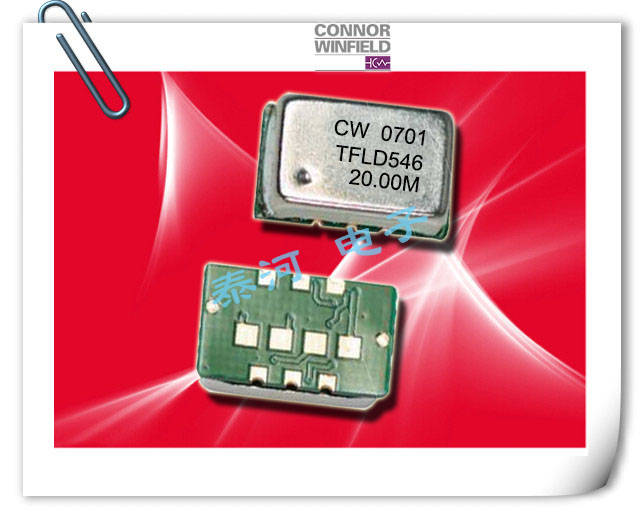

ConnorWinfield晶振,温补晶振,TFLD546晶振

ConnorWinfield晶振,温补晶振,TFLD546晶振频率:12.800MHz~155.520MHz尺寸:14.10*9.02*5.33mm

缝密封石英晶体振荡器,精度高,覆盖频率范围宽的特点,SMD高速自动安装和高温回流焊设计,Optionable待机输出三态输出功能,电源电压范围:1.8V?5 V,高稳定性,低抖动,低功耗,主要应用领域:无线通讯,高端智能手机,平板笔记本WLAN,蓝牙,数码相机,DSL和其他IT产品的晶振应用,三态功能,PC和LCDM等高端数码领域,符合RoHS/无铅.

Recommended News

爱普生晶振新推出差分输出晶体振荡器

爱普生晶振新推出差分输出晶体振荡器

爱普生晶振新推出差分输出晶体振荡器

日本精工爱普生晶振公司成立于19425,迄今为止已经成了晶振行业较出名的进口晶振品牌,日本爱普生晶振,KDS大真空晶振,SEIKO精工晶振,KYOCERA晶振,NDK晶振均是日系较大晶振品牌供应商.市场竞争力比较大,各大进口晶振品牌制造商也不断的研发生产新产品

Japan Seiko Epson Crystal Co., Ltd. was established in May 1942. So far, it has become a well-known imported crystal brand in the crystal industry. Japan Epson crystal oscillator, KDS large vacuum crystal oscillator,Seiko crystaloscillator, KYOCERA crystal oscillator, NDK crystal oscillator are Japanese large crystal oscillators. Brand suppliers. The market competitiveness is relatively large, and the major imported crystal brand manufacturers are constantly developing and producing new products.

爱普生晶振广告图1

就在2014326,爱普生晶振公司推出SG7050EBN晶振.这款石英晶体振荡器型号是下一代的差分输出晶振(差分信号手于高频时钟和数据信号,以实现良好的信号完整性和高抗噪性.:高精度,高温度,低抖动,低功耗).可实现极低的相位抖动(时钟周期之前的波动,这可能导致数据传输期间的们错误).

On March 26, 2014, Epson Crystal Corporation introduced the SG7050EBN crystal. This quartz crystal oscillator model is the next generation of differential output crystal (differential signal hands on high frequency clock and data signals for good signal integrity and High noise immunity. For example: high precision, high temperature, low jitter, low power consumption. It can achieve extremely low phase jitter (fluctuations before the clock cycle, which may cause errors during data transmission).

SG7050EBN晶振的频率范围在100~175MHZ之间,可以实现65fs的相位抖动.些性能适用于数据中心和中心局使用的1040100千兆位以太网互连.SG7050EBN晶振将用于有线网络设备使用,包括运营商和企业,如高端路由器和交换机.

The SG7050EBN crystal has a frequency range of 100 to 175 MHz and can achieve phase jitter of 65 fs. These features are suitable for 1040 and 100 Gigabit Ethernet interconnections used in data centers and central offices. The SG7050EBN crystal oscillator will be used for wired network equipment. , including operators and enterprises, such as high-end routers and switches.

APS-1 SG7050EBN采用专为低噪声设计的振荡器IC和采用爱普生专用QMEMS(QMEMS结合了石英”,一种具有出色稳定性和精度的压电晶体材料,以采用微制造技术设计的”MEMS”微机系统.结合了MEMS技术的优势和石英材料的基本优势.也是精工爱普生晶振公司注册的商标)工艺制造的高频基波(HFF)AT切晶体(HFF晶体单元是通过光刻工艺蚀刻成倒置台面形状并以高基频振荡的晶体芯片).实现65fs相位抖动.爱普生的HFF晶体技术比传统的三次谐波晶体更加可靠.爱普生晶振公司后续也打算通过逐步发布支持HCSLLVDS输出标准的新产品来解决网络设备中使用的各种差分输出格式.EPSON晶振致力于提高客户的设计自由度,采用高度紧凑的5032(5.0*3.2*1.0mm)封装.

The SG7050EBN uses an oscillator IC designed for low noise and a QMEMS (QMEMS combined with quartz), a piezoelectric crystal material with excellent stability and precision, and a "MEMS" microcomputer system designed with micro-fabrication technology. Combines the advantages of MEMS technology with the basic advantages of quartz materials. It is also a trademark of Seiko Epson Crystal Co., Ltd.) Processed high-frequency fundamental (HFF) AT-cut crystal (HFF crystal unit is etched into an inverted mesa shape by photolithography and High-frequency oscillation crystal chip). Realize 65fs phase jitter. Epson's HFF crystal technology is more reliable than traditional third-harmonic crystal. Epson Crystal's follow-up is also intended to solve network equipment by gradually releasing new products supporting HCSL and LVDS standards. Various differential output formats used in the EPSON crystal oscillator are dedicated to improving the customer's design freedom in a highly compact 5032 (5.0*3.2*1.0mm) package.
