1*4晶振,圆柱插件晶振,音叉晶体

当前位置：首页 » 32.768K » 1*4晶振

: 微晶晶振,石英晶振,DS26晶振,DS15晶振,DS10晶振频率：32.768KHZ尺寸：2.0*6.0mm,1.5*5.0mm,1.0*4.3mm

泰河电子公司主要生产的32.768K音叉型石英晶体谐振器产品具有以下几种规格，∅3*8，∅2*6，我公司所有材料均是来自日本进口，封装测试设备采用日本精工仪器设备，并且从日本聘请高级技术工程师，我司所生产的32.768K晶体具有一致性良好，频率稳定度高，耐抗震强，每批次出厂均采用24小时老化测试。

相关产品说明下载PDF文件

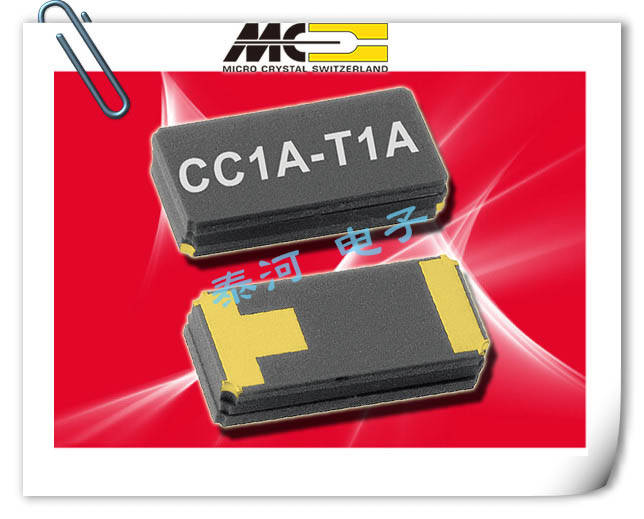

: 微晶晶振,8038贴片晶振,CC1A-T1A晶振频率：8.000MHz~30.000MHz尺寸：8.0*3.7*1.75mm

贴片晶振本身体积小,超薄型石英晶体谐振器,特别适用于有目前高速发展的高端电子数码产品,因为晶振本身小型化需求的市场领域,产品广泛用于笔记本电脑,无线电话,卫星导航HDD,SSD,USB,Blu-ray等用途,符合无铅焊接的高温回流焊曲线特性.

相关产品说明下载PDF文件

: 西铁城晶振,音叉晶体,CM415晶振频率：32.768KHz尺寸：4.1*1.5*0.9mm

工作温度:-40℃~+85℃

保存温度:-55℃~+125℃

负载电容:12.5pF

贴片表晶32.768K系列具有超小型,薄型,质地轻的表面贴片音叉型石英晶体谐振器,晶振产品本身具备优良的耐热性,耐环境特性,在办公自动化,家电领域,移动通信领域可发挥优良的电气特性.

相关产品说明下载PDF文件

: SEIKO晶振,圆柱晶振,VT-120-F晶振频率：32.768KHZ尺寸：1.2*4.7mm

千赫频率元件,应用于时钟模块,智能手机,全球定位系统,因产品本身体积小,被广泛应用到各种小巧的便携式消费电子数码时间产品,儿童玩具等环保性能符合ROHS/无铅标准.

相关产品说明下载PDF文件

Recommended News

爱普生晶振新推出差分输出晶体振荡器: 爱普生晶振新推出差分输出晶体振荡器

日本精工爱普生晶振公司成立于1942年5月,迄今为止已经成了晶振行业较出名的进口晶振品牌,日本爱普生晶振,KDS大真空晶振,SEIKO精工晶振,KYOCERA晶振,NDK晶振均是日系较大晶振品牌供应商.市场竞争力比较大,各大进口晶振品牌制造商也不断的研发生产新产品.

Japan Seiko Epson Crystal Co., Ltd. was established in May 1942. So far, it has become a well-known imported crystal brand in the crystal industry. Japan Epson crystal oscillator, KDS large vacuum crystal oscillator,Seiko crystaloscillator, KYOCERA crystal oscillator, NDK crystal oscillator are Japanese large crystal oscillators. Brand suppliers. The market competitiveness is relatively large, and the major imported crystal brand manufacturers are constantly developing and producing new products.

就在2014年3月26日,爱普生晶振公司推出SG7050EBN晶振.这款石英晶体振荡器型号是下一代的差分输出晶振(差分信号手于高频时钟和数据信号,以实现良好的信号完整性和高抗噪性.如:高精度,高温度,低抖动,低功耗).可实现极低的相位抖动(时钟周期之前的波动,这可能导致数据传输期间的们错误).

On March 26, 2014, Epson Crystal Corporation introduced the SG7050EBN crystal. This quartz crystal oscillator model is the next generation of differential output crystal (differential signal hands on high frequency clock and data signals for good signal integrity and High noise immunity. For example: high precision, high temperature, low jitter, low power consumption. It can achieve extremely low phase jitter (fluctuations before the clock cycle, which may cause errors during data transmission).

SG7050EBN晶振的频率范围在100~175MHZ之间,可以实现65fs的相位抖动.些性能适用于数据中心和中心局使用的1040和100千兆位以太网互连.SG7050EBN晶振将用于有线网络设备使用,包括运营商和企业,如高端路由器和交换机.

The SG7050EBN crystal has a frequency range of 100 to 175 MHz and can achieve phase jitter of 65 fs. These features are suitable for 1040 and 100 Gigabit Ethernet interconnections used in data centers and central offices. The SG7050EBN crystal oscillator will be used for wired network equipment. , including operators and enterprises, such as high-end routers and switches.

SG7050EBN采用专为低噪声设计的振荡器IC和采用爱普生专用QMEMS(QMEMS结合了”石英”,一种具有出色稳定性和精度的压电晶体材料,以采用微制造技术设计的”MEMS”微机系统.结合了MEMS技术的优势和石英材料的基本优势.也是精工爱普生晶振公司注册的商标)工艺制造的高频基波(HFF)AT切晶体(HFF晶体单元是通过光刻工艺蚀刻成倒置台面形状并以高基频振荡的晶体芯片).实现65fs相位抖动.爱普生的HFF晶体技术比传统的三次谐波晶体更加可靠.爱普生晶振公司后续也打算通过逐步发布支持HCSL和LVDS输出标准的新产品来解决网络设备中使用的各种差分输出格式.EPSON晶振致力于提高客户的设计自由度,采用高度紧凑的5032(5.0*3.2*1.0mm)封装.

The SG7050EBN uses an oscillator IC designed for low noise and a QMEMS (QMEMS combined with quartz), a piezoelectric crystal material with excellent stability and precision, and a "MEMS" microcomputer system designed with micro-fabrication technology. Combines the advantages of MEMS technology with the basic advantages of quartz materials. It is also a trademark of Seiko Epson Crystal Co., Ltd.) Processed high-frequency fundamental (HFF) AT-cut crystal (HFF crystal unit is etched into an inverted mesa shape by photolithography and High-frequency oscillation crystal chip). Realize 65fs phase jitter. Epson's HFF crystal technology is more reliable than traditional third-harmonic crystal. Epson Crystal's follow-up is also intended to solve network equipment by gradually releasing new products supporting HCSL and LVDS standards. Various differential output formats used in the EPSON crystal oscillator are dedicated to improving the customer's design freedom in a highly compact 5032 (5.0*3.2*1.0mm) package.
【更多详情】
