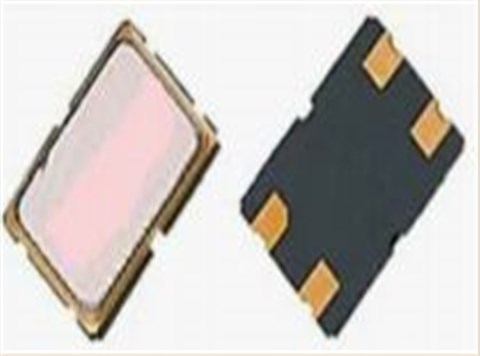

Anderson晶振,6G通讯设备晶振,AE-131-A-2-4085-2-30-24M0000四脚晶振，美国安德森晶振公司，Anderson晶振，AE-131晶振，无源晶振，贴片晶振，7050晶振，6G通讯设备晶振，6G路由器晶振，频率范围5.50 MHz - 150 MHz AT-strip切割更严格的公差和稳定性。密封陶瓷封装，可靠性高。磁带/卷轴符合EIA 481标准。符合ROHS标准/无铅，这种陶瓷AE131用于计算机，调制解调器，微处理器以及通信和测试设备。
Anderson晶振,6G通讯设备晶振,AE-131-A-2-4085-2-30-24M0000四脚晶振
| 案例 | AE131 | A | 2 | 4085 | 2 | 30 | 24M0000 (Freq. in MHz) |
| 振荡模式 | A | Fundamental | |||||
| B | 3rd Overtone | ||||||
| 校准公差 | 1 | ± 10 ppm | |||||
| 2 | ± 20 ppm | ||||||
| 3 | ± 30 ppm | ||||||
| 5 | ± 50 ppm | ||||||
| Z | ±Custom (Specify) | ||||||
| 工作温度 | 5505 | Custom (-55°C to +105°C) | |||||
| 4085 | -40° to +85° | ||||||
| 3060 | -30° to +60° | ||||||
| 2070 | -20° to +70° | ||||||
| 负载电容 | 5 | ± 50 ppm | |||||
| 3 | ± 30 ppm | ||||||
| 2 | ± 20 ppm | ||||||
| 1 | ± 10 ppm | ||||||
| 18 | 18 pf | ||||||
| 20 | 20 pf | ||||||
| 30 | 30 pf | ||||||
| 32 | 32 pf | ||||||
| SE | Series | ||||||
| XX | Custom (I.E. 08 pf) | ||||||
Anderson晶振,6G通讯设备晶振,AE-131-A-2-4085-2-30-24M0000四脚晶振
