IQD晶振|LFXTAL026380Reel|12SMX-B晶振|7050mm晶振规格表
参数
数值
频率
8 MHz
频率容差@ 25°C ± 3°C
±30 ppm
频率稳定性
±50 ppm
工作温度
-20~70°C
储存温度
-40~125°C
负载
16pF
并联电容
7pFtyp
驱动电平
100µWmax.
老化@ 25°C ± 3°C
±5.0ppm peryearmax

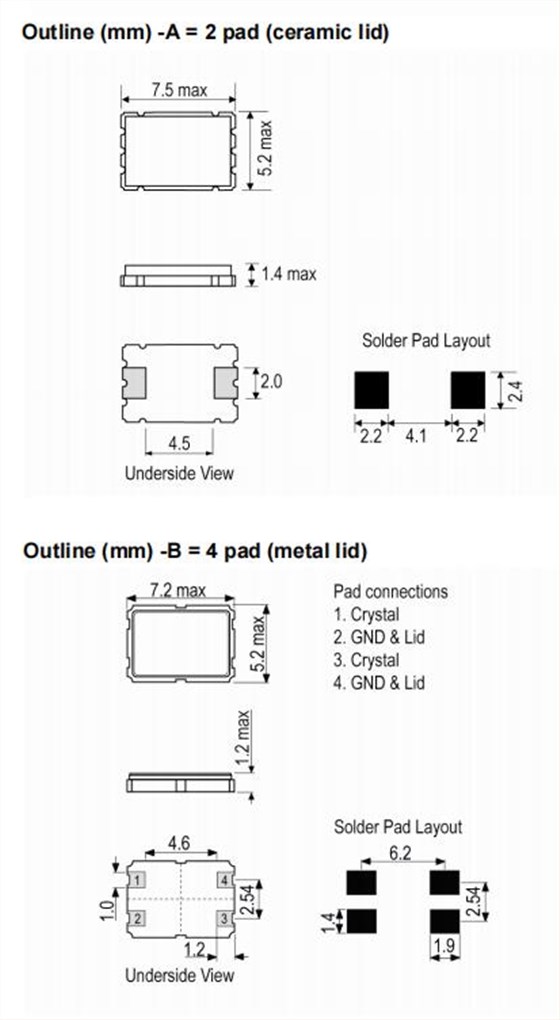

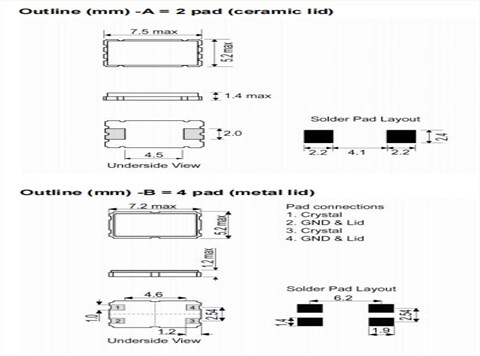

IQD晶振|LFXTAL026380Reel|12SMX-B晶振|7050mm晶振尺寸图
| 编码 | 型号 | 频率 | 频率容差 | 频率稳定性 | 工作温度 | 负载 |
| LFXTAL035561Cutt | 12SMX | 6.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 20.00pF |
| LFXTAL037076Bulk | 12SMX | 6.0MHz | ±30ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL053899Reel | 12SMX | 6.0MHz | ±30ppm | ±50ppm | -10°C to 60°C | 16.00pF |
| LFXTAL081961Reel | 12SMX | 6.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL083786Reel | 12SMX | 6.5536MHz | ±30ppm | ±30ppm | -40°C to 85°C | 10.00pF |
| LFXTAL058999Cutt | 12SMX | 7.3728MHz | ±20ppm | ±50ppm | -20°C to 70°C | 18.00pF |
| LFXTAL058999Reel | 12SMX | 7.3728MHz | ±20ppm | ±50ppm | -20°C to 70°C | 18.00pF |
| LFXTAL062701Bulk | 12SMX | 7.3728MHz | ±30ppm | ±50ppm | -40°C to 85°C | 12.00pF |
| LFXTAL062701Reel | 12SMX | 7.3728MHz | ±30ppm | ±50ppm | -40°C to 85°C | 12.00pF |
| LFXTAL063838Cutt | 12SMX | 7.3728MHz | ±20ppm | ±50ppm | -40°C to 125°C | 18.00pF |
| LFXTAL070694Bulk | 12SMX | 7.3728MHz | ±50ppm | ±50ppm | -40°C to 85°C | 16.00pF |
| LFXTAL026380Bulk | 12SMX | 8.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL026380Cutt | 12SMX | 8.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL026380Reel | 12SMX | 8.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL028138Reel | 12SMX | 8.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 16.00pF |
| LFXTAL033064Reel | 12SMX | 8.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 16.00pF |
| LFXTAL035430Bulk | 12SMX | 8.0MHz | ±30ppm | ±50ppm | -40°C to 85°C | 16.00pF |
| LFXTAL035430Cutt | 12SMX | 8.0MHz | ±30ppm | ±50ppm | -40°C to 85°C | 16.00pF |
| LFXTAL035983Reel | 12SMX | 8.0MHz | ±30ppm | ±50ppm | -40°C to 85°C | 12.00pF |
| LFXTAL036902Bulk | 12SMX | 8.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 12.00pF |
| LFXTAL050611Reel | 12SMX | 8.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 12.00pF |
| LFXTAL050644Reel | 12SMX | 8.0MHz | ±20ppm | ±20ppm | -20°C to 70°C | 75.00pF |
| LFXTAL054213Reel | 12SMX | 8.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 20.00pF |
| LFXTAL055050Bulk | 12SMX | 8.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 12.00pF |
| LFXTAL056516Bulk | 12SMX | 8.0MHz | ±30ppm | ±30ppm | -20°C to 70°C | 12.00pF |
| LFXTAL059082Cutt | 12SMX | 8.0MHz | ±20ppm | ±50ppm | -20°C to 70°C | 10.00pF |
| LFXTAL059082Reel | 12SMX | 8.0MHz | ±20ppm | ±50ppm | -20°C to 70°C | 10.00pF |
| LFXTAL061125Bulk | 12SMX | 8.0MHz | ±30ppm | ±30ppm | -20°C to 70°C | 18.00pF |
| LFXTAL078329Cutt | 12SMX | 8.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL082934Bulk | 12SMX | 8.0MHz | ±30ppm | ±30ppm | 0°C to 70°C | 10.00pF |
| LFXTAL083440Reel | 12SMX | 8.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 12.00pF |
| LFXTAL083524Reel | 12SMX | 8.0MHz | ±30ppm | ±50ppm | -40°C to 85°C | 20.00pF |
| LFXTAL079369Reel | 12SMX | 9.216MHz | ±50ppm | ±100ppm | -40°C to 85°C | 20.00pF |
| LFXTAL078330Cutt | 12SMX | 9.6MHz | ±10ppm | ±25ppm | -40°C to 85°C | 10.00pF |
| LFXTAL076072Bulk | 12SMX | 9.8MHz | ±30ppm | ±30ppm | -20°C to 70°C | 20.00pF |
| LFXTAL076296Reel | 12SMX | 9.8304MHz | ±30ppm | ±30ppm | -20°C to 70°C | 12.00pF |
| LFXTAL029106Reel | 12SMX | 10.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL030919Reel | 12SMX | 10.0MHz | ±50ppm | ±50ppm | -30°C to 80°C | 20.00pF |
| LFXTAL037108Reel | 12SMX | 10.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 12.00pF |
| LFXTAL052197Reel | 12SMX | 10.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 12.00pF |
| LFXTAL052921Cutt | 12SMX | 10.0MHz | ±30ppm | ±100ppm | -40°C to 85°C | 16.00pF |
| LFXTAL090515Reel | 12SMX | 10.0MHz | ±30ppm | ±50ppm | -40°C to 85°C | 12.00pF |
| LFXTAL090532Reel | 12SMX | 10.245MHz | ±20ppm | ±20ppm | -20°C to 70°C | 10.00pF |
| LFXTAL090533Reel | 12SMX | 10.245MHz | ±20ppm | ±20ppm | -20°C to 70°C | 30.00pF |
| LFXTAL026382Bulk | 12SMX | 11.0592MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL026382Cutt | 12SMX | 11.0592MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL026382Reel | 12SMX | 11.0592MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL029535Bulk | 12SMX | 11.0592MHz | ±50ppm | ±50ppm | -20°C to 70°C | 30.00pF |
| LFXTAL026384Bulk | 12SMX | 12.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL026384Reel | 12SMX | 12.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL027623Reel | 12SMX | 12.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL031880Bulk | 12SMX | 12.0MHz | ±30ppm | ±50ppm | -10°C to 60°C | 16.00pF |
| LFXTAL034834Bulk | 12SMX | 12.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 22.00pF |
| LFXTAL035467Bulk | 12SMX | 12.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL050609Bulk | 12SMX | 12.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 12.00pF |
| LFXTAL050609Reel | 12SMX | 12.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 12.00pF |
| LFXTAL057971Reel | 12SMX | 12.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 12.00pF |
| LFXTAL050352Bulk | 12SMX | 12.8MHz | ±10ppm | ±20ppm | -40°C to 85°C | 12.00pF |
| LFXTAL026386Bulk | 12SMX | 14.31818MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL026386Reel | 12SMX | 14.31818MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL035020Reel | 12SMX | 14.74546MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL020965Reel | 12SMX | 14.7456MHz | ±50ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL026388Bulk | 12SMX | 14.7456MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL026388Reel | 12SMX | 14.7456MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL060686Reel | 12SMX | 14.7456MHz | ±20ppm | ±50ppm | -20°C to 70°C | 18.00pF |
| LFXTAL062468Bulk | 12SMX | 14.7456MHz | ±30ppm | ±50ppm | -40°C to 85°C | 16.00pF |
| LFXTAL062696Reel | 12SMX | 14.7456MHz | ±50ppm | ±100ppm | -40°C to 85°C | 12.00pF |
| LFXTAL073093Cutt | 12SMX | 14.7456MHz | ±30ppm | ±50ppm | -40°C to 85°C | 18.00pF |
| LFXTAL081921Cutt | 12SMX | 14.7456MHz | ±20ppm | ±20ppm | -40°C to 85°C | 30.00pF |
| LFXTAL026392Bulk | 12SMX | 16.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL026392Cutt | 12SMX | 16.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL026392Reel | 12SMX | 16.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL034857Reel | 12SMX | 16.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 12.00pF |
| LFXTAL036703Bulk | 12SMX | 16.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL036703Cutt | 12SMX | 16.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL059444Bulk | 12SMX | 16.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 12.00pF |
| LFXTAL061480Bulk | 12SMX | 16.0MHz | ±30ppm | ±50ppm | -40°C to 85°C | 22.00pF |
| LFXTAL090604Reel | 12SMX | 16.2MHz | ±30ppm | ±50ppm | -40°C to 85°C | 16.00pF |
| LFXTAL034572Reel | 12SMX | 18.432MHz | ±50ppm | ±50ppm | -20°C to 70°C | 12.00pF |
| LFXTAL035742Bulk | 12SMX | 18.432MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL035742Cutt | 12SMX | 18.432MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL058902Bulk | 12SMX | 19.6608MHz | ±15ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL026394Bulk | 12SMX | 20.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL026394Cutt | 12SMX | 20.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL026394Reel | 12SMX | 20.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL036521Bulk | 12SMX | 20.0MHz | ±30ppm | ±50ppm | -40°C to 85°C | 16.00pF |
| LFXTAL036521Cutt | 12SMX | 20.0MHz | ±30ppm | ±50ppm | -40°C to 85°C | 16.00pF |
| LFXTAL055012Bulk | 12SMX | 20.0MHz | ±50ppm | ±50ppm | -20°C to 70°C | 12.00pF |
| LFXTAL083597Reel | 12SMX | 20.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 16.00pF |
| LFXTAL034854Reel | 12SMX | 24.0MHz | ±20ppm | ±50ppm | -20°C to 70°C | 18.00pF |
| LFXTAL059090Bulk | 12SMX | 24.0MHz | ±30ppm | ±30ppm | -20°C to 70°C | 16.00pF |
| LFXTAL066367Reel | 12SMX | 24.0MHz | ±30ppm | ±30ppm | -20°C to 70°C | 12.00pF |
| LFXTAL022248Reel | 12SMX | 24.576MHz | ±50ppm | ±50ppm | -10°C to 60°C | 16.00pF |
| LFXTAL026396Bulk | 12SMX | 24.576MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL026396Cutt | 12SMX | 24.576MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL026396Reel | 12SMX | 24.576MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL028567Reel | 12SMX | 25.0MHz | ±30ppm | ±50ppm | -10°C to 60°C | 20.00pF |
| LFXTAL028918Bulk | 12SMX | 25.0MHz | ±30ppm | ±50ppm | 0°C to 70°C | 20.00pF |
| LFXTAL028918Reel | 12SMX | 25.0MHz | ±30ppm | ±50ppm | 0°C to 70°C | 20.00pF |
| LFXTAL032328Bulk | 12SMX | 25.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL032762Cutt | 12SMX | 25.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 20.00pF |
| LFXTAL033425Reel | 12SMX | 25.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 20.00pF |
| LFXTAL033818Cutt | 12SMX | 25.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 12.00pF |
| LFXTAL033992Reel | 12SMX | 25.0MHz | ±50ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL034775Reel | 12SMX | 25.0MHz | ±30ppm | ±50ppm | -40°C to 85°C | 30.00pF |
| LFXTAL035638Cutt | 12SMX | 25.0MHz | ±100ppm | ±30ppm | -10°C to 60°C | 16.00pF |
| LFXTAL036368Cutt | 12SMX | 25.0MHz | ±30ppm | ±50ppm | -40°C to 85°C | 20.00pF |
| LFXTAL055488Bulk | 12SMX | 25.0MHz | ±20ppm | ±50ppm | -20°C to 70°C | 18.00pF |
| LFXTAL056906Bulk | 12SMX | 25.0MHz | ±20ppm | ±20ppm | -10°C to 60°C | 18.00pF |
| LFXTAL078331Cutt | 12SMX | 25.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL079086Cutt | 12SMX | 25.0MHz | ±25ppm | ±25ppm | -40°C to 85°C | 20.00pF |
| LFXTAL060693Bulk | 12SMX | 27.0MHz | ±20ppm | ±50ppm | -20°C to 70°C | 18.00pF |
| LFXTAL035375Cutt | 12SMX | 27.12MHz | ±100ppm | ±30ppm | -10°C to 60°C | 16.00pF |
| LFXTAL026504Bulk | 12SMX | 30.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL026504Reel | 12SMX | 30.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL034993Bulk | 12SMX | 30.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 12.50pF |
| LFXTAL063964Bulk | 12SMX | 30.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 12.00pF |
| LFXTAL034268Cutt | 12SMX | 32.768MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL034268Reel | 12SMX | 32.768MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL071673Cutt | 12SMX AUTO | 6.0MHz | ±50ppm | ±100ppm | -40°C to 125°C | 8.00pF |
| LFXTAL071673Reel | 12SMX AUTO | 6.0MHz | ±50ppm | ±100ppm | -40°C to 125°C | 8.00pF |
| LFXTAL072351Cutt | 12SMX AUTO | 6.0MHz | ±50ppm | ±100ppm | -40°C to 125°C | 18.00pF |
| LFXTAL072351Reel | 12SMX AUTO | 6.0MHz | ±50ppm | ±100ppm | -40°C to 125°C | 18.00pF |
| LFXTAL053699Cutt | 12SMX AUTO | 8.0MHz | ±50ppm | ±100ppm | -40°C to 125°C | 8.00pF |
| LFXTAL053699Reel | 12SMX AUTO | 8.0MHz | ±50ppm | ±100ppm | -40°C to 125°C | 8.00pF |
| LFXTAL056187Reel | 12SMX AUTO | 8.0MHz | ±50ppm | ±50ppm | -40°C to 125°C | 8.00pF |
| LFXTAL071664Reel | 12SMX AUTO | 8.0MHz | ±30ppm | ±50ppm | -40°C to 85°C | 8.00pF |
| LFXTAL072352Cutt | 12SMX AUTO | 8.0MHz | ±50ppm | ±100ppm | -40°C to 125°C | 18.00pF |
| LFXTAL072352Reel | 12SMX AUTO | 8.0MHz | ±50ppm | ±100ppm | -40°C to 125°C | 18.00pF |
| LFXTAL090563Reel | 12SMX AUTO | 10.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 18.00pF |
| LFXTAL071675Cutt | 12SMX AUTO | 11.0592MHz | ±50ppm | ±100ppm | -40°C to 125°C | 8.00pF |
| LFXTAL071675Reel | 12SMX AUTO | 11.0592MHz | ±50ppm | ±100ppm | -40°C to 125°C | 8.00pF |
| LFXTAL071676Cutt | 12SMX AUTO | 12.0MHz | ±50ppm | ±100ppm | -40°C to 125°C | 8.00pF |
| LFXTAL071676Reel | 12SMX AUTO | 12.0MHz | ±50ppm | ±100ppm | -40°C to 125°C | 8.00pF |
| LFXTAL071677Cutt | 12SMX AUTO | 14.7456MHz | ±50ppm | ±100ppm | -40°C to 125°C | 8.00pF |
| LFXTAL071677Reel | 12SMX AUTO | 14.7456MHz | ±50ppm | ±100ppm | -40°C to 125°C | 8.00pF |
| LFXTAL050310Bulk | 12SMX AUTO | 16.0MHz | ±50ppm | ±100ppm | -40°C to 125°C | 8.00pF |
| LFXTAL050310Reel | 12SMX AUTO | 16.0MHz | ±50ppm | ±100ppm | -40°C to 125°C | 8.00pF |
| LFXTAL050311Cutt | 12SMX AUTO | 20.0MHz | ±50ppm | ±100ppm | -40°C to 125°C | 8.00pF |
| LFXTAL050311Reel | 12SMX AUTO | 20.0MHz | ±50ppm | ±100ppm | -40°C to 125°C | 8.00pF |
| LFXTAL023899Bulk | 87SMX | 3.6864MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL023899Cutt | 87SMX | 3.6864MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL023899Reel | 87SMX | 3.6864MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL052142Bulk | 87SMX | 3.6864MHz | ±50ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL052142Reel | 87SMX | 3.6864MHz | ±50ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL056684Bulk | 87SMX | 3.6864MHz | ±50ppm | ±50ppm | -40°C to 85°C | 16.00pF |
| LFXTAL056684Reel | 87SMX | 3.6864MHz | ±50ppm | ±50ppm | -40°C to 85°C | 16.00pF |
| LFXTAL073137Reel | 87SMX | 3.6864MHz | ±50ppm | ±50ppm | -40°C to 85°C | 30.00pF |
| LFXTAL073293Cutt | 87SMX | 3.6864MHz | ±100ppm | ±150ppm | -40°C to 90°C | 16.00pF |
| LFXTAL022544Reel | 87SMX | 4.0MHz | ±50ppm | ±100ppm | -40°C to 90°C | 30.00pF |
| LFXTAL029774Bulk | 87SMX | 4.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 30.00pF |
| LFXTAL029774Cutt | 87SMX | 4.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 30.00pF |
| LFXTAL029774Reel | 87SMX | 4.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 30.00pF |
| LFXTAL057771Cutt | 87SMX | 4.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 30.00pF |
| LFXTAL057801Reel | 87SMX | 4.0MHz | ±30ppm | ±50ppm | -40°C to 85°C | 20.00pF |
| LFXTAL058357Bulk | 87SMX | 4.0MHz | ±15ppm | ±100ppm | -55°C to 105°C | 30.00pF |
| LFXTAL058357Cutt | 87SMX | 4.0MHz | ±15ppm | ±100ppm | -55°C to 105°C | 30.00pF |
| LFXTAL058357Reel | 87SMX | 4.0MHz | ±15ppm | ±100ppm | -55°C to 105°C | 30.00pF |
| LFXTAL073195Reel | 87SMX | 4.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 15.00pF |
| LFXTAL073201Cutt | 87SMX | 4.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 16.00pF |
| LFXTAL073239Bulk | 87SMX | 4.0MHz | ±30ppm | ±100ppm | -40°C to 85°C | 30.00pF |
| LFXTAL073239Reel | 87SMX | 4.0MHz | ±30ppm | ±100ppm | -40°C to 85°C | 30.00pF |
| LFXTAL073445Reel | 87SMX | 4.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 10.00pF |
| LFXTAL076128Reel | 87SMX | 4.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 18.00pF |
| LFXTAL077252Cutt | 87SMX | 4.0MHz | ±50ppm | ±50ppm | -20°C to 70°C | 30.00pF |
| LFXTAL083532Cutt | 87SMX | 4.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 20.00pF |
| LFXTAL083532Reel | 87SMX | 4.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 20.00pF |
| LFXTAL083563Reel | 87SMX | 4.0MHz | ±30ppm | ±50ppm | -10°C to 60°C | 16.00pF |
| LFXTAL073237Cutt | 87SMX | 4.096MHz | ±100ppm | ±100ppm | -40°C to 85°C | 30.00pF |
| LFXTAL023399Bulk | 87SMX | 4.9152MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL023399Cutt | 87SMX | 4.9152MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL023399Reel | 87SMX | 4.9152MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL073191Cutt | 87SMX | 4.9152MHz | ±50ppm | ±100ppm | -40°C to 85°C | 16.00pF |
| LFXTAL032749Reel | 87SMX | 6.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 30.00pF |
| LFXTAL037119Bulk | 87SMX | 6.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 30.00pF |
| LFXTAL037119Reel | 87SMX | 6.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 30.00pF |
| LFXTAL083533Reel | 87SMX | 6.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 20.00pF |
| LFXTAL083535Cutt | 87SMX | 6.144MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083535Reel | 87SMX | 6.144MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL023628Bulk | 87SMX | 7.3728MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL023628Reel | 87SMX | 7.3728MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL065699Cutt | 87SMX | 7.902708MHz | ±100ppm | ±100ppm | -40°C to 85°C | 30.00pF |
| LFXTAL065699Reel | 87SMX | 7.902708MHz | ±100ppm | ±100ppm | -40°C to 85°C | 30.00pF |
| LFXTAL023401Bulk | 87SMX | 8.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL023401Cutt | 87SMX | 8.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL023401Reel | 87SMX | 8.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL056525Bulk | 87SMX | 8.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 30.00pF |
| LFXTAL059455Cutt | 87SMX | 8.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 16.00pF |
| LFXTAL059455Reel | 87SMX | 8.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 16.00pF |
| LFXTAL076060Reel | 87SMX | 8.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | SR |
| LFXTAL083499Reel | 87SMX | 8.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083528Cutt | 87SMX | 8.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083528Reel | 87SMX | 8.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL033471Reel | 87SMX | 8.192MHz | ±30ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL033867Bulk | 87SMX | 9.8304MHz | ±30ppm | ±50ppm | -20°C to 70°C | 18.00pF |
| LFXTAL083498Reel | 87SMX | 9.8304MHz | ±50ppm | ±100ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083529Cutt | 87SMX | 9.8304MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083529Reel | 87SMX | 9.8304MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL023561Cutt | 87SMX | 10.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 20.00pF |
| LFXTAL023561Reel | 87SMX | 10.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 20.00pF |
| LFXTAL073675Reel | 87SMX | 10.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 10.00pF |
| LFXTAL083536Cutt | 87SMX | 10.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL023372Cutt | 87SMX | 11.0592MHz | ±50ppm | ±100ppm | -20°C to 70°C | 20.00pF |
| LFXTAL023372Reel | 87SMX | 11.0592MHz | ±50ppm | ±100ppm | -20°C to 70°C | 20.00pF |
| LFXTAL023524Reel | 87SMX | 11.0592MHz | ±50ppm | ±100ppm | -20°C to 70°C | 30.00pF |
| LFXTAL076416Reel | 87SMX | 11.0592MHz | ±50ppm | ±50ppm | -40°C to 85°C | 10.00pF |
| LFXTAL083537Cutt | 87SMX | 11.0592MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083537Reel | 87SMX | 11.0592MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL050029Reel | 87SMX | 12.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 20.00pF |
| LFXTAL056949Bulk | 87SMX | 12.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL056949Cutt | 87SMX | 12.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL056949Reel | 87SMX | 12.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL072590Cutt | 87SMX | 12.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 16.00pF |
| LFXTAL072591Reel | 87SMX | 12.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 16.00pF |
| LFXTAL075188Bulk | 87SMX | 12.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 30.00pF |
| LFXTAL075188Reel | 87SMX | 12.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 30.00pF |
| LFXTAL077403Cutt | 87SMX | 12.0MHz | ±10ppm | ±30ppm | -40°C to 85°C | 16.00pF |
| LFXTAL083497Reel | 87SMX | 12.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083530Reel | 87SMX | 12.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL060787Cutt | 87SMX | 14.7456MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL060787Reel | 87SMX | 14.7456MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL023688Cutt | 87SMX | 16.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 20.00pF |
| LFXTAL032756Reel | 87SMX | 16.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL033689Reel | 87SMX | 16.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | SR |
| LFXTAL050025Reel | 87SMX | 16.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 30.00pF |
| LFXTAL052725Bulk | 87SMX | 16.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | SR |
| LFXTAL052725Cutt | 87SMX | 16.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | SR |
| LFXTAL052725Reel | 87SMX | 16.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | SR |
| LFXTAL058519Cutt | 87SMX | 16.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 20.00pF |
| LFXTAL058519Reel | 87SMX | 16.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 20.00pF |
| LFXTAL067749Bulk | 87SMX | 16.0MHz | ±30ppm | ±50ppm | -40°C to 85°C | 30.00pF |
| LFXTAL073118Cutt | 87SMX | 16.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL073118Reel | 87SMX | 16.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL083496Reel | 87SMX | 16.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083531Cutt | 87SMX | 16.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083531Reel | 87SMX | 16.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL023496Bulk | 87SMX | 18.432MHz | ±50ppm | ±100ppm | -20°C to 70°C | 20.00pF |
| LFXTAL023496Cutt | 87SMX | 18.432MHz | ±50ppm | ±100ppm | -20°C to 70°C | 20.00pF |
| LFXTAL023496Reel | 87SMX | 18.432MHz | ±50ppm | ±100ppm | -20°C to 70°C | 20.00pF |
| LFXTAL083539Cutt | 87SMX | 19.6608MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL055924Bulk | 87SMX | 20.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL055924Cutt | 87SMX | 20.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL055924Reel | 87SMX | 20.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL083625Cutt | 87SMX | 20.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083625Reel | 87SMX | 20.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL072723Cutt | 87SMX | 22.1184MHz | ±50ppm | ±100ppm | -40°C to 85°C | 16.00pF |
| LFXTAL083534Cutt | 87SMX | 22.1184MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083534Reel | 87SMX | 22.1184MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL058564Reel | 87SMX | 24.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL065724Cutt | 87SMX | 25.0MHz | ±50ppm | ±100ppm | -10°C to 60°C | 16.00pF |
| LFXTAL070359Bulk | 4SMX | 8.192MHz | ±50ppm | ±50ppm | -10°C to 60°C | 10.00pF |
| LFXTAL029659Reel | 4SMX | 14.7456MHz | ±50ppm | ±100ppm | -10°C to 60°C | 30.00pF |
| LFXTAL055576Bulk | 4SMX | 48.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL055576Reel | 4SMX | 48.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL034565Reel | 3SMX | 13.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 16.00pF |
| LFXTAL030778Reel | 3SMX | 25.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 20.00pF |
| LFXTAL030277Bulk | 14SMX | 8.0MHz | ±50ppm | ±50ppm | -40°C to 90°C | 30.00pF |
| LFXTAL034888Reel | 14SMX | 8.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 30.00pF |
| LFXTAL036947Reel | 14SMX | 8.0MHz | ±30ppm | ±50ppm | -40°C to 85°C | 16.00pF |
| LFXTAL017702Reel | 14SMX | 10.0MHz | ±100ppm | ±100ppm | -20°C to 70°C | 30.00pF |
| LFXTAL035488Bulk | 14SMX | 12.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 10.00pF |
| LFXTAL033277Bulk | 14SMX | 13.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 10.00pF |
| LFXTAL037013Reel | 14SMX | 16.0MHz | ±25ppm | ±50ppm | -40°C to 85°C | 20.00pF |
| LFXTAL033276Bulk | 14SMX | 24.576MHz | ±30ppm | ±30ppm | -40°C to 85°C | 20.00pF |
| LFXTAL016263Bulk | 14SMX | 25.0MHz | ±30ppm | ±50ppm | -10°C to 60°C | 12.00pF |
| LFXTAL059214Bulk | 14SMX | 25.0MHz | ±10ppm | ±15ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083623Cutt | 14SMX | 74.25MHz | ±20ppm | ±20ppm | -40°C to 85°C | 15.00pF |
| LFXTAL024635Bulk | 6SMX | 3.6864MHz | ±50ppm | ±50ppm | -10°C to 60°C | 16.00pF |
| LFXTAL024334Reel | 6SMX | 4.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 30.00pF |
| LFXTAL051627Reel | 6SMX | 5.0MHz | ±50ppm | ±50ppm | -20°C to 70°C | 12.00pF |
| LFXTAL060146Reel | 6SMX | 7.68MHz | ±30ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL027630Reel | 6SMX | 8.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 22.00pF |
| LFXTAL026511Reel | 6SMX | 16.0MHz | ±30ppm | ±50ppm | -10°C to 60°C | 16.00pF |
| LFXTAL027641Bulk | 6SMX | 16.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
SEIKO晶振,石英晶振,SC-32T晶振
爱普生晶振,石英晶振,贴片晶振,FC-12M晶振,2012晶振,X1A000061000200晶振
爱普生晶振,石英晶振,贴片晶振,FC-12D晶振,32.768K四脚贴片晶振,FC-12D 32.7680KA-AG8
爱普生晶振,石英晶振,贴片晶振,MC-30A晶振,Q13MC30A2000800晶振
KDS晶振,石英晶振,贴片晶振,DSX211G晶振
KDS晶振,石英晶振,贴片晶振,DSX321SH晶振
KDS晶振,石英晶振,贴片晶振,DSX530GA晶振
KDS晶振,石英晶振,贴片晶振,DSX1612SL晶振
KDS晶振,石英晶振,贴片晶振,DST520晶振
爱普生晶振,石英晶振,贴片晶振,MC-146晶振,Q13MC1462000200晶振
