MTRONPTI晶振,M12532DG12-19.200000,3225mm,6G接收器晶振,美国MTRONPTI晶振,M1253石英晶体谐振器,进口无源晶振,M12532DG12-19.200000晶振,3225mm晶振,四脚贴片晶振,频率19.2MHz,负载12pF,频率公差10ppm,工作温度-40~85°C,高稳定性晶振,无铅环保晶振,6G接收器晶振,手持电子设备晶振,全球定位系统晶振,便携式仪器晶振.
MTRONPTI晶振,M12532DG12-19.200000,3225mm,6G接收器晶振特点：
•超微型尺寸
•磁带和卷轴
•无铅陶瓷封装-接缝密封
MTRONPTI晶振,M12532DG12-19.200000,3225mm,6G接收器晶振参数表
| 项目 | 符号 | 数值 |
| 频率 | f0 | 19.2MHz |
| 频率公差 | △f/f0 | ±10ppm |
| 频率稳定性 | f_tol |
±20ppm |
| 负载电容 | CL | 12pF |
|
并联电容 |
Co |
3pFMax |
| 工作温度 | TOPR | -40℃～＋85℃ |
| 保存温度 | TSTR | -55℃～＋125℃ |
| 串联阻力 | R1 | 80Ω Max. |
| 驱动级别 | DL | 300μWMax |
| 老化 | f_aging | ±5ppm/year |

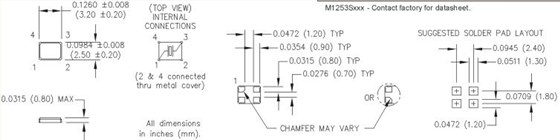

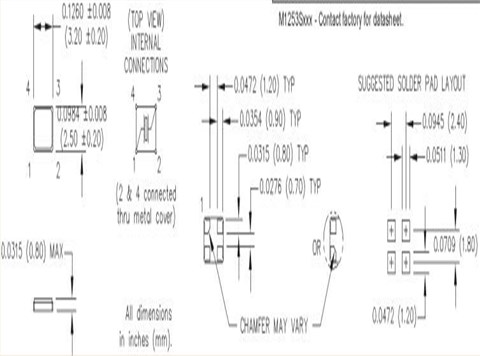

MTRONPTI晶振,M12532DG12-19.200000,3225mm,6G接收器晶振尺寸图
| 原厂编码 | 型号 | 频率稳定性 | 频率(MHz) | 频率容差 | 封装 | 工作温度 | 负载 |
| M12531DD 25.000000 | M1253 Series | ±10 ppm | 25 | ±10 ppm | 2.5 x 3.2 mm | -10?C to +70?C | 18 pF |
| M12531DD20 25.000000 | M1253 Series | ±10 ppm | 25 | ±10 ppm | 2.5 x 3.2 mm | -10?C to +70?C | 20 pF |
| M12531JJ12 50.000000 | M1253 Series | ±30 ppm | 50 | ±30 ppm | 2.5 x 3.2 mm | -10?C to +70?C | 12 pF |
| M12531JM12 12.000000 | M1253 Series | ±50 ppm | 12 | ±30 ppm | 2.5 x 3.2 mm | -10?C to +70?C | 12 pF |
| M12531JM12 25.000000 | M1253 Series | ±50 ppm | 25 | ±30 ppm | 2.5 x 3.2 mm | -10?C to +70?C | 12 pF |
| M12531JM20 24.000000 | M1253 Series | ±50 ppm | 24 | ±30 ppm | 2.5 x 3.2 mm | -10?C to +70?C | 20 pF |
| M12531MM16 30.000000 | M1253 Series | ±50 ppm | 30 | ±50 ppm | 2.5 x 3.2 mm | -10?C to +70?C | 16 pF |
| M12532DE09 24.000000 | M1253 Series | ±15 ppm | 24 | ±10 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 9 pF |
| M12532DG 24.000000 | M1253 Series | ±20 ppm | 24 | ±10 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 18 pF |
| M12532DG08 25.000000 | M1253 Series | ±20 ppm | 25 | ±10 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 8 pF |
| M12532DG12 19.200000 | M1253 Series | ±20 ppm | 19.2 | ±10 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 12 pF |
| M12532DG13 24.000000 | M1253 Series | ±20 ppm | 24 | ±10 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 13 pF |
| M12532DG15 20.000000 | M1253 Series | ±20 ppm | 20 | ±10 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 15 pF |
| M12532DG16 14.318180 | M1253 Series | ±20 ppm | 14.3182 | ±10 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 16 pF |
| M12532DG16 24.000000 | M1253 Series | ±20 ppm | 24 | ±10 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 16 pF |
| M12532DG16 25.000000 | M1253 Series | ±20 ppm | 15.36 | ±10 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 16 pF |
| M12532DG16 50.000000 | M1253 Series | ±20 ppm | 50 | ±10 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 16 pF |
| M12532DG22 30.000000 | M1253 Series | ±20 ppm | 30 | ±10 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 22 pF |
| M12532GG 25.000000 | M1253 Series | ±20 ppm | 25 | ±20 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 18 pF |
| M12532GG 50.000000 | M1253 Series | ±20 ppm | 50 | ±20 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 18 pF |
| M12532GJ 24.000000 | M1253 Series | ±30 ppm | 24 | ±20 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 18 pF |
| M12532GJ 25.000000 | M1253 Series | ±30 ppm | 25 | ±20 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 18 pF |
| M12532HH 14.318180 | M1253 Series | ±25 ppm | 14.3182 | ±25 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 18 pF |
| M12532HH 16.000000 | M1253 Series | ±25 ppm | 16 | ±25 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 18 pF |
| M12532HH 25.000000 | M1253 Series | ±25 ppm | 25 | ±25 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 18 pF |
| M12532HH 27.000000 | M1253 Series | ±25 ppm | 27 | ±25 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 18 pF |
| M12532HH 30.000000 | M1253 Series | ±25 ppm | 30 | ±25 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 18 pF |
| M12532HH 50.000000 | M1253 Series | ±25 ppm | 50 | ±25 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 18 pF |
| M12532JJ 25.000000 | M1253 Series | ±30 ppm | 25 | ±30 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 18 pF |
| M12532JJ 27.000000 | M1253 Series | ±30 ppm | 27 | ±30 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 18 pF |
| M12532JJ08 16.384000 | M1253 Series | ±30 ppm | 16.384 | ±30 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 8 pF |
| M12532JJ08 25.000000 | M1253 Series | ±30 ppm | 25 | ±30 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 8 pF |
| M12532JJ09 50.000000 | M1253 Series | ±30 ppm | 50 | ±30 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 9 pF |
| M12532JM 15.360000 | M1253 Series | ±50 ppm | 15.36 | ±30 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 18 pF |
| M12532JM 27.000000 | M1253 Series | ±50 ppm | 27 | ±30 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 18 pF |
| M12532JM 29.491200 | M1253 Series | ±50 ppm | 29.4912 | ±30 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 18 pF |
| M12532JM 40.000000 | M1253 Series | ±50 ppm | 40 | ±30 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 18 pF |
| M12532JM20 25.000000 | M1253 Series | ±50 ppm | 25 | ±30 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 20 pF |
| M12536GJ 25.000000 | M1253 Series | ±30 ppm | 25 | ±20 ppm | 2.5 x 3.2 mm | -20?C to +70?C | 18 pF |
| M12536JM 24.000000 | M1253 Series | ±50 ppm | 24 | ±30 ppm | 2.5 x 3.2 mm | -20?C to +70?C | 18 pF |
| M12536JM 25.000000 | M1253 Series | ±50 ppm | 25 | ±30 ppm | 2.5 x 3.2 mm | -20?C to +70?C | 18 pF |
| M12536JM 50.000000 | M1253 Series | ±50 ppm | 50 | ±30 ppm | 2.5 x 3.2 mm | -20?C to +70?C | 18 pF |
| M1252S039 16.000000 | M1252 Series | ±30 ppm | 16 | ±20 ppm | 2.0 x 2.5 mm | -10?C to +60?C | 10 pF |
| M1252S040 26.000000 | M1252 Series | ±10 ppm | 26 | ±10 ppm | 2.0 x 2.5 mm | -10?C to +60?C | 15 pF |
| M1252S043 32.000000 | M1252 Series | ±20 ppm | 32 | ±10 ppm | 2.5 x 2.0 mm | -40?C to +85?C | 10 pF |
| M1252S049 16.000000 | M1252 Series | ±25 ppm | 16 | ±15 ppm | 2.5 x 2.0 mm | -40?C to +85?C | 8 pF |
| M1253S072 25.000000 | M1253 Series | ±20 ppm | 25 | ±30 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 18 pF |
| M1253S107 52.000000 | M1253 Series | ±15 ppm | 52 | ±10 ppm | 2.5 x 3.2 mm | -20?C to +70?C | 20 pF |
| M1253S108 24.000000 | M1253 Series | ±50 ppm | 24 | ±30 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 32 pF |
| M1253S116 16.000000 | M1253 Series | ±10 ppm, ±15 ppm | 16 | ±10 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 10 pF |
| M1253S162 24.000000 | M1253 Series | ±15 ppm | 24 | ±15 ppm | 2.5 x 3.2 mm | -30?C to +85?C | 20 pF |
| M1253S164 48.000000 | M1253 Series | ±10 ppm | 48 | ±10 ppm | 2.5 x 3.2 mm | -20?C to +70?C | 10 pF |
| M1253S204 25.000000 | M1253 Series | ±100 ppm | 25 | ±50 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 10 pF |
| M1253S207 20.736000 | M1253 Series | ±10 ppm | 20.736 | ±10 ppm | 2.5 x 3.2 mm | -10?C to +60?C | 8 pF |
| M1253S208 26.000000 | M1253 Series | ±9 ppm | 26 | ±10 ppm | 2.5 x 3.2 mm | -20?C to +75?C | 9 pF |
| M1253S211 25.000000 | M1253 Series | ±20 ppm | 25 | ±20 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 10 pF |
| M1253S218 48.000000 | M1253 Series | ±30 ppm | 48 | ±30 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 12.5 pF |
| M1253S219 25.000000 | M1253 Series | ±20 ppm | 25 | ±20 ppm | 2.5 x 3.2 mm | -20?C to +70?C | 18 pF |
| M1253S220 48.000000 | M1253 Series | ±15 ppm | 48 | ±10 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 8 pF |
| M1253S224 32.000000 | M1253 Series | ±20 ppm | 32 | ±10 ppm | 2.5 x 3.2 mm | -10?C to +50?C | 10 pF |
| M1253S225 26.000000 | M1253 Series | ±10 ppm | 26 | ±10 ppm | 2.5 x 3.2 mm | -10?C to +50?C | 10 pF |
| M1253S226 12.000000 | M1253 Series | ±20 ppm | 12 | ±20 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 18 pF |
| M1253S227 25.000000 | M1253 Series | ±25 ppm | 25 | ±10 ppm | 2.5 x 3.2 mm | -20?C to +70?C | 18 pF |
| M1253S229 48.000000 | M1253 Series | ±30 ppm | 48 | ±20 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 8 pF |
| M1253S230 25.000000 | M1253 Series | ±30 ppm | 25 | ±30 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 18 pF |
