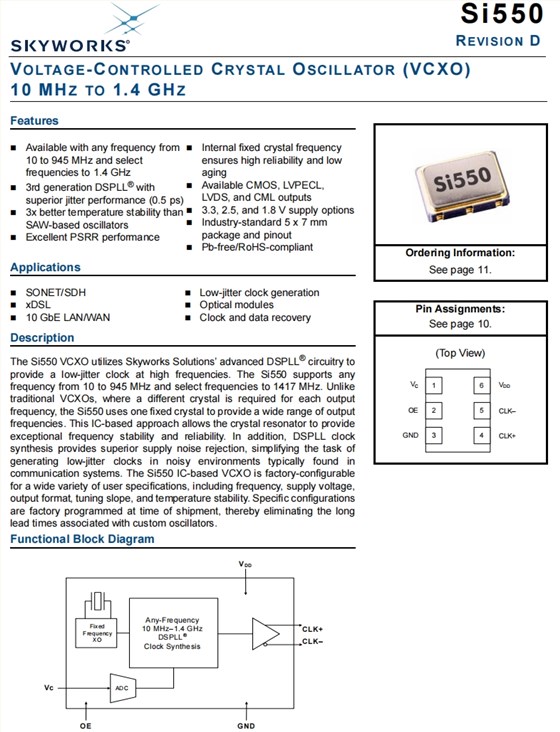

Skyworks晶体,550FD74M2500DGR,7050贴片晶振,6G低抖动晶振特点
•可与任意速率输出频率从10MHz到945MHz，频率选择1.4 GHz
•第三代DSPLL®具有卓越的抖动性能（0.5ps）
•频率稳定性优于SAW-based振荡器
•优异的PSRR性能
•内部固定晶频，可靠性高，老化低
•可用CMOS, LVPECL，LVDS和CML输出
•3.3,2.5 V和1.8V电源选项
•工业标准的5 × 7mm封装和引脚
•无铅，符合RoHS标准
Skyworks晶体,550FD74M2500DGR,7050贴片晶振,6G低抖动晶振规格表
项目
符号
规格说明
条件
额定频率
f_nom
74.25MHz
请联系我们以便获取其它可用频率的相关信息
电源电压
Vcc
2.5V
储存温度
T_stg
-55℃~+125℃
裸存
工作温度
T_use
-40℃~ +85℃
频率稳定性
f_tol
±50 ppm
+25℃,超出标准的规格说明请联系我们以便获取相关信息
电源电流
IDD
108mA Max
LVDS
对称性（占空比）
SYM
45%~55%
在输出交叉点
输出电压
VOD
0.9VPP Max
LVDS
VO
1.275V Max
输入电压
VIH
0.75%×VDD Min
VIL
0.5VMax
上升下降时间
tr/tf
350ps Max
LVDS
起始时间
t str
10ms Max
相位抖动
tpj
0.63ps Max
LVDS

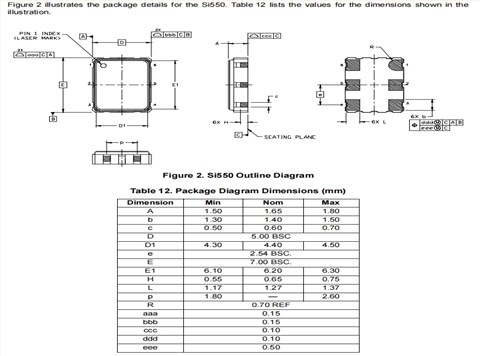

Skyworks晶体,550FD74M2500DGR,7050贴片晶振,6G低抖动晶振尺寸图
| 原厂编码 | 品牌 | 型号 | 频率 | 输出 | 电压 | 频率稳定性 | 工作温度 |
| 550BJ25M0000DG | Skyworks Solutions Inc. | Si550 | 25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AD10M0000DGR | Skyworks Solutions Inc. | Si550 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD12M5458DGR | Skyworks Solutions Inc. | Si550 | 12.5458 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD24M5760DGR | Skyworks Solutions Inc. | Si550 | 24.576 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD27M0000DGR | Skyworks Solutions Inc. | Si550 | 27 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD94M0000DGR | Skyworks Solutions Inc. | Si550 | 94 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BD62M5000DGR | Skyworks Solutions Inc. | Si550 | 62.5 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550FD74M2500DGR | Skyworks Solutions Inc. | Si550 | 74.25 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 550RC12M2230DGR | Skyworks Solutions Inc. | Si550 | 12.223 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 550AJ873M515DG | Skyworks Solutions Inc. | Si550 | 873.515 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ873M515DGR | Skyworks Solutions Inc. | Si550 | 873.515 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550FG125M000DG | Skyworks Solutions Inc. | Si550 | 125 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 550FG125M000DGR | Skyworks Solutions Inc. | Si550 | 125 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 550AD10M0000DG | Skyworks Solutions Inc. | Si550 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD12M5458DG | Skyworks Solutions Inc. | Si550 | 12.5458 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD24M5760DG | Skyworks Solutions Inc. | Si550 | 24.576 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD27M0000DG | Skyworks Solutions Inc. | Si550 | 27 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD94M0000DG | Skyworks Solutions Inc. | Si550 | 94 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BD62M5000DG | Skyworks Solutions Inc. | Si550 | 62.5 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550FD74M2500DG | Skyworks Solutions Inc. | Si550 | 74.25 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 550RC12M2230DG | Skyworks Solutions Inc. | Si550 | 12.223 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 550AJ40M0000DGR | Skyworks Solutions Inc. | Si550 | 40 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE19M2000DGR | Skyworks Solutions Inc. | Si550 | 19.2 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE19M2000DG | Skyworks Solutions Inc. | Si550 | 19.2 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ40M0000DG | Skyworks Solutions Inc. | Si550 | 40 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AC1000M00DG | Skyworks Solutions Inc. | Si550 | 1 GHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC866M000DG | Skyworks Solutions Inc. | Si550 | 866 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD000389DG | Skyworks Solutions Inc. | Si550 | 993.409691 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD1000M00DG | Skyworks Solutions Inc. | Si550 | 1 GHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD983M040DG | Skyworks Solutions Inc. | Si550 | 983.04 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AF1000M00DG | Skyworks Solutions Inc. | Si550 | 1 GHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BC1000M00DG | Skyworks Solutions Inc. | Si550 | 1 GHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BF1000M00DG | Skyworks Solutions Inc. | Si550 | 1 GHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BF1400M00DG | Skyworks Solutions Inc. | Si550 | 1.4 GHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550EC892M933DG | Skyworks Solutions Inc. | Si550 | 892.933 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 550MC1150M00DG | Skyworks Solutions Inc. | Si550 | 1150 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550MC1200M00DG | Skyworks Solutions Inc. | Si550 | 1200 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550MD1100M00DG | Skyworks Solutions Inc. | Si550 | 1.1 GHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550MD1150M00DG | Skyworks Solutions Inc. | Si550 | 1150 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550MD1200M00DG | Skyworks Solutions Inc. | Si550 | 1200 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550NC840M000DG | Skyworks Solutions Inc. | Si550 | 840 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AE1000M00DGR | Skyworks Solutions Inc. | Si550 | 1 GHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE1228M80DGR | Skyworks Solutions Inc. | Si550 | 1.2288 GHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE840M000DGR | Skyworks Solutions Inc. | Si550 | 840 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE884M736DGR | Skyworks Solutions Inc. | Si550 | 884.736 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE970M000DGR | Skyworks Solutions Inc. | Si550 | 970 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE983M040DGR | Skyworks Solutions Inc. | Si550 | 983.04 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AH1000M00DGR | Skyworks Solutions Inc. | Si550 | 1 GHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ000389DGR | Skyworks Solutions Inc. | Si550 | 993.409691 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ004643DGR | Skyworks Solutions Inc. | Si550 | 873.51542 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ004645DGR | Skyworks Solutions Inc. | Si550 | 1024.23965 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ004648DGR | Skyworks Solutions Inc. | Si550 | 1033.344 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ1000M00DGR | Skyworks Solutions Inc. | Si550 | 1 GHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ1134M00DGR | Skyworks Solutions Inc. | Si550 | 1.134 GHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ1200M00DGR | Skyworks Solutions Inc. | Si550 | 1.2 GHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ1213M00DGR | Skyworks Solutions Inc. | Si550 | 1.213 GHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ881M280DGR | Skyworks Solutions Inc. | Si550 | 881.28 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ983M040DGR | Skyworks Solutions Inc. | Si550 | 983.04 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM000389DGR | Skyworks Solutions Inc. | Si550 | 993.409691 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM004642DGR | Skyworks Solutions Inc. | Si550 | 1024.2396 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM004643DGR | Skyworks Solutions Inc. | Si550 | 873.51542 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM1050M00DGR | Skyworks Solutions Inc. | Si550 | 1.05 GHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM1280M00DGR | Skyworks Solutions Inc. | Si550 | 1.28 GHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM840M000DGR | Skyworks Solutions Inc. | Si550 | 840 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BE000325DGR | Skyworks Solutions Inc. | Si550 | 1333.02857 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BM000325DGR | Skyworks Solutions Inc. | Si550 | 1333.02857 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BM1000M00DGR | Skyworks Solutions Inc. | Si550 | 1 GHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BM1134M00DGR | Skyworks Solutions Inc. | Si550 | 1.134 GHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BM1400M00DGR | Skyworks Solutions Inc. | Si550 | 1.4 GHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550MH1100M00DGR | Skyworks Solutions Inc. | Si550 | 1.1 GHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550MM1000M00DGR | Skyworks Solutions Inc. | Si550 | 1 GHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550MM912M000DGR | Skyworks Solutions Inc. | Si550 | 912 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550NE1000M00DGR | Skyworks Solutions Inc. | Si550 | 1 GHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE1000M00DG | Skyworks Solutions Inc. | Si550 | 1 GHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE1228M80DG | Skyworks Solutions Inc. | Si550 | 1.2288 GHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE840M000DG | Skyworks Solutions Inc. | Si550 | 840 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE884M736DG | Skyworks Solutions Inc. | Si550 | 884.736 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE970M000DG | Skyworks Solutions Inc. | Si550 | 970 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE983M040DG | Skyworks Solutions Inc. | Si550 | 983.04 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AH1000M00DG | Skyworks Solutions Inc. | Si550 | 1 GHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ000389DG | Skyworks Solutions Inc. | Si550 | 993.409691 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ004643DG | Skyworks Solutions Inc. | Si550 | 873.51542 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ004645DG | Skyworks Solutions Inc. | Si550 | 1024.23965 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ004648DG | Skyworks Solutions Inc. | Si550 | 1033.344 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ1000M00DG | Skyworks Solutions Inc. | Si550 | 1 GHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ1134M00DG | Skyworks Solutions Inc. | Si550 | 1.134 GHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ1200M00DG | Skyworks Solutions Inc. | Si550 | 1.2 GHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ1213M00DG | Skyworks Solutions Inc. | Si550 | 1.213 GHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ881M280DG | Skyworks Solutions Inc. | Si550 | 881.28 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ983M040DG | Skyworks Solutions Inc. | Si550 | 983.04 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM000389DG | Skyworks Solutions Inc. | Si550 | 993.409691 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM004642DG | Skyworks Solutions Inc. | Si550 | 1024.2396 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM004643DG | Skyworks Solutions Inc. | Si550 | 873.51542 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM1050M00DG | Skyworks Solutions Inc. | Si550 | 1.05 GHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM1280M00DG | Skyworks Solutions Inc. | Si550 | 1.28 GHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM840M000DG | Skyworks Solutions Inc. | Si550 | 840 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BE000325DG | Skyworks Solutions Inc. | Si550 | 1333.02857 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BM000325DG | Skyworks Solutions Inc. | Si550 | 1333.02857 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BM1000M00DG | Skyworks Solutions Inc. | Si550 | 1 GHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BM1134M00DG | Skyworks Solutions Inc. | Si550 | 1.134 GHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BM1400M00DG | Skyworks Solutions Inc. | Si550 | 1.4 GHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550MH1100M00DG | Skyworks Solutions Inc. | Si550 | 1.1 GHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550MM1000M00DG | Skyworks Solutions Inc. | Si550 | 1 GHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550MM912M000DG | Skyworks Solutions Inc. | Si550 | 912 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550NE1000M00DG | Skyworks Solutions Inc. | Si550 | 1 GHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AF153M600DGR | Skyworks Solutions Inc. | Si550 | 153.6 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC1000M00DGR | Skyworks Solutions Inc. | Si550 | 1 GHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC866M000DGR | Skyworks Solutions Inc. | Si550 | 866 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD000389DGR | Skyworks Solutions Inc. | Si550 | 993.409691 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD1000M00DGR | Skyworks Solutions Inc. | Si550 | 1 GHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD983M040DGR | Skyworks Solutions Inc. | Si550 | 983.04 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AF1000M00DGR | Skyworks Solutions Inc. | Si550 | 1 GHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BC1000M00DGR | Skyworks Solutions Inc. | Si550 | 1 GHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BF1000M00DGR | Skyworks Solutions Inc. | Si550 | 1 GHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BF1400M00DGR | Skyworks Solutions Inc. | Si550 | 1.4 GHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550EC892M933DGR | Skyworks Solutions Inc. | Si550 | 892.933 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 550MC1150M00DGR | Skyworks Solutions Inc. | Si550 | 1150 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550MC1200M00DGR | Skyworks Solutions Inc. | Si550 | 1200 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550MD1100M00DGR | Skyworks Solutions Inc. | Si550 | 1.1 GHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550MD1150M00DGR | Skyworks Solutions Inc. | Si550 | 1150 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550MD1200M00DGR | Skyworks Solutions Inc. | Si550 | 1200 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550NC840M000DGR | Skyworks Solutions Inc. | Si550 | 840 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AA1000M00DG | Skyworks Solutions Inc. | Si550 | 1 GHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AB832M000DG | Skyworks Solutions Inc. | Si550 | 832 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550BA945M000DG | Skyworks Solutions Inc. | Si550 | 945 MHz | LVDS | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550BK834M640DG | Skyworks Solutions Inc. | Si550 | 834.64 MHz | LVDS | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550NA945M000DG | Skyworks Solutions Inc. | Si550 | 945 MHz | LVDS | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA1000M00DGR | Skyworks Solutions Inc. | Si550 | 1 GHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AB832M000DGR | Skyworks Solutions Inc. | Si550 | 832 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550BA945M000DGR | Skyworks Solutions Inc. | Si550 | 945 MHz | LVDS | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550BK834M640DGR | Skyworks Solutions Inc. | Si550 | 834.64 MHz | LVDS | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550NA945M000DGR | Skyworks Solutions Inc. | Si550 | 945 MHz | LVDS | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AE000131DGR | Skyworks Solutions Inc. | Si550 | 669.32658 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE000291DGR | Skyworks Solutions Inc. | Si550 | 794.727753 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE000310DGR | Skyworks Solutions Inc. | Si550 | 698.812334 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE245M760DGR | Skyworks Solutions Inc. | Si550 | 245.76 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE250M000DGR | Skyworks Solutions Inc. | Si550 | 250 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE307M200DGR | Skyworks Solutions Inc. | Si550 | 307.2 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE312M000DGR | Skyworks Solutions Inc. | Si550 | 312 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE312M500DGR | Skyworks Solutions Inc. | Si550 | 312.5 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE320M000DGR | Skyworks Solutions Inc. | Si550 | 320 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE340M480DGR | Skyworks Solutions Inc. | Si550 | 340.48 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE368M640DGR | Skyworks Solutions Inc. | Si550 | 368.64 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE400M000DGR | Skyworks Solutions Inc. | Si550 | 400 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE448M000DGR | Skyworks Solutions Inc. | Si550 | 448 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE460M800DGR | Skyworks Solutions Inc. | Si550 | 460.8 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE466M944DGR | Skyworks Solutions Inc. | Si550 | 466.944 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE480M000DGR | Skyworks Solutions Inc. | Si550 | 480 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE491M520DGR | Skyworks Solutions Inc. | Si550 | 491.52 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE500M000DGR | Skyworks Solutions Inc. | Si550 | 500 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE600M000DGR | Skyworks Solutions Inc. | Si550 | 600 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE622M080DGR | Skyworks Solutions Inc. | Si550 | 622.08 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE625M000DGR | Skyworks Solutions Inc. | Si550 | 625 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE716M800DGR | Skyworks Solutions Inc. | Si550 | 716.8 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE737M280DGR | Skyworks Solutions Inc. | Si550 | 737.28 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE741M746DGR | Skyworks Solutions Inc. | Si550 | 741.746 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE800M000DGR | Skyworks Solutions Inc. | Si550 | 800 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AG000127DGR | Skyworks Solutions Inc. | Si550 | 644.53125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AG255M000DGR | Skyworks Solutions Inc. | Si550 | 255 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AG400M000DGR | Skyworks Solutions Inc. | Si550 | 400 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AG622M080DGR | Skyworks Solutions Inc. | Si550 | 622.08 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AG693M750DGR | Skyworks Solutions Inc. | Si550 | 693.75 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AH000127DGR | Skyworks Solutions Inc. | Si550 | 644.53125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AH000246DGR | Skyworks Solutions Inc. | Si550 | 669.3266 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AH000254DGR | Skyworks Solutions Inc. | Si550 | 669.3216 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AH400M000DGR | Skyworks Solutions Inc. | Si550 | 400 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AH500M000DGR | Skyworks Solutions Inc. | Si550 | 500 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AH622M080DGR | Skyworks Solutions Inc. | Si550 | 622.08 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AH693M483DGR | Skyworks Solutions Inc. | Si550 | 693.483 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AH707M352DGR | Skyworks Solutions Inc. | Si550 | 707.352 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AH737M280DGR | Skyworks Solutions Inc. | Si550 | 737.28 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ000127DGR | Skyworks Solutions Inc. | Si550 | 644.53125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ000134DGR | Skyworks Solutions Inc. | Si550 | 693.482991 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ000274DGR | Skyworks Solutions Inc. | Si550 | 322.265625 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ322M266DGR | Skyworks Solutions Inc. | Si550 | 322.266 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ340M480DGR | Skyworks Solutions Inc. | Si550 | 340.48 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ409M600DGR | Skyworks Solutions Inc. | Si550 | 409.6 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ448M000DGR | Skyworks Solutions Inc. | Si550 | 448 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ491M520DGR | Skyworks Solutions Inc. | Si550 | 491.52 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ600M000DGR | Skyworks Solutions Inc. | Si550 | 600 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ622M080DGR | Skyworks Solutions Inc. | Si550 | 622.08 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ672M162DGR | Skyworks Solutions Inc. | Si550 | 672.162 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM000127DGR | Skyworks Solutions Inc. | Si550 | 644.53125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM000310DGR | Skyworks Solutions Inc. | Si550 | 698.812334 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM250M000DGR | Skyworks Solutions Inc. | Si550 | 250 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM340M480DGR | Skyworks Solutions Inc. | Si550 | 340.48 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM476M280DGR | Skyworks Solutions Inc. | Si550 | 476.28 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM480M000DGR | Skyworks Solutions Inc. | Si550 | 480 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM595M350DGR | Skyworks Solutions Inc. | Si550 | 595.35 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM640M000DGR | Skyworks Solutions Inc. | Si550 | 640 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM714M420DGR | Skyworks Solutions Inc. | Si550 | 714.42 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM768M000DGR | Skyworks Solutions Inc. | Si550 | 768 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM768M848DGR | Skyworks Solutions Inc. | Si550 | 768.848 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BE300M000DGR | Skyworks Solutions Inc. | Si550 | 300 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BE307M200DGR | Skyworks Solutions Inc. | Si550 | 307.2 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BE360M000DGR | Skyworks Solutions Inc. | Si550 | 360 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BE400M000DGR | Skyworks Solutions Inc. | Si550 | 400 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BE486M000DGR | Skyworks Solutions Inc. | Si550 | 486 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BG240M000DGR | Skyworks Solutions Inc. | Si550 | 240 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BH240M000DGR | Skyworks Solutions Inc. | Si550 | 240 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BH307M200DGR | Skyworks Solutions Inc. | Si550 | 307.2 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BM233M000DGR | Skyworks Solutions Inc. | Si550 | 233 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BM250M000DGR | Skyworks Solutions Inc. | Si550 | 250 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BM338M600DGR | Skyworks Solutions Inc. | Si550 | 338.6 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BM466M000DGR | Skyworks Solutions Inc. | Si550 | 466 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BM640M000DGR | Skyworks Solutions Inc. | Si550 | 640 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550FJ270M000DGR | Skyworks Solutions Inc. | Si550 | 270 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 550FJ379M200DGR | Skyworks Solutions Inc. | Si550 | 379.2 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 550FJ384M000DGR | Skyworks Solutions Inc. | Si550 | 384 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 550FJ420M280DGR | Skyworks Solutions Inc. | Si550 | 420.28 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 550FJ425M600DGR | Skyworks Solutions Inc. | Si550 | 425.6 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 550FJ451M584DGR | Skyworks Solutions Inc. | Si550 | 451.584 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 550FJ516M096DGR | Skyworks Solutions Inc. | Si550 | 516.096 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 550ME000127DGR | Skyworks Solutions Inc. | Si550 | 644.53125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME000131DGR | Skyworks Solutions Inc. | Si550 | 669.32658 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME000190DGR | Skyworks Solutions Inc. | Si550 | 716.5732 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME000191DGR | Skyworks Solutions Inc. | Si550 | 748.0709 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME000192DGR | Skyworks Solutions Inc. | Si550 | 779.5686 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME000193DGR | Skyworks Solutions Inc. | Si550 | 742.4348 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME000194DGR | Skyworks Solutions Inc. | Si550 | 775.0693 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME000195DGR | Skyworks Solutions Inc. | Si550 | 807.7038 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME000215DGR | Skyworks Solutions Inc. | Si550 | 665.7437 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME240M000DGR | Skyworks Solutions Inc. | Si550 | 240 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME368M640DGR | Skyworks Solutions Inc. | Si550 | 368.64 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME480M000DGR | Skyworks Solutions Inc. | Si550 | 480 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME531M250DGR | Skyworks Solutions Inc. | Si550 | 531.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME600M000DGR | Skyworks Solutions Inc. | Si550 | 600 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME614M400DGR | Skyworks Solutions Inc. | Si550 | 614.4 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME622M080DGR | Skyworks Solutions Inc. | Si550 | 622.08 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME640M000DGR | Skyworks Solutions Inc. | Si550 | 640 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME693M483DGR | Skyworks Solutions Inc. | Si550 | 693.483 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550MJ300M000DGR | Skyworks Solutions Inc. | Si550 | 300 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550MJ320M000DGR | Skyworks Solutions Inc. | Si550 | 320 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550MJ409M600DGR | Skyworks Solutions Inc. | Si550 | 409.6 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550MM500M000DGR | Skyworks Solutions Inc. | Si550 | 500 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550NE480M000DGR | Skyworks Solutions Inc. | Si550 | 480 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550NE800M000DGR | Skyworks Solutions Inc. | Si550 | 800 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550NH250M000DGR | Skyworks Solutions Inc. | Si550 | 250 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550NH750M000DGR | Skyworks Solutions Inc. | Si550 | 750 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550NJ250M000DGR | Skyworks Solutions Inc. | Si550 | 250 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550NJ727M273DGR | Skyworks Solutions Inc. | Si550 | 727.273 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE700M000DGR | Skyworks Solutions Inc. | Si550 | 700 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AF153M600DG | Skyworks Solutions Inc. | Si550 | 153.6 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BH000274DGR | Skyworks Solutions Inc. | Si550 | 322.265625 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BH622M080DGR | Skyworks Solutions Inc. | Si550 | 622.08 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BJ409M375DGR | Skyworks Solutions Inc. | Si550 | 409.375 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550MJ500M000DGR | Skyworks Solutions Inc. | Si550 | 500 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550FJ240M474DGR | Skyworks Solutions Inc. | Si550 | 240.474 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 550AE000131DG | Skyworks Solutions Inc. | Si550 | 669.32658 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE000291DG | Skyworks Solutions Inc. | Si550 | 794.727753 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE000310DG | Skyworks Solutions Inc. | Si550 | 698.812334 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE245M760DG | Skyworks Solutions Inc. | Si550 | 245.76 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE250M000DG | Skyworks Solutions Inc. | Si550 | 250 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE307M200DG | Skyworks Solutions Inc. | Si550 | 307.2 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE312M000DG | Skyworks Solutions Inc. | Si550 | 312 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE312M500DG | Skyworks Solutions Inc. | Si550 | 312.5 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE320M000DG | Skyworks Solutions Inc. | Si550 | 320 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE340M480DG | Skyworks Solutions Inc. | Si550 | 340.48 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE368M640DG | Skyworks Solutions Inc. | Si550 | 368.64 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE400M000DG | Skyworks Solutions Inc. | Si550 | 400 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE448M000DG | Skyworks Solutions Inc. | Si550 | 448 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE460M800DG | Skyworks Solutions Inc. | Si550 | 460.8 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE466M944DG | Skyworks Solutions Inc. | Si550 | 466.944 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE480M000DG | Skyworks Solutions Inc. | Si550 | 480 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE491M520DG | Skyworks Solutions Inc. | Si550 | 491.52 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE500M000DG | Skyworks Solutions Inc. | Si550 | 500 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE600M000DG | Skyworks Solutions Inc. | Si550 | 600 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE622M080DG | Skyworks Solutions Inc. | Si550 | 622.08 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE625M000DG | Skyworks Solutions Inc. | Si550 | 625 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE716M800DG | Skyworks Solutions Inc. | Si550 | 716.8 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE737M280DG | Skyworks Solutions Inc. | Si550 | 737.28 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE741M746DG | Skyworks Solutions Inc. | Si550 | 741.746 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE800M000DG | Skyworks Solutions Inc. | Si550 | 800 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AG000127DG | Skyworks Solutions Inc. | Si550 | 644.53125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AG255M000DG | Skyworks Solutions Inc. | Si550 | 255 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AG400M000DG | Skyworks Solutions Inc. | Si550 | 400 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AG622M080DG | Skyworks Solutions Inc. | Si550 | 622.08 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AG693M750DG | Skyworks Solutions Inc. | Si550 | 693.75 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AH000127DG | Skyworks Solutions Inc. | Si550 | 644.53125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AH000246DG | Skyworks Solutions Inc. | Si550 | 669.3266 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AH000254DG | Skyworks Solutions Inc. | Si550 | 669.3216 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AH400M000DG | Skyworks Solutions Inc. | Si550 | 400 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AH500M000DG | Skyworks Solutions Inc. | Si550 | 500 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AH622M080DG | Skyworks Solutions Inc. | Si550 | 622.08 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AH693M483DG | Skyworks Solutions Inc. | Si550 | 693.483 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AH707M352DG | Skyworks Solutions Inc. | Si550 | 707.352 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AH737M280DG | Skyworks Solutions Inc. | Si550 | 737.28 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ000127DG | Skyworks Solutions Inc. | Si550 | 644.53125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ000134DG | Skyworks Solutions Inc. | Si550 | 693.482991 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ000274DG | Skyworks Solutions Inc. | Si550 | 322.265625 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ322M266DG | Skyworks Solutions Inc. | Si550 | 322.266 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ340M480DG | Skyworks Solutions Inc. | Si550 | 340.48 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ409M600DG | Skyworks Solutions Inc. | Si550 | 409.6 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ448M000DG | Skyworks Solutions Inc. | Si550 | 448 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ491M520DG | Skyworks Solutions Inc. | Si550 | 491.52 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ600M000DG | Skyworks Solutions Inc. | Si550 | 600 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ622M080DG | Skyworks Solutions Inc. | Si550 | 622.08 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ672M162DG | Skyworks Solutions Inc. | Si550 | 672.162 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM000127DG | Skyworks Solutions Inc. | Si550 | 644.53125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM000310DG | Skyworks Solutions Inc. | Si550 | 698.812334 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM250M000DG | Skyworks Solutions Inc. | Si550 | 250 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM340M480DG | Skyworks Solutions Inc. | Si550 | 340.48 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM476M280DG | Skyworks Solutions Inc. | Si550 | 476.28 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM480M000DG | Skyworks Solutions Inc. | Si550 | 480 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM595M350DG | Skyworks Solutions Inc. | Si550 | 595.35 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM640M000DG | Skyworks Solutions Inc. | Si550 | 640 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM714M420DG | Skyworks Solutions Inc. | Si550 | 714.42 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM768M000DG | Skyworks Solutions Inc. | Si550 | 768 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AM768M848DG | Skyworks Solutions Inc. | Si550 | 768.848 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BE300M000DG | Skyworks Solutions Inc. | Si550 | 300 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BE307M200DG | Skyworks Solutions Inc. | Si550 | 307.2 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BE360M000DG | Skyworks Solutions Inc. | Si550 | 360 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BE400M000DG | Skyworks Solutions Inc. | Si550 | 400 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BE486M000DG | Skyworks Solutions Inc. | Si550 | 486 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BG240M000DG | Skyworks Solutions Inc. | Si550 | 240 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BH240M000DG | Skyworks Solutions Inc. | Si550 | 240 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BH307M200DG | Skyworks Solutions Inc. | Si550 | 307.2 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BM233M000DG | Skyworks Solutions Inc. | Si550 | 233 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BM250M000DG | Skyworks Solutions Inc. | Si550 | 250 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BM338M600DG | Skyworks Solutions Inc. | Si550 | 338.6 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BM466M000DG | Skyworks Solutions Inc. | Si550 | 466 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BM640M000DG | Skyworks Solutions Inc. | Si550 | 640 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550FJ270M000DG | Skyworks Solutions Inc. | Si550 | 270 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 550FJ379M200DG | Skyworks Solutions Inc. | Si550 | 379.2 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 550FJ384M000DG | Skyworks Solutions Inc. | Si550 | 384 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 550FJ420M280DG | Skyworks Solutions Inc. | Si550 | 420.28 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 550FJ425M600DG | Skyworks Solutions Inc. | Si550 | 425.6 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 550FJ451M584DG | Skyworks Solutions Inc. | Si550 | 451.584 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 550FJ516M096DG | Skyworks Solutions Inc. | Si550 | 516.096 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 550ME000127DG | Skyworks Solutions Inc. | Si550 | 644.53125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME000131DG | Skyworks Solutions Inc. | Si550 | 669.32658 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME000190DG | Skyworks Solutions Inc. | Si550 | 716.5732 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME000191DG | Skyworks Solutions Inc. | Si550 | 748.0709 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME000192DG | Skyworks Solutions Inc. | Si550 | 779.5686 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME000193DG | Skyworks Solutions Inc. | Si550 | 742.4348 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME000194DG | Skyworks Solutions Inc. | Si550 | 775.0693 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME000195DG | Skyworks Solutions Inc. | Si550 | 807.7038 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME000215DG | Skyworks Solutions Inc. | Si550 | 665.7437 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME240M000DG | Skyworks Solutions Inc. | Si550 | 240 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME368M640DG | Skyworks Solutions Inc. | Si550 | 368.64 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME480M000DG | Skyworks Solutions Inc. | Si550 | 480 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME531M250DG | Skyworks Solutions Inc. | Si550 | 531.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME600M000DG | Skyworks Solutions Inc. | Si550 | 600 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME614M400DG | Skyworks Solutions Inc. | Si550 | 614.4 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME622M080DG | Skyworks Solutions Inc. | Si550 | 622.08 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME640M000DG | Skyworks Solutions Inc. | Si550 | 640 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550ME693M483DG | Skyworks Solutions Inc. | Si550 | 693.483 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550MJ300M000DG | Skyworks Solutions Inc. | Si550 | 300 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550MJ320M000DG | Skyworks Solutions Inc. | Si550 | 320 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550MJ409M600DG | Skyworks Solutions Inc. | Si550 | 409.6 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550MM500M000DG | Skyworks Solutions Inc. | Si550 | 500 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550NE480M000DG | Skyworks Solutions Inc. | Si550 | 480 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550NE800M000DG | Skyworks Solutions Inc. | Si550 | 800 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550NH250M000DG | Skyworks Solutions Inc. | Si550 | 250 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550NH750M000DG | Skyworks Solutions Inc. | Si550 | 750 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550NJ250M000DG | Skyworks Solutions Inc. | Si550 | 250 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550NJ727M273DG | Skyworks Solutions Inc. | Si550 | 727.273 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AE700M000DG | Skyworks Solutions Inc. | Si550 | 700 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BH000274DG | Skyworks Solutions Inc. | Si550 | 322.265625 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BH622M080DG | Skyworks Solutions Inc. | Si550 | 622.08 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550BJ409M375DG | Skyworks Solutions Inc. | Si550 | 409.375 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550MJ500M000DG | Skyworks Solutions Inc. | Si550 | 500 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550FJ240M474DG | Skyworks Solutions Inc. | Si550 | 240.474 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 550EA125M000DGR | Skyworks Solutions Inc. | Si550 | 125 MHz | LVPECL | 2.5V | ±100ppm | -40°C ~ 85°C |
| 550EB122M880DGR | Skyworks Solutions Inc. | Si550 | 122.88 MHz | LVPECL | 2.5V | ±100ppm | -40°C ~ 85°C |
| 550EK100M000DGR | Skyworks Solutions Inc. | Si550 | 100 MHz | LVPECL | 2.5V | ±100ppm | -40°C ~ 85°C |
| 550EK106M250DGR | Skyworks Solutions Inc. | Si550 | 106.25 MHz | LVPECL | 2.5V | ±100ppm | -40°C ~ 85°C |
| 550FA100M000DGR | Skyworks Solutions Inc. | Si550 | 100 MHz | LVDS | 2.5V | ±100ppm | -40°C ~ 85°C |
| 550MA10M0000DGR | Skyworks Solutions Inc. | Si550 | 10 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550SA100M000DGR | Skyworks Solutions Inc. | Si550 | 100 MHz | LVDS | 2.5V | ±100ppm | -40°C ~ 85°C |
| 550AE000389DG | Skyworks Solutions Inc. | Si550 | 993.409691 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AA100M000DGR | Skyworks Solutions Inc. | Si550 | 100 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA10M0000DGR | Skyworks Solutions Inc. | Si550 | 10 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA19M4400DGR | Skyworks Solutions Inc. | Si550 | 19.44 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA20M0000DGR | Skyworks Solutions Inc. | Si550 | 20 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA40M0000DGR | Skyworks Solutions Inc. | Si550 | 40 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA62M0000DGR | Skyworks Solutions Inc. | Si550 | 62 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA74M1758DGR | Skyworks Solutions Inc. | Si550 | 74.1758 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA74M2500DGR | Skyworks Solutions Inc. | Si550 | 74.25 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA80M0000DGR | Skyworks Solutions Inc. | Si550 | 80 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA96M0000DGR | Skyworks Solutions Inc. | Si550 | 96 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AB100M000DGR | Skyworks Solutions Inc. | Si550 | 100 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AB122M880DGR | Skyworks Solutions Inc. | Si550 | 122.88 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AB125M000DGR | Skyworks Solutions Inc. | Si550 | 125 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AB25M0000DGR | Skyworks Solutions Inc. | Si550 | 25 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AB52M0000DGR | Skyworks Solutions Inc. | Si550 | 52 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AB74M2500DGR | Skyworks Solutions Inc. | Si550 | 74.25 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AK122M880DGR | Skyworks Solutions Inc. | Si550 | 122.88 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550BA125M000DGR | Skyworks Solutions Inc. | Si550 | 125 MHz | LVDS | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550BB122M880DGR | Skyworks Solutions Inc. | Si550 | 122.88 MHz | LVDS | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA000127DGR | Skyworks Solutions Inc. | Si550 | 644.53125 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA000134DGR | Skyworks Solutions Inc. | Si550 | 693.482991 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA000196DGR | Skyworks Solutions Inc. | Si550 | 672.1627 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA000212DGR | Skyworks Solutions Inc. | Si550 | 669.3265 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA000263DGR | Skyworks Solutions Inc. | Si550 | 624.6938 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA300M000DGR | Skyworks Solutions Inc. | Si550 | 300 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA400M000DGR | Skyworks Solutions Inc. | Si550 | 400 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA600M000DGR | Skyworks Solutions Inc. | Si550 | 600 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA614M400DGR | Skyworks Solutions Inc. | Si550 | 614.4 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA622M080DGR | Skyworks Solutions Inc. | Si550 | 622.08 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA644M531DGR | Skyworks Solutions Inc. | Si550 | 644.531 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA669M326DGR | Skyworks Solutions Inc. | Si550 | 669.326 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA669M327DGR | Skyworks Solutions Inc. | Si550 | 669.327 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA670M000DGR | Skyworks Solutions Inc. | Si550 | 670 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA693M750DGR | Skyworks Solutions Inc. | Si550 | 693.75 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA698M812DGR | Skyworks Solutions Inc. | Si550 | 698.812 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA720M000DGR | Skyworks Solutions Inc. | Si550 | 720 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA737M280DGR | Skyworks Solutions Inc. | Si550 | 737.28 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA794M728DGR | Skyworks Solutions Inc. | Si550 | 794.728 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AA800M000DGR | Skyworks Solutions Inc. | Si550 | 800 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AB000131DGR | Skyworks Solutions Inc. | Si550 | 669.32658 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AB000246DGR | Skyworks Solutions Inc. | Si550 | 669.3266 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AB273M000DGR | Skyworks Solutions Inc. | Si550 | 273 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AB307M200DGR | Skyworks Solutions Inc. | Si550 | 307.2 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AB364M000DGR | Skyworks Solutions Inc. | Si550 | 364 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AB368M640DGR | Skyworks Solutions Inc. | Si550 | 368.64 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AB448M000DGR | Skyworks Solutions Inc. | Si550 | 448 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AB491M520DGR | Skyworks Solutions Inc. | Si550 | 491.52 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AB622M080DGR | Skyworks Solutions Inc. | Si550 | 622.08 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AK000127DGR | Skyworks Solutions Inc. | Si550 | 644.53125 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AK000133DGR | Skyworks Solutions Inc. | Si550 | 690.569196 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AK000136DGR | Skyworks Solutions Inc. | Si550 | 704.38058 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AK000156DGR | Skyworks Solutions Inc. | Si550 | 647.2394 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AK000157DGR | Skyworks Solutions Inc. | Si550 | 660.1842 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AK000206DGR | Skyworks Solutions Inc. | Si550 | 718.8638 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AK000263DGR | Skyworks Solutions Inc. | Si550 | 624.6938 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AK491M520DGR | Skyworks Solutions Inc. | Si550 | 491.52 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AK622M080DGR | Skyworks Solutions Inc. | Si550 | 622.08 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AK622M800DGR | Skyworks Solutions Inc. | Si550 | 622.8 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AK693M750DGR | Skyworks Solutions Inc. | Si550 | 693.75 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AK737M280DGR | Skyworks Solutions Inc. | Si550 | 737.28 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550BA311M000DGR | Skyworks Solutions Inc. | Si550 | 311 MHz | LVDS | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550BB777M745DGR | Skyworks Solutions Inc. | Si550 | 777.745 MHz | LVDS | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550BB777M750DGR | Skyworks Solutions Inc. | Si550 | 777.75 MHz | LVDS | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550BK240M000DGR | Skyworks Solutions Inc. | Si550 | 240 MHz | LVDS | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550EA312M000DGR | Skyworks Solutions Inc. | Si550 | 312 MHz | LVPECL | 2.5V | ±100ppm | -40°C ~ 85°C |
| 550MA220M000DGR | Skyworks Solutions Inc. | Si550 | 220 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550MA644M531DGR | Skyworks Solutions Inc. | Si550 | 644.531 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550MB220M000DGR | Skyworks Solutions Inc. | Si550 | 220 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550AD125M000DG | Skyworks Solutions Inc. | Si550 | 125 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD25M0000DG | Skyworks Solutions Inc. | Si550 | 25 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD30M7200DG | Skyworks Solutions Inc. | Si550 | 30.72 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD40M0000DG | Skyworks Solutions Inc. | Si550 | 40 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD50M0000DG | Skyworks Solutions Inc. | Si550 | 50 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD54M0000DG | Skyworks Solutions Inc. | Si550 | 54 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD74M1758DG | Skyworks Solutions Inc. | Si550 | 74.1758 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD74M2500DG | Skyworks Solutions Inc. | Si550 | 74.25 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD76M8000DG | Skyworks Solutions Inc. | Si550 | 76.8 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD77M7600DG | Skyworks Solutions Inc. | Si550 | 77.76 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD80M0000DG | Skyworks Solutions Inc. | Si550 | 80 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD96M7680DG | Skyworks Solutions Inc. | Si550 | 96.768 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD98M3040DG | Skyworks Solutions Inc. | Si550 | 98.304 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AF100M000DG | Skyworks Solutions Inc. | Si550 | 100 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AF120M000DG | Skyworks Solutions Inc. | Si550 | 120 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AF122M880DG | Skyworks Solutions Inc. | Si550 | 122.88 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AF125M000DG | Skyworks Solutions Inc. | Si550 | 125 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AF26M0000DG | Skyworks Solutions Inc. | Si550 | 26 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AF30M7200DG | Skyworks Solutions Inc. | Si550 | 30.72 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AF40M0000DG | Skyworks Solutions Inc. | Si550 | 40 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AF70M6560DG | Skyworks Solutions Inc. | Si550 | 70.656 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AF73M7280DG | Skyworks Solutions Inc. | Si550 | 73.728 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AF80M0000DG | Skyworks Solutions Inc. | Si550 | 80 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BC100M000DG | Skyworks Solutions Inc. | Si550 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BC33M3330DG | Skyworks Solutions Inc. | Si550 | 33.333 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BC40M0000DG | Skyworks Solutions Inc. | Si550 | 40 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BC66M6667DG | Skyworks Solutions Inc. | Si550 | 66.6667 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BC74M1758DG | Skyworks Solutions Inc. | Si550 | 74.1758 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BC98M3040DG | Skyworks Solutions Inc. | Si550 | 98.304 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BD100M000DG | Skyworks Solutions Inc. | Si550 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BD100M300DG | Skyworks Solutions Inc. | Si550 | 100.3 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BD108M000DG | Skyworks Solutions Inc. | Si550 | 108 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BD125M000DG | Skyworks Solutions Inc. | Si550 | 125 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BD16M3840DG | Skyworks Solutions Inc. | Si550 | 16.384 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BD25M0000DG | Skyworks Solutions Inc. | Si550 | 25 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BD30M7200DG | Skyworks Solutions Inc. | Si550 | 30.72 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BD65M1000DG | Skyworks Solutions Inc. | Si550 | 65.1 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BD74M2500DG | Skyworks Solutions Inc. | Si550 | 74.25 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BF100M000DG | Skyworks Solutions Inc. | Si550 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BF120M000DG | Skyworks Solutions Inc. | Si550 | 120 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BF125M000DG | Skyworks Solutions Inc. | Si550 | 125 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BF27M0000DG | Skyworks Solutions Inc. | Si550 | 27 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BF54M0000DG | Skyworks Solutions Inc. | Si550 | 54 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BF76M8000DG | Skyworks Solutions Inc. | Si550 | 76.8 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BF77M7600DG | Skyworks Solutions Inc. | Si550 | 77.76 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BF80M0000DG | Skyworks Solutions Inc. | Si550 | 80 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550ED100M000DG | Skyworks Solutions Inc. | Si550 | 100 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 550FC125M000DG | Skyworks Solutions Inc. | Si550 | 125 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 550FC27M0000DG | Skyworks Solutions Inc. | Si550 | 27 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 550FC66M6667DG | Skyworks Solutions Inc. | Si550 | 66.6667 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 550FD120M000DG | Skyworks Solutions Inc. | Si550 | 120 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 550FD125M000DG | Skyworks Solutions Inc. | Si550 | 125 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 550FD40M0000DG | Skyworks Solutions Inc. | Si550 | 40 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 550MD10M0000DG | Skyworks Solutions Inc. | Si550 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550MD112M000DG | Skyworks Solutions Inc. | Si550 | 112 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550MD125M000DG | Skyworks Solutions Inc. | Si550 | 125 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550MD25M0000DG | Skyworks Solutions Inc. | Si550 | 25 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550MD77M7600DG | Skyworks Solutions Inc. | Si550 | 77.76 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550MD93M3120DG | Skyworks Solutions Inc. | Si550 | 93.312 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550ND125M000DG | Skyworks Solutions Inc. | Si550 | 125 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550ND74M2500DG | Skyworks Solutions Inc. | Si550 | 74.25 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550RC25M0000DG | Skyworks Solutions Inc. | Si550 | 25 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 550AC50M0000DG | Skyworks Solutions Inc. | Si550 | 50 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD100M197DG | Skyworks Solutions Inc. | Si550 | 100.197 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD70M6560DG | Skyworks Solutions Inc. | Si550 | 70.656 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BD122M000DG | Skyworks Solutions Inc. | Si550 | 122 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550EF100M000DG | Skyworks Solutions Inc. | Si550 | 100 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 550AD100M196DG | Skyworks Solutions Inc. | Si550 | 100.196 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550MC60M0000DG | Skyworks Solutions Inc. | Si550 | 60 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550BF35M0000DG | Skyworks Solutions Inc. | Si550 | 35 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550FF15M0000DG | Skyworks Solutions Inc. | Si550 | 15 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 550BD27M0000DG | Skyworks Solutions Inc. | Si550 | 27 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AJ153M600DGR | Skyworks Solutions Inc. | Si550 | 153.6 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550AJ161M525DGR | Skyworks Solutions Inc. | Si550 | 161.525 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 550MB311M040DGR | Skyworks Solutions Inc. | Si550 | 311.04 MHz | LVPECL | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550NA250M000DGR | Skyworks Solutions Inc. | Si550 | 250 MHz | LVDS | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550NB220M000DGR | Skyworks Solutions Inc. | Si550 | 220 MHz | LVDS | 3.3V | ±100ppm | -40°C ~ 85°C |
| 550SA220M000DGR | Skyworks Solutions Inc. | Si550 | 220 MHz | LVDS | 2.5V | ±100ppm | -40°C ~ 85°C |
| 550AC10M0000DG | Skyworks Solutions Inc. | Si550 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC122M880DG | Skyworks Solutions Inc. | Si550 | 122.88 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC125M000DG | Skyworks Solutions Inc. | Si550 | 125 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC19M4400DG | Skyworks Solutions Inc. | Si550 | 19.44 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC27M0000DG | Skyworks Solutions Inc. | Si550 | 27 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC30M7200DG | Skyworks Solutions Inc. | Si550 | 30.72 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC60M7500DG | Skyworks Solutions Inc. | Si550 | 60.75 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC74M2500DG | Skyworks Solutions Inc. | Si550 | 74.25 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC80M0000DG | Skyworks Solutions Inc. | Si550 | 80 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC98M3040DG | Skyworks Solutions Inc. | Si550 | 98.304 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD100M000DG | Skyworks Solutions Inc. | Si550 | 100 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD105M000DG | Skyworks Solutions Inc. | Si550 | 105 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD10M2400DG | Skyworks Solutions Inc. | Si550 | 10.24 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD114M048DG | Skyworks Solutions Inc. | Si550 | 114.048 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD115M440DG | Skyworks Solutions Inc. | Si550 | 115.44 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD120M000DG | Skyworks Solutions Inc. | Si550 | 120 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD120M960DG | Skyworks Solutions Inc. | Si550 | 120.96 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD122M880DG | Skyworks Solutions Inc. | Si550 | 122.88 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC000127DGR | Skyworks Solutions Inc. | Si550 | 644.53125 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC000130DGR | Skyworks Solutions Inc. | Si550 | 666.514286 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC000131DGR | Skyworks Solutions Inc. | Si550 | 669.32658 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC000132DGR | Skyworks Solutions Inc. | Si550 | 672.162712 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC000134DGR | Skyworks Solutions Inc. | Si550 | 693.482991 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC000135DGR | Skyworks Solutions Inc. | Si550 | 696.4215 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC000162DGR | Skyworks Solutions Inc. | Si550 | 742.4347 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC235M000DGR | Skyworks Solutions Inc. | Si550 | 235 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC250M000DGR | Skyworks Solutions Inc. | Si550 | 250 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC307M200DGR | Skyworks Solutions Inc. | Si550 | 307.2 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC330M000DGR | Skyworks Solutions Inc. | Si550 | 330 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC400M000DGR | Skyworks Solutions Inc. | Si550 | 400 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC426M000DGR | Skyworks Solutions Inc. | Si550 | 426 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC491M520DGR | Skyworks Solutions Inc. | Si550 | 491.52 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC600M000DGR | Skyworks Solutions Inc. | Si550 | 600 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC622M080DGR | Skyworks Solutions Inc. | Si550 | 622.08 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC693M483DGR | Skyworks Solutions Inc. | Si550 | 693.483 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AC800M000DGR | Skyworks Solutions Inc. | Si550 | 800 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD000127DGR | Skyworks Solutions Inc. | Si550 | 644.53125 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD000130DGR | Skyworks Solutions Inc. | Si550 | 666.514286 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD000131DGR | Skyworks Solutions Inc. | Si550 | 669.32658 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD000132DGR | Skyworks Solutions Inc. | Si550 | 672.162712 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD000263DGR | Skyworks Solutions Inc. | Si550 | 624.6938 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD000288DGR | Skyworks Solutions Inc. | Si550 | 794.72275 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD004654DGR | Skyworks Solutions Inc. | Si550 | 698.8123 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD224M000DGR | Skyworks Solutions Inc. | Si550 | 224 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD245M760DGR | Skyworks Solutions Inc. | Si550 | 245.76 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD250M000DGR | Skyworks Solutions Inc. | Si550 | 250 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD280M000DGR | Skyworks Solutions Inc. | Si550 | 280 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD307M200DGR | Skyworks Solutions Inc. | Si550 | 307.2 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD311M040DGR | Skyworks Solutions Inc. | Si550 | 311.04 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD327M680DGR | Skyworks Solutions Inc. | Si550 | 327.68 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD384M000DGR | Skyworks Solutions Inc. | Si550 | 384 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD400M000DGR | Skyworks Solutions Inc. | Si550 | 400 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD433M000DGR | Skyworks Solutions Inc. | Si550 | 433 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD434M650DGR | Skyworks Solutions Inc. | Si550 | 434.65 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD448M000DGR | Skyworks Solutions Inc. | Si550 | 448 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 550AD455M000DGR | Skyworks Solutions Inc. | Si550 | 455 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
KDS晶振,石英晶振,贴片晶振,DSB221SDN晶振
英国IQD晶振|87SMX|LFXTAL023899Bulk|SMD晶体
IQD晶振|CFPX-104|LFXTAL061486Reel|5032石英晶振
IQD晶振|CFPX-180|LFXTAL065272RL3K|3225进口晶振
IQD Crystal|CFPX-218|LFXTAL069404Cutt|超小型无源晶振
IQD晶振|HC-49|LFXTAL053009Bulk|插件石英晶振
IQD Crystal|HC-49/3.5H|LFXTAL078424Bulk|49S插件晶振
IQD CRYSTAL|IQXC-26|LFXTAL078691Cutt|1612无源晶振
英国IQD晶振|IQXC-42|LFXTAL081781RL3K|2016贴片晶振
DSC1001CE1-019.2000,3225mm,19.2MHz,Microchip移动应用晶振
