01-CR1-02-24M000-T16-2030M-EXT|NKG Crystal|TAIHETH

产品简介

01-CR1-02-24M000-T16-2030M-EXT|NKG Crystal|TAIHETH,NKG晶振,01-CR1-02进口无源晶振,石英晶振,01-CR1-02-24M000-T16-2030M-EXT晶振,HC-49S插件晶振,晶体谐振器,频率24MHz,负载16pF,工作温度-40~85°C,频率稳定性30ppm,低老化晶振,高可靠性晶振,无铅环保晶振,家用网关晶振,智能家居晶振,网络交换机晶振,移动通信晶振.

产品详情

TH-1 890

01-CR1-02-24M000-T16-2030M-EXT|NKG Crystal|TAIHETH,NKG晶振,01-CR1-02进口无源晶振,石英晶振,01-CR1-02-24M000-T16-2030M-EXT晶振,HC-49S插件晶振,晶体谐振器,频率24MHz,负载16pF,工作温度-40~85°C,频率稳定性30ppm,低老化晶振,高可靠性晶振,无铅环保晶振,家用网关晶振,智能家居晶振,网络交换机晶振,移动通信晶振.

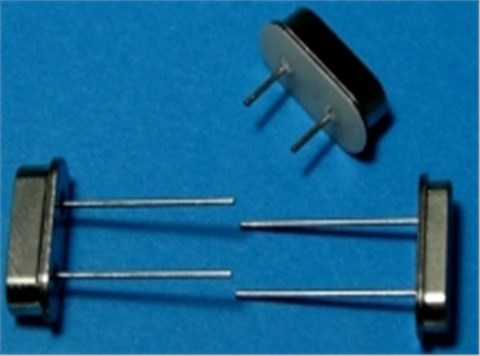

01-CR1-02-24M000-T16-2030M-EXT|NKG Crystal|TAIHETH特点：

•传统的HC-49/S封装与2引线

•最适用于低频，可选间隔和切断引线。

•可靠的密封金属罐包装

TH-2 890

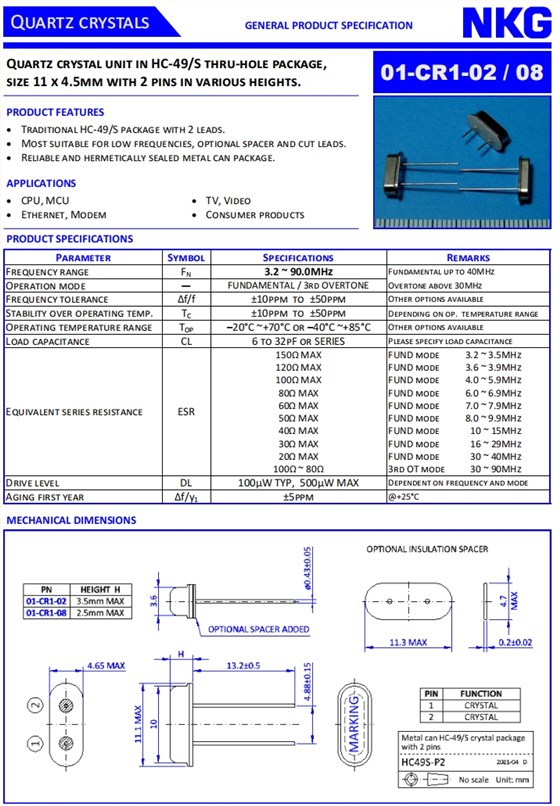

01-CR1-02-24M000-T16-2030M-EXT|NKG Crystal|TAIHETH规格表

PARAMETER	SYMBOL	SPECIFICATIONS	REMARKS
FREQUEN CY RAN GE	FA	24MHZ	FUNDAMENTAL / 3rd OVERTONE
FREQUENCY TOLERANCE	Δf/f	±20PPM	Other options available
STABILITY OVER OPERATING TEMP.	TC	±30PPM	Depending on operating temperature range
OPERATING TEMPERATURE RANGE	Top	-40°C~+85°C	Other options available
LOAD CAPACITAN CE	CL	16PF	PLEASE SPECIFY LOAD CAPACITANCE
EQUIVALENT SERIES RESISTANCE	ESR	150Ω MAX 120Ω MAX 100ΩMAX 80Ω MAX 60Ω MAX 50Ω MAX 40Ω MAX 30Ω MAX 20Ω MAX 100Ω ~ 80Ω	FUND mode 3.2 ~ 3.5MHz FUND mode 3.6 ~ 3.9MHz FUND mode 4.0 ~ 5.9MHz FUND mode 6.0 ~ 6.9MHz FUND mode 7.0 ~ 7.9MHz FUND mode 8.0 ~ 9.9MHz FUND mode 10 ~ 15MHz FUND mode 16 ~ 29MHz FUND mode 30 ~ 40MHz 3rd OT mode 30 ~ 90MHz
DRIVE LEVEL	DL	100μW TYP,500μW MAX	Dependent on frequency and mode
Aging first year	Δf/y1	±5ppm	@+25°C
