C1E-50.000-10-3050-X-R3|50MHz|10pF|台湾AKER品牌

产品简介

C1E-50.000-10-3050-X-R3|50MHz|10pF|台湾AKER品牌,AKER晶振,C1E进口晶振,C1E-50.000-10-3050-X-R3晶振,无源晶振,2016mm晶振,晶体谐振器,四脚贴片晶振,频率50MHz,负载10pF,工作温度-40~85°C,频率稳定性50ppm,轻薄小晶振,低老化晶振,耐高温晶振,无线通信晶振,智能手机晶振,个人电脑外围设备晶振,便携式多媒体设备晶振.

产品详情

TH-1 890

C1E-50.000-10-3050-X-R3|50MHz|10pF|台湾AKER品牌,AKER晶振,C1E进口晶振,C1E-50.000-10-3050-X-R3晶振,无源晶振,2016mm晶振,晶体谐振器,四脚贴片晶振,频率50MHz,负载10pF,工作温度-40~85°C,频率稳定性50ppm,轻薄小晶振,低老化晶振,耐高温晶振,无线通信晶振,智能手机晶振,个人电脑外围设备晶振,便携式多媒体设备晶振.

C1E-50.000-10-3050-X-R3|50MHz|10pF|台湾AKER品牌特点：

-微处理器晶体单元

-低姿态

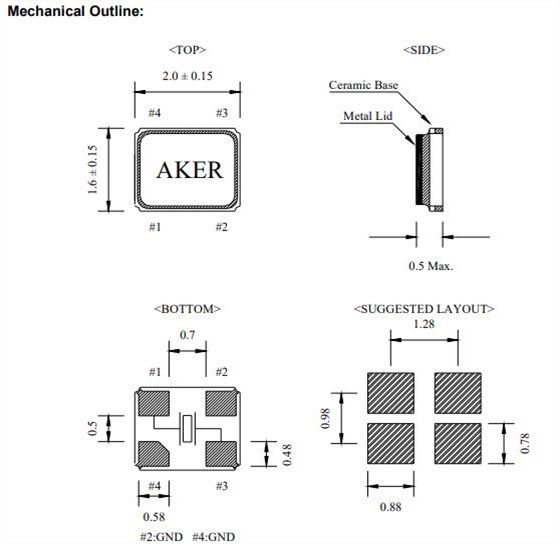

-2.0×1.6mm表面安装- 4 Pad

-产品通用规格

TH-2 890

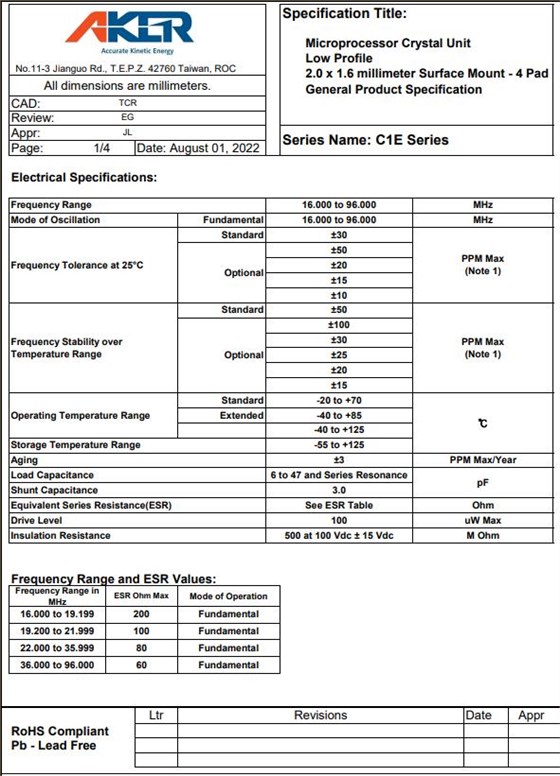

C1E-50.000-10-3050-X-R3|50MHz|10pF|台湾AKER品牌规格表

Frequency Range		50	MHz
Mode of Oscillation	Fundamental	16.000 to 96.000	MHz
Frequency Tolerance at 25°C	Standard	±30	PPM Max (Note 1)
	Optional	±50
		±20
		±15
		±10
Frequency Stability over Temperature Range	Standard	±50	PPM Max (Note 1)
	Optional	±100
		±30
		±25
		±20
		±15
Operating Temperature Range	Standard	-20 to +70	°C
	Extended	-40 to +85

		-40 to +125
Storage Temperature Range		-55 to +125
Aging		±3	PPM Max/Year
Load Capacitance		10	pF
Shunt Capacitance		3.0
Equivalent Series Resistance(ESR)		60	Ohm
Drive Level		100	uW Max
Insulation Resistance		500 at 100 Vdc± 15Vdc	M Ohm
