C5S-36.000-18-3050-X1-R|36MHz|18pF|台湾安基晶振

产品简介

C5S-36.000-18-3050-X1-R|36MHz|18pF|台湾安基晶振,台湾安基晶振,C5S石英晶振,C5S-36.000-18-3050-X1-R晶振,进口无源晶振,石英晶体谐振器,5032mm晶振,四脚贴片晶振,SMD晶振,频率36MHz,负载18pF,工作温度-40~125°C,频率稳定性50ppm,耐高温晶振,无铅环保晶振,高精度晶振,高级驾驶辅助系统晶振,远程信息处理晶振,货物跟踪应用晶振,汽车动力系统晶振.

产品详情

TH-1 890

C5S-36.000-18-3050-X1-R|36MHz|18pF|台湾安基晶振,台湾安基晶振,C5S石英晶振,C5S-36.000-18-3050-X1-R晶振,进口无源晶振,石英晶体谐振器,5032mm晶振,四脚贴片晶振,SMD晶振,频率36MHz,负载18pF,工作温度-40~125°C,频率稳定性50ppm,耐高温晶振,无铅环保晶振,高精度晶振,高级驾驶辅助系统晶振,远程信息处理晶振,货物跟踪应用晶振,汽车动力系统晶振.

C5S-36.000-18-3050-X1-R|36MHz|18pF|台湾安基晶振特点：

-微处理器晶体单元

-低姿态

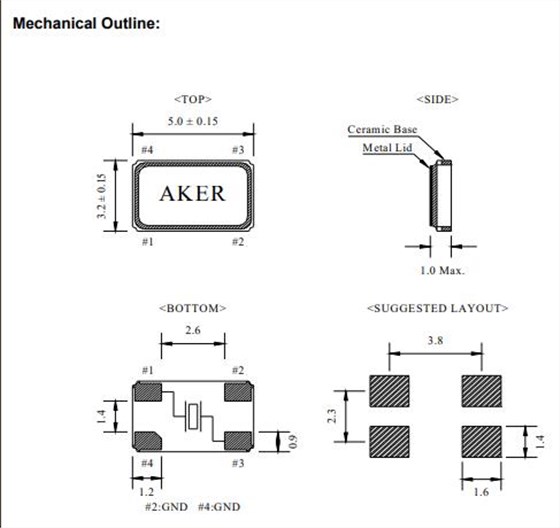

-5.0×3.2mm表面安装- 4 Pad

-产品通用规格

TH-2 890

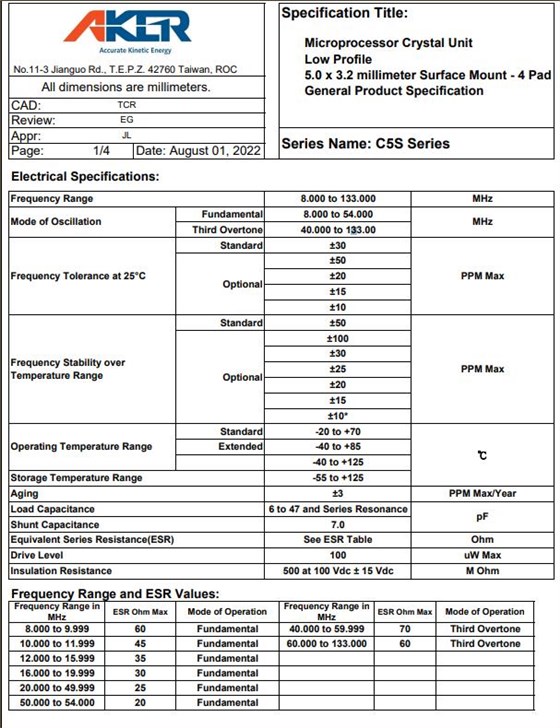

C5S-36.000-18-3050-X1-R|36MHz|18pF|台湾安基晶振规格表

Frequency Range		36	MHz
Mode of Oscillation	Fundamental	8.000 to 54.000	MHz
	Third Overtone	40.000 to 133.000	MHz
Frequency Tolerance at 25°C	Standard	±30	PPM Max (Note 1)
	Optional	±50
		±20
		±15
		±10
Frequency Stability over Temperature Range	Standard	±50	PPM Max (Note 1)
	Optional	±100
		±30
		±25
		±20
		±15
Operating Temperature Range	Standard	-20 to +70	°C
	Extended	-40 to +85

		-40 to +125
Storage Temperature Range		-55 to +125
Aging		±3	PPM Max/Year
Load Capacitance		18	pF
Shunt Capacitance		7.0
Equivalent Series Resistance(ESR)		25	Ohm
Drive Level		100	uW Max
Insulation Resistance		500 at 100 Vdc± 15Vdc	M Ohm
