NKG Crystal|01-CR1-33-10M000-T20-1020M-EXT|TAIHETH

产品简介

NKG Crystal|01-CR1-33-10M000-T20-1020M-EXT|TAIHETH,NKG晶振,01-CR1-33贴片晶振,进口晶振,01-CR1-33-10M000-T20-1020M-EXT晶振,HC-49S晶振,无源晶振,石英晶体谐振器,频率10MHz,负载20pF,工作温度-40~85°C,频率稳定性20ppm,高稳定性晶振,高质量晶振,抗冲击晶振,单片机晶振,调制解调器晶振,视频设备晶振,消费类产品晶振.

产品详情

TH-1 890

NKG Crystal|01-CR1-33-10M000-T20-1020M-EXT|TAIHETH,NKG晶振,01-CR1-33贴片晶振,进口晶振,01-CR1-33-10M000-T20-1020M-EXT晶振,HC-49S晶振,无源晶振,石英晶体谐振器,频率10MHz,负载20pF,工作温度-40~85°C,频率稳定性20ppm,高稳定性晶振,高质量晶振,抗冲击晶振,单片机晶振,调制解调器晶振,视频设备晶振,消费类产品晶振.

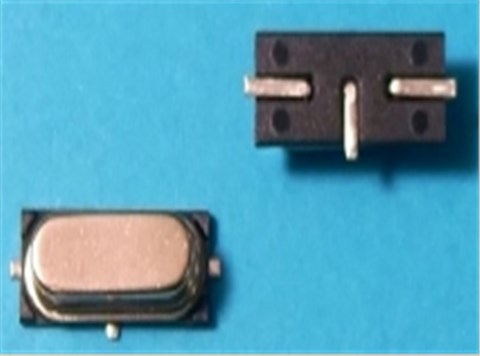

NKG Crystal|01-CR1-33-10M000-T20-1020M-EXT|TAIHETH特点：

•传统的HC-49/S封装在SMD形式与3引线

•最适用于低频

•可靠的密封金属罐包装

TH-2 890

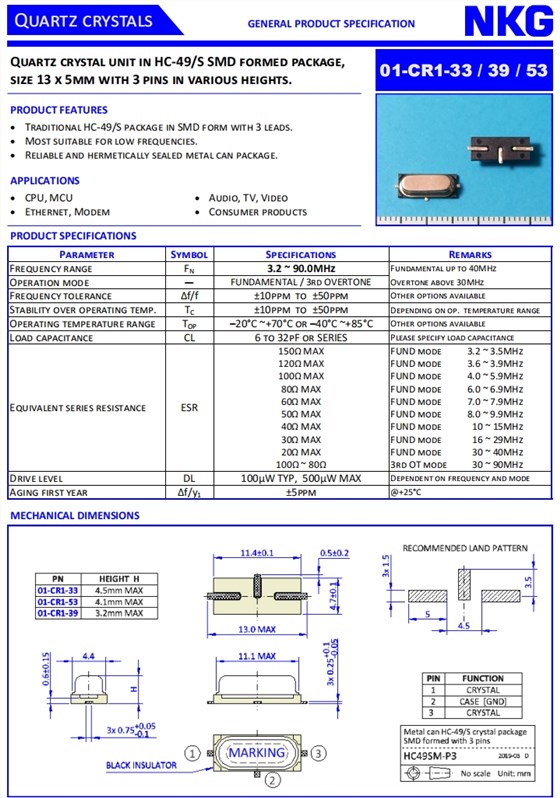

NKG Crystal|01-CR1-33-10M000-T20-1020M-EXT|TAIHETH规格表

PARAMETER	SYMBOL	SPECIFICATIONS	REMARKS
FREQUEN CY RAN GE	FA	10MHZ	FUNDAMENTAL / 3rd OVERTONE
FREQUENCY TOLERANCE	Δf/f	±10PPM	Other options available
STABILITY OVER OPERATING TEMP.	TC	±20PPM	Depending on operating temperature range
OPERATING TEMPERATURE RANGE	Top	-40°C~+85°C	Other options available
LOAD CAPACITAN CE	CL	20PF	PLEASE SPECIFY LOAD CAPACITANCE
EQUIVALENT SERIES RESISTANCE	ESR	150Ω MAX 120Ω MAX 100ΩMAX 80Ω MAX 60Ω MAX 50Ω MAX 40Ω MAX 30Ω MAX 20Ω MAX 100Ω ~ 80Ω	FUND mode 3.2 ~ 3.5MHz FUND mode 3.6 ~ 3.9MHz FUND mode 4.0 ~ 5.9MHz FUND mode 6.0 ~ 6.9MHz FUND mode 7.0 ~ 7.9MHz FUND mode 8.0 ~ 9.9MHz FUND mode 10 ~ 15MHz FUND mode 16 ~ 29MHz FUND mode 30 ~ 40MHz 3rd OT mode 30 ~ 90MHz
DRIVE LEVEL	DL	100μW TYP,500μW MAX	Dependent on frequency and mode
Aging first year	Δf/y1	±5ppm	@+25°C
