亚陶晶振KX201系列在广泛的工作条件下实现了卓越的稳定性,KX201VIS032.768000时钟振荡器

2022-08-01 11:48:48 泰河电子

我们的32.768kHz振荡器(XO)具有适用于各种应用的卓越性能。我们的产品包括世界上最小的32.768kHz晶体振荡器(XO),尺寸仅为2.0x1.6mm(KM 系列)。KM系列旨在应对小型化的挑战,同时保持时序信号的卓越精度。我们还提供KX系列晶体振荡器,它们是业界功耗最低(小于10µA)和最严格稳定性 (+/-20ppm) 的32kHz XO。

由于许多低功耗和便携式应用程序大部分时间都处于待机模式,因此这些系统必须最大限度地降低待机功耗。我们基于32.768kHz的定时源允许这些系统快速转换到待机模式(<10ms),以最大限度地延长电池寿命,而不会牺牲维持准确时钟和日历所需的稳定性(±20ppm)

亚陶晶振KX201系列在广泛的工作条件下实现了卓越的稳定性,KX201VIS032.768000时钟振荡器

FNETHE025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm
FNETHE025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm
FNETHE025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm
FNSURV027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm
FNSURV027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm
FNSURV027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm
FNGEPO002 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 2.048MHz ±50ppm
FNGEPO002 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 2.048MHz ±50ppm
FNGEPO002 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 2.048MHz ±50ppm
FKSSD1025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm
FKSSD1025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm
FKSSD1025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm
UJWIFI026 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 26MHz ±20ppm
UJWIFI026 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 26MHz ±20ppm
UJWIFI026 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 26MHz ±20ppm
FNEPON125 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 125MHz ±50ppm
FNEPON125 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 125MHz ±50ppm
FNEPON125 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 125MHz ±50ppm
FK1330001Z Diodes Incorporated SaRonix-eCera™ FK 13.3333MHz ±25ppm
FK1330001Z Diodes Incorporated SaRonix-eCera™ FK 13.3333MHz ±25ppm
FK1330001Z Diodes Incorporated SaRonix-eCera™ FK 13.3333MHz ±25ppm
FJ2400011 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm
FJ2400011 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm
FJ2400011 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm
FJ2400002 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm
FJ2400002 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm
FJ2400002 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm
FN2500149 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm
FN2500149 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm

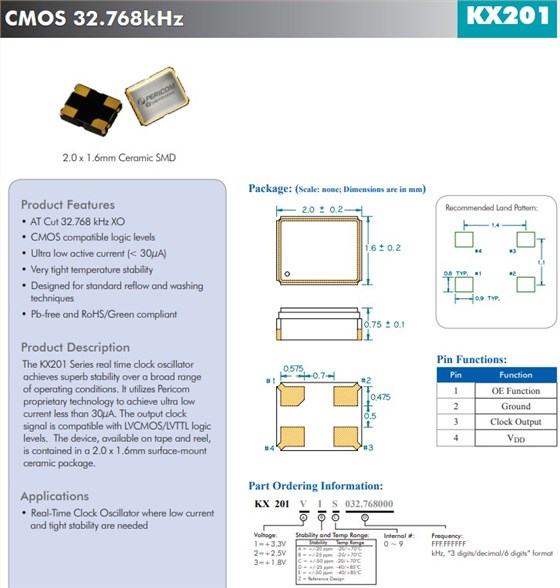

亚陶晶振KX201系列实时时钟振荡器在广泛的工作条件下实现了卓越的稳定性。它利用Pericom专有技术实现低于30μA的超低电流。输出时钟信号与LVCMOS/LVTTL逻辑电平兼容。该器件采用卷带包装,采用2.0x1.6mm表面贴装陶瓷封装。

特征:
AT Cut 32.768kHz XO
CMOS兼容逻辑电平
超低有功电流(< 30μA)
非常严格的温度稳定性
专为标准回流和清洗技术而设计
无铅且符合 RoHS/Green 标准
应用:需要低电流和高度稳定性的实时时钟振荡器

亚陶晶振KX201系列在广泛的工作条件下实现了卓越的稳定性,KX201VIS032.768000时钟振荡器

FN2500149 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm
SXGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm
SXGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm
SXGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm
HX2513F0026.000000 Diodes Incorporated SaRonix-eCera™ HX 26MHz ±50ppm
HX2513F0026.000000 Diodes Incorporated SaRonix-eCera™ HX 26MHz ±50ppm
HX2513F0026.000000 Diodes Incorporated SaRonix-eCera™ HX 26MHz ±50ppm
HX3125006Q Diodes Incorporated SaRonix-eCera™ HX 25MHz ±30ppm
HX3125006Q Diodes Incorporated SaRonix-eCera™ HX 25MHz ±30ppm
HX3125006Q Diodes Incorporated SaRonix-eCera™ HX 25MHz ±30ppm
NX3211C0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm
NX3211C0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm
NX3211C0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm
FJ1600002 Diodes Incorporated SaRonix-eCera™ FJ 16MHz ±50ppm
FJ1600002 Diodes Incorporated SaRonix-eCera™ FJ 16MHz ±50ppm
FJ1600002 Diodes Incorporated SaRonix-eCera™ FJ 16MHz ±50ppm
JX7011D0070.656000 Diodes Incorporated SaRonix-eCera™ JX 70.656MHz ±25ppm
JX7011D0070.656000 Diodes Incorporated SaRonix-eCera™ JX 70.656MHz ±25ppm
JX7011D0070.656000 Diodes Incorporated SaRonix-eCera™ JX 70.656MHz ±25ppm
UJ2600007Z Diodes Incorporated SaRonix-eCera™ UJ 26MHz ±20ppm
UJ2600007Z Diodes Incorporated SaRonix-eCera™ UJ 26MHz ±20ppm
UJ2600007Z Diodes Incorporated SaRonix-eCera™ UJ 26MHz ±20ppm
FJ1120001Z Diodes Incorporated SaRonix-eCera™ FJ 11.2896MHz ±25ppm
FJ1120001Z Diodes Incorporated SaRonix-eCera™ FJ 11.2896MHz ±25ppm
FJ1120001Z Diodes Incorporated SaRonix-eCera™ FJ 11.2896MHz ±25ppm
FDC500026 Diodes Incorporated SaRonix-eCera™ FD 125MHz ±50ppm
FDC500026 Diodes Incorporated SaRonix-eCera™ FD 125MHz ±50ppm
FDC500026 Diodes Incorporated SaRonix-eCera™ FD 125MHz ±50ppm
HX7011C0025.000000 Diodes Incorporated SaRonix-eCera™ HX 25MHz ±25ppm
HX7011C0025.000000 Diodes Incorporated SaRonix-eCera™ HX 25MHz ±25ppm
12

HX7011C0025.000000 Diodes Incorporated SaRonix-eCera™ HX 25MHz ±25ppm
NX5011B0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm
NX5011B0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm
NX5011B0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm
FNA000088Z Diodes Incorporated SaRonix-eCera™ FN 100MHz ±50ppm
FNA000088Z Diodes Incorporated SaRonix-eCera™ FN 100MHz ±50ppm
FNA000088Z Diodes Incorporated SaRonix-eCera™ FN 100MHz ±50ppm
FNA000065 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±25ppm
FNA000065 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±25ppm
FNA000065 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±25ppm
NX71C50003 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm
NX71C50003 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm
NX71C50003 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm
FNC500131 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm
FNC500131 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm
FNC500131 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm
NX71C50001 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±20ppm
NX71C50001 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±20ppm
NX71C50001 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±20ppm
FM3900001Z Diodes Incorporated SaRonix-eCera™ FM 39.0625MHz ±50ppm
FM3900001Z Diodes Incorporated SaRonix-eCera™ FM 39.0625MHz ±50ppm
FM3900001Z Diodes Incorporated SaRonix-eCera™ FM 39.0625MHz ±50ppm
FKA000018Z Diodes Incorporated SaRonix-eCera™ FK 100MHz ±50ppm
FKA000018Z Diodes Incorporated SaRonix-eCera™ FK 100MHz ±50ppm
FKA000018Z Diodes Incorporated SaRonix-eCera™ FK 100MHz ±50ppm
HX3124501Q Diodes Incorporated SaRonix-eCera™ HX 24.545452MHz ±25ppm
HX3124501Q Diodes Incorporated SaRonix-eCera™ HX 24.545452MHz ±25ppm
HX3124501Q Diodes Incorporated SaRonix-eCera™ HX 24.545452MHz ±25ppm
HX31330001 Diodes Incorporated SaRonix-eCera™ HX 33MHz ±50ppm
HX31330001 Diodes Incorporated SaRonix-eCera™ HX 33MHz ±50ppm

亚陶晶振KX201系列在广泛的工作条件下实现了卓越的稳定性,KX201VIS032.768000时钟振荡器

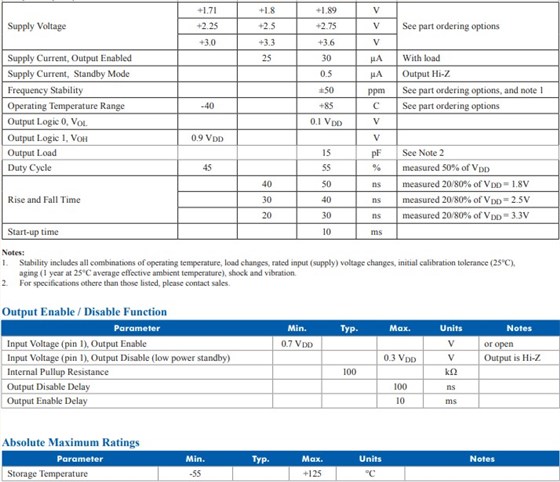

产品参数:
输出逻辑 CMOS
电源电压 (V) 1.8,2.5,3.3
包装尺寸(毫米) 2.0x1.6x0.75mm有源晶振
包装类型 陶瓷缝
稳定性 (PPM) 20到50
产品系列 KX201
频率范围 (MHz) 32.768KHZ
抖动均方根 (ps) <1 PS
垫 4
家庭 千赫XO

HX31330001 Diodes Incorporated SaRonix-eCera™ HX 33MHz ±50ppm
HX3212F0040.000000 Diodes Incorporated SaRonix-eCera™ HX 40MHz ±50ppm
HX3212F0040.000000 Diodes Incorporated SaRonix-eCera™ HX 40MHz ±50ppm
HX3212F0040.000000 Diodes Incorporated SaRonix-eCera™ HX 40MHz ±50ppm
SX10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm
SX10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm
SX10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm
HX3127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm
HX3127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm
HX3127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm
HX21480001 Diodes Incorporated SaRonix-eCera™ HX 48MHz ±50ppm
HX21480001 Diodes Incorporated SaRonix-eCera™ HX 48MHz ±50ppm
HX21480001 Diodes Incorporated SaRonix-eCera™ HX 48MHz ±50ppm
NX7031E0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm
NX7031E0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm
NX7031E0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm
HX2127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm
HX2127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm
HX2127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm
SHPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm
SHPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm
SHPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm
SQPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm
SQPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm
SQPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm
SN10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm
SN10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm
SN10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm

亚陶晶振KX201系列在广泛的工作条件下实现了卓越的稳定性,KX201VIS032.768000时钟振荡器

KX201 1.82.53.3 2.0 x 1.6 x 0.75 陶瓷缝 20~50 KX201 32.768KHZ <1 4 1.8V/2.5V/3.3V, 2.0x1.6mm, 32.768kHz CMOS 晶体振荡器
KX251 1.82.53.3 2.5 x 2.0 x 0.9 陶瓷缝 20~50 KX251 32.768KHZ <1 4 1.8V/2.5V/3.3V, 2.5x2.0mm, 32.768kHz CMOS 晶体振荡器
KX31Q 3.32.51.8 3.2 x 2.5 陶瓷缝 20~50 KXQ 32.768KHZ <1 4 1.8/2.5/3.3V、3.2x2.5mm、超低电流、32.768KHz、汽车级CMOS晶体振荡器
KX321 1.82.53.3 3.2 x 2.5 x 1.0 陶瓷缝 20~50 KX321 32.768KHZ <1 4 1.8V/2.5V/3.3V, 3.2x2.5mm, 32.768kHz CMOS 晶体振荡器
KX501 1.82.53.3 5.0 x 3.2 x 1.2 陶瓷缝 20~50 KX501 32.768KHZ <1 4 1.8V/2.5V/3.3V, 5.0x3.2mm, 32.768kHz CMOS 晶体振荡器
