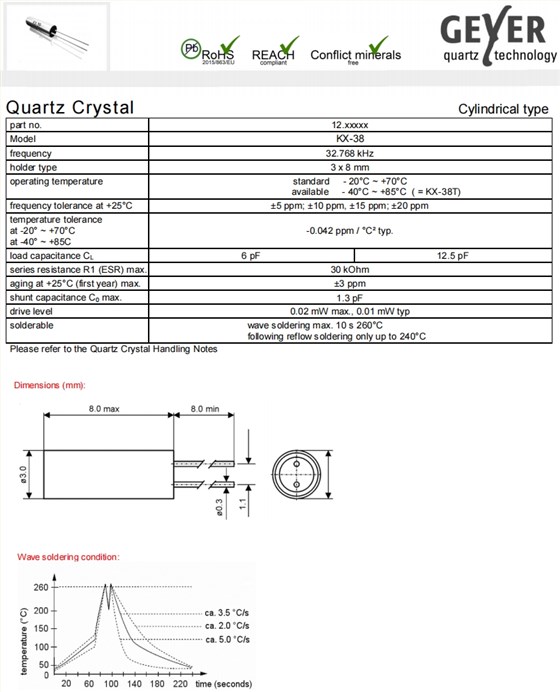

12.80101|KX-38T|32.768KHz|12.5pF|丹麦格耶晶振规格表
mode
part no.
12.80101
model
KX-38T
frequency range
32.768KHz
fundamental
operating temperature
-40~+85℃
frequency toleranceat +25°C
土20 ppm
temperature tolerance
load capacitance CL
12.5 pF
shunt capacitance C0max.
1.3 pF
series resistance R1 (ESR) max.
30 kOhm
aging at +25°℃ (first year) max.
±3 ppm
drive level
0.02 mW max., 0.01 mW typ
solderable
wave soldering max. 10 s 260°C following reflow soldering only up to 240°C
