3.3V/CWX813-018.432M/18.432MHz/SMD7050-4P/CMOS时钟振荡器

3.3V/CWX813-018.432M/18.432MHz/SMD7050-4P/CMOS时钟振荡器，ConnorWinfield康纳温菲尔德晶振CWX8系列，CWX813晶振编码为：CWX813-018.432M，频率为18.432MHz，是一款小体积晶振尺寸7.0x5.0mm四脚贴片晶振，固定频率晶体控制振荡器(XO)。为使用而设计在要求严格频率的应用中稳定性和低抖动，表面贴装CMOS时钟晶体振荡器系列，封装设计用于高密度安装，是质量的最佳选择生产。3.3V或5.0V工作电压，CMOS输出逻辑，可用的频率稳定性: 低抖动< 1pS RMS 三态使能/禁用胶带和卷轴包装 +/-25ppm或+/-50ppm，工作温度范围:-20℃至+70℃。晶体振荡器被广泛用于通讯设备晶振，无线网络晶振，北斗导航晶振，蓝牙模块晶振，GPS定位系统，导航仪，医疗设备，数码电子，物联网等应用。

3.3V/CWX813-018.432M/18.432MHz/SMD7050-4P/CMOS时钟振荡器，参数表

型号	CWX813
频率	18.432MHz
电源电压	3.3V，5.0V
输入电压	Vcc+0.5
输出	CMOS
工作温度	-20 °C ~ +70 °C
保存温度	-55 °C ~ +125 °C

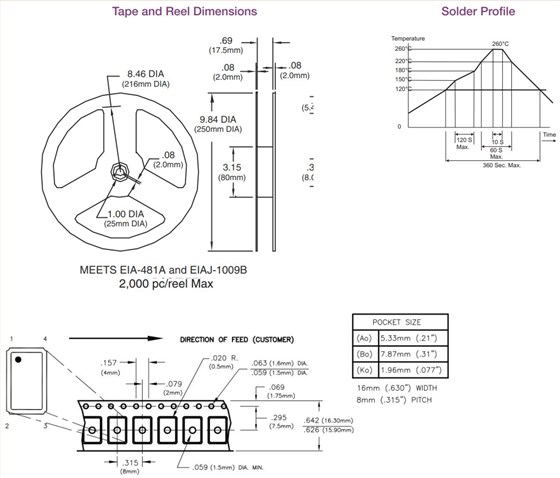

3.3V/CWX813-018.432M/18.432MHz/SMD7050-4P/CMOS时钟振荡器，尺寸图

原厂代码	品牌	型号	频率	工作温度	包装/封装
CWX813-024.0M	ConnorWinfield晶振	CWX813	24MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-012.0M	ConnorWinfield晶振	CWX813	12MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-018.432M	ConnorWinfield晶振	CWX813	18.432MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-001.8432M	ConnorWinfield晶振	CWX813	1.8432MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-007.3728M	ConnorWinfield晶振	CWX813	7.3728MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-010.0M	ConnorWinfield晶振	CWX813	10MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-025.0M	ConnorWinfield晶振	CWX813	25MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-027.0M	康纳温菲尔德晶振	CWX813	27MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-033.0M	ConnorWinfield晶振	CWX813	33MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-040.0M	ConnorWinfield晶振	CWX813	40MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-060.0M	ConnorWinfield晶振	CWX813	60MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-004.0M	ConnorWinfield晶振	CWX813	4MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-016.0M	ConnorWinfield晶振	CWX813	16MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-080.0M	ConnorWinfield晶振	CWX813	80MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-064.0M	ConnorWinfield晶振	CWX813	64MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-100.0M	ConnorWinfield晶振	CWX813	100MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-044.736M	ConnorWinfield晶振	CWX813	44.736MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-012.288M	ConnorWinfield晶振	CWX813	12.288MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-019.44M	ConnorWinfield晶振	CWX813	19.44MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-024.576M	ConnorWinfield晶振	CWX813	24.576MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-030.0M	ConnorWinfield晶振	CWX813	30MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-020.0M	ConnorWinfield晶振	CWX813	20MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-020.48M	ConnorWinfield晶振	CWX813	20.48MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-049.152M	ConnorWinfield晶振	CWX813	49.152MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-050.0M	ConnorWinfield晶振	CWX813	50MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-029.4912M	ConnorWinfield晶振	CWX813	29.4912MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-066.6666M	ConnorWinfield晶振	CWX813	66.6666MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-001.544M	有源晶振	CWX813	1.544MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-016.384M	ConnorWinfield晶振	CWX813	16.384MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-072.0M	ConnorWinfield晶振	CWX813	72MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-014.31818M	ConnorWinfield晶振	CWX813	14.31818MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-015.36M	ConnorWinfield晶振	CWX813	15.36MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-045.0M	ConnorWinfield晶振	CWX813	45MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-003.6864M	ConnorWinfield晶振	CWX813	3.6864MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-008.0M	ConnorWinfield晶振	CWX813	8MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-032.0M	ConnorWinfield晶振	CWX813	32MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-032.768M	ConnorWinfield晶振	CWX813	32.768MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-033.333M	ConnorWinfield晶振	CWX813	33.333MHz	-20°C ~ 70°C	4-SMD, No Lead
