E2SB32E00000YE|Hosonic|Resonator Crystal

E2SB32E00000YE|Hosonic|Resonator CrystalE2SB32E00000YE|Hosonic|Resonator Crystal

产品简介

E2SB32E00000YE|Hosonic|Resonator Crystal,台湾鸿星晶振,E2SB石英晶振,E2SB32E00000YE晶振,进口无源晶振,晶体谐振器,SMD晶体,2520贴片晶振,频率32MHz,负载12pF,工作温度-40~105°C,频率稳定性10ppm,高可靠性晶振,耐高温晶振,低老化晶振,办公自动化晶振,监控摄像头晶振,无线通信晶振,服务器和存储系统晶振.

产品详情

TH-1 890

E2SB32E00000YE|Hosonic|Resonator Crystal,台湾鸿星晶振,E2SB石英晶振,E2SB32E00000YE晶振,进口无源晶振,晶体谐振器,SMD晶体,2520贴片晶振,频率32MHz,负载12pF,工作温度-40~105°C,频率稳定性10ppm,高可靠性晶振,耐高温晶振,低老化晶振,办公自动化晶振,监控摄像头晶振,无线通信晶振,服务器和存储系统晶振.

E2SB32E00000YE|Hosonic|Resonator Crystal特点：

•非常紧凑和薄(2.5*2.0*0.65mmmax)

•频率范围为12M至62.5M，带Fund

•优异的电气性能，是OA(办公自动化)，AV(视听)，蓝牙和无线局域网应用的理想选择
•优异的耐热性和抗震性
•无铅，满足使用无铅焊料的回流剖面要求

TH-2 890

E2SB32E00000YE|Hosonic|Resonator Crystal规格表

Item Type E2SB
Frequency Range F0 32 MHz
Mode of Vibration Fundamental
Load Capacitance CL 12 pF
Frequency Tolerance ΔF/ F0 ±10ppm(At 25℃)
EquivalentSeries Resistance ESR 50 Ω max.
Temperature Stability TC ±10ppm(Refer to 25℃)
Operating Temperature Range TOPR -40~+105℃
Storage Temperature Range TSTG -55~+125℃
Shunt Capacitance C0 3pF max.
Insulator Resistance IR 500MΩmin. (At 100VDC)
Drive Level DL 50μW(100μW max.)
Aging Fa ±2ppm max. (At 25℃,First year)
Packing Unit 3000pcs/reel

TH-3 890

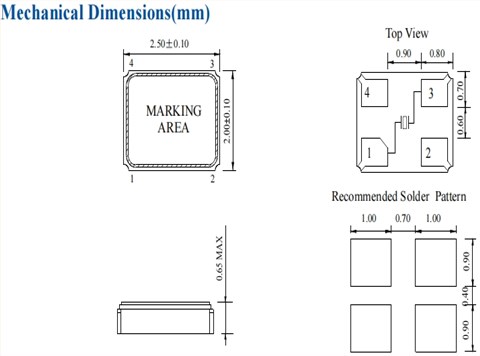

E2SB32E00000YE|Hosonic|Resonator Crystal尺寸图

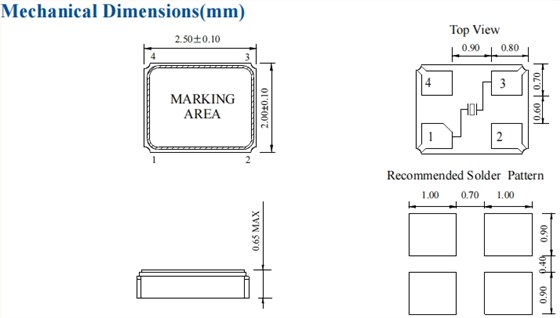

E2SB-1

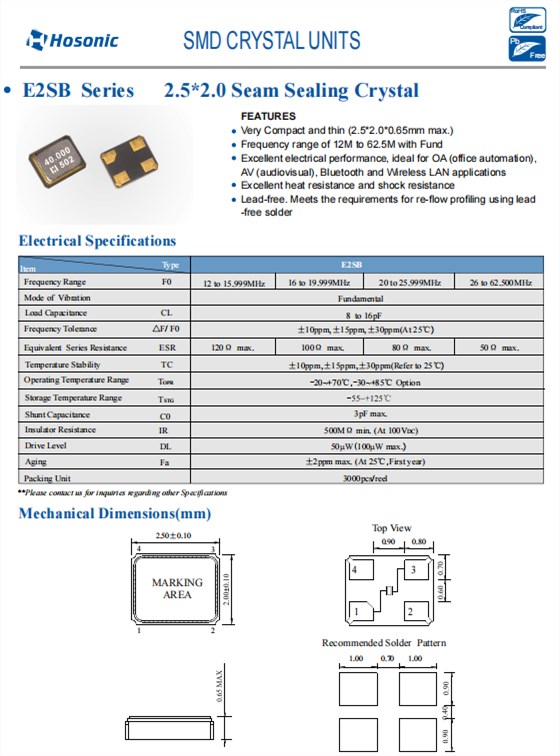

E2SB

原厂编码 制造厂家 型号 频率 负载电容 频率容差 频率稳定度 尺寸
E3FB16.0000F18E33 Hosonic晶振 E3FB 16MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB17.0000F18E33 Hosonic晶振 E3FB 17MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB18.0000F18E33 Hosonic晶振 E3FB 18MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB19.0000F18E33 Hosonic晶振 E3FB 19MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB20.0000F18E33 Hosonic晶振 E3FB 20MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB21.0000F18E33 Hosonic晶振 E3FB 21MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB22.0000F18E33 Hosonic晶振 E3FB 22MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB23.0000F18E33 Hosonic晶振 E3FB 23MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB24.0000F18E33 Hosonic晶振 E3FB 24MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB25.0000F18E33 Hosonic晶振 E3FB 25MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB26.0000F18E33 Hosonic晶振 E3FB 26MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB27.0000F18E33 Hosonic晶振 E3FB 27MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB28.0000F18E33 Hosonic晶振 E3FB 28MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB29.0000F18E33 Hosonic晶振 E3FB 29MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB30.0000F18E33 Hosonic晶振 E3FB 30MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB31.0000F18E33 Hosonic晶振 E3FB 31MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB32.0000F18E33 Hosonic晶振 E3FB 32MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB33.0000F18E33 Hosonic晶振 E3FB 33MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB34.0000F18E33 Hosonic晶振 E3FB 34MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB35.0000F18E33 Hosonic晶振 E3FB 35MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB36.0000F18E33 Hosonic晶振 E3FB 36MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB37.0000F18E33 Hosonic晶振 E3FB 37MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB38.0000F18E33 Hosonic晶振 E3FB 38MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB39.0000F18E33 Hosonic晶振 E3FB 39MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB40.0000F18E33 Hosonic晶振 E3FB 40MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB41.0000F18E33 Hosonic晶振 E3FB 41MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB42.0000F18E33 Hosonic晶振 E3FB 42MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB43.0000F18E33 Hosonic晶振 E3FB 43MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB44.0000F18E33 Hosonic晶振 E3FB 44MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB45.0000F18E33 Hosonic晶振 E3FB 45MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB46.0000F18E33 Hosonic晶振 E3FB 46MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB47.0000F18E33 Hosonic晶振 E3FB 47MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB48.0000F18E33 Hosonic晶振 E3FB 48MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB49.0000F18E33 Hosonic晶振 E3FB 49MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB50.0000F18E33 Hosonic晶振 E3FB 50MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB51.0000F18E33 Hosonic晶振 E3FB 51MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB52.0000F18E33 Hosonic晶振 E3FB 52MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB53.0000F18E33 Hosonic晶振 E3FB 53MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB54.0000F18E33 Hosonic晶振 E3FB 54MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB55.0000F18E33 Hosonic晶振 E3FB 55MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB56.0000F18E33 Hosonic晶振 E3FB 56MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB57.0000F18E33 Hosonic晶振 E3FB 57MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB58.0000F18E33 Hosonic晶振 E3FB 58MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB59.0000F18E33 Hosonic晶振 E3FB 59MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB60.0000F18E33 Hosonic晶振 E3FB 60MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB61.0000F18E33 Hosonic晶振 E3FB 61MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB62.0000F18E33 Hosonic晶振 E3FB 62MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB63.0000F18E33 Hosonic晶振 E3FB 63MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB64.0000F18E33 Hosonic晶振 E3FB 64MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB65.0000F18E33 Hosonic晶振 E3FB 65MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB66.0000F18E33 Hosonic晶振 E3FB 66MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E2SB10.0000F10E12 Hosonic晶振 E2SB 10MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB12.0000F10E11 Hosonic晶振 E2SB 12MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.55 mm
E2SB16.0000F10E12 Hosonic晶振 E2SB 16MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB17.0000F10E12 Hosonic晶振 E2SB 17MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB18.4320F10E12 Hosonic晶振 E2SB 18.432MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB18.0000F10E12 Hosonic晶振 E2SB 18MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB19.0000F10E12 Hosonic晶振 E2SB 19MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB20.0000F10E12 Hosonic晶振 E2SB 20MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB21.0000F10E12 Hosonic晶振 E2SB 21MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB22.0000F10E12 Hosonic晶振 E2SB 22MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB23.0000F10E12 Hosonic晶振 E2SB 23MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB24.0000F10E12 Hosonic晶振 E2SB 24MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB25.0000F10E12 Hosonic晶振 E2SB 25MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E49A12E00000ME Hosonic晶振 E49A 12 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A13E00000ME Hosonic晶振 E49A 13 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A14E00000ME Hosonic晶振 E49A 14 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A15E00000ME Hosonic晶振 E49A 15 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A16E00000ME Hosonic晶振 E49A 16 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A17E00000ME Hosonic晶振 E49A 17 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A18E00000ME Hosonic晶振 E49A 18 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A19E00000ME Hosonic晶振 E49A 19 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A20E00000ME Hosonic晶振 E49A 20 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A21E00000ME Hosonic晶振 E49A 21 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A22E00000ME Hosonic晶振 E49A 22 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A23E00000ME Hosonic晶振 E49A 23 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A24E00000ME Hosonic晶振 E49A 24 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A25E00000ME Hosonic晶振 E49A 25 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A26E00000ME Hosonic晶振 E49A 26 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A27E00000ME Hosonic晶振 E49A 27 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A28E00000ME Hosonic晶振 E49A 28 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A29E00000ME Hosonic晶振 E49A 29 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A30E00000ME Hosonic晶振 E49A 30 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A31E00000ME Hosonic晶振 E49A 31 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A32E00000ME Hosonic晶振 E49A 32 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A33E00000ME Hosonic晶振 E49A 33 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A34E00000ME Hosonic晶振 E49A 34 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A35E00000ME Hosonic晶振 E49A 35 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A36E00000ME Hosonic晶振 E49A 36 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A37E00000ME Hosonic晶振 E49A 37 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A38E00000ME Hosonic晶振 E49A 38 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A39E00000ME Hosonic晶振 E49A 39 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A40E00000ME Hosonic晶振 E49A 40 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A41E00000ME Hosonic晶振 E49A 41 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A42E00000ME Hosonic晶振 E49A 42 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A43E00000ME Hosonic晶振 E49A 43 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A44E00000ME Hosonic晶振 E49A 44 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A45E00000ME Hosonic晶振 E49A 45 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A46E00000ME Hosonic晶振 E49A 46 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A47E00000ME Hosonic晶振 E49A 47 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A48E00000ME Hosonic晶振 E49A 48 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A49E00000ME Hosonic晶振 E49A 49 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A50E00000ME Hosonic晶振 E49A 50 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A51E00000ME Hosonic晶振 E49A 51 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A52E00000ME Hosonic晶振 E49A 52 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A53E00000ME Hosonic晶振 E49A 53 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A54E00000ME Hosonic晶振 E49A 54 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A55E00000ME Hosonic晶振 E49A 55 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A56E00000ME Hosonic晶振 E49A 56 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A57E00000ME Hosonic晶振 E49A 57 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E2SB26.0000F10E12 Hosonic晶振 E2SB 26MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB27.0000F10E12 Hosonic晶振 E2SB 27MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB28.0000F10E12 Hosonic晶振 E2SB 28MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB29.0000F10E12 Hosonic晶振 E2SB 29MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB30.0000F10E12 Hosonic晶振 E2SB 30MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB31.0000F10E12 Hosonic晶振 E2SB 31MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB32.0000F10E12 Hosonic晶振 E2SB 32MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB33.0000F10E12 Hosonic晶振 E2SB 33MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB34.0000F10E12 Hosonic晶振 E2SB 34MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB35.0000F10E12 Hosonic晶振 E2SB 35MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB36.0000F10E12 Hosonic晶振 E2SB 36MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB37.0000F10E12 Hosonic晶振 E2SB 37MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB38.0000F10E12 Hosonic晶振 E2SB 38MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB39.0000F10E12 Hosonic晶振 E2SB 39MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB40.0000F10E12 Hosonic晶振 E2SB 40MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB41.0000F10E12 Hosonic晶振 E2SB 41MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB42.0000F10E12 Hosonic晶振 E2SB 42MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB43.0000F10E12 Hosonic晶振 E2SB 43MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB44.0000F10E12 Hosonic晶振 E2SB 44MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB45.0000F10E12 Hosonic晶振 E2SB 45MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB46.0000F10E12 Hosonic晶振 E2SB 46MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB47.0000F10E12 Hosonic晶振 E2SB 47MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB48.0000F10E12 Hosonic晶振 E2SB 48MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB49.0000F10E12 Hosonic晶振 E2SB 49MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB50.0000F10E12 Hosonic晶振 E2SB 50MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB51.0000F10E12 Hosonic晶振 E2SB 51MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB52.0000F10E12 Hosonic晶振 E2SB 52MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB53.0000F10E12 Hosonic晶振 E2SB 53MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB54.0000F10E12 Hosonic晶振 E2SB 54MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB55.0000F10E12 Hosonic晶振 E2SB 55MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB56.0000F10E12 Hosonic晶振 E2SB 56MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E3SB13.0000F18E22 Hosonic晶振 E3SB 13 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB14.0000F18E22 Hosonic晶振 E3SB 14 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB15.0000F18E22 Hosonic晶振 E3SB 15 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB16.0000F18E22 Hosonic晶振 E3SB 16 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB17.0000F18E22 Hosonic晶振 E3SB 17 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB18.0000F18E22 Hosonic晶振 E3SB 18 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB19.0000F18E22 Hosonic晶振 E3SB 19 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB20.0000F18E22 Hosonic晶振 E3SB 20 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB21.0000F18E22 Hosonic晶振 E3SB 21 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB22.0000F18E22 Hosonic晶振 E3SB 22 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB23.0000F18E22 Hosonic晶振 E3SB 23 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB24.0000F18E22 Hosonic晶振 E3SB 24 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB25.0000F18E22 Hosonic晶振 E3SB 25 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB26.0000F18E22 Hosonic晶振 E3SB 26 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB27.0000F18E22 Hosonic晶振 E3SB 27 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB28.0000F18E22 Hosonic晶振 E3SB 28 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB29.0000F18E22 Hosonic晶振 E3SB 29 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB30.0000F18E22 Hosonic晶振 E3SB 30 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB31.0000F18E22 Hosonic晶振 E3SB 31 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB32.0000F18E22 Hosonic晶振 E3SB 32 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB33.0000F18E22 Hosonic晶振 E3SB 33 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB34.0000F18E22 Hosonic晶振 E3SB 34 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB35.0000F18E22 Hosonic晶振 E3SB 35 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB36.0000F18E22 Hosonic晶振 E3SB 36 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB37.0000F18E22 Hosonic晶振 E3SB 37 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB38.0000F18E22 Hosonic晶振 E3SB 38 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB39.0000F18E22 Hosonic晶振 E3SB 39 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB40.0000F18E22 Hosonic晶振 E3SB 40 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB41.0000F18E22 Hosonic晶振 E3SB 41 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB42.0000F18E22 Hosonic晶振 E3SB 42 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB43.0000F18E22 Hosonic晶振 E3SB 43 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB44.0000F18E22 Hosonic晶振 E3SB 44 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB45.0000F18E22 Hosonic晶振 E3SB 45MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB46.0000F18E22 Hosonic晶振 E3SB 46MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB47.0000F18E22 Hosonic晶振 E3SB 47MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB48.0000F18E22 Hosonic晶振 E3SB 48MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB49.0000F18E22 Hosonic晶振 E3SB 49MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB50.0000F18E22 Hosonic晶振 E3SB 50MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB51.0000F18E22 Hosonic晶振 E3SB 51MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB52.0000F18E22 Hosonic晶振 E3SB 52MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB53.0000F18E22 Hosonic晶振 E3SB 53MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB54.0000F18E22 Hosonic晶振 E3SB 54MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB55.0000F18E22 Hosonic晶振 E3SB 55MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB56.0000F18E22 Hosonic晶振 E3SB 56MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
TH-6 890

上一页 余下全文

1/5

我要下单

  • 姓名
  • 手机
  • 留言

关于“台湾鸿星晶振,E2SB石英晶振,进口无源晶振,晶体谐振器,SMD晶体,2520贴片晶振,高可靠性晶振,耐高温晶振,低老化晶振,办公自动化晶振,监控摄像头晶振,无线通信晶振,服务器和存储系统晶振”的相关产品

SEIKO晶振,石英晶振,SC-32T晶振SEIKO晶振,石英晶振,SC-32T晶振KDS晶振,石英晶振,贴片晶振,DSX321SH晶振KDS晶振,石英晶振,贴片晶振,DSX321SH晶振

KDS晶振,石英晶振,贴片晶振,DSX530GA晶振KDS晶振,石英晶振,贴片晶振,DSX530GA晶振KDS晶振,石英晶振,贴片晶振,DSX1612SL晶振KDS晶振,石英晶振,贴片晶振,DSX1612SL晶振

KDS晶振,石英晶振,贴片晶振,DST520晶振KDS晶振,石英晶振,贴片晶振,DST520晶振IQD CRYSTAL|IQXC-26|LFXTAL078691Cutt|1612无源晶振IQD CRYSTAL|IQXC-26|LFXTAL078691Cutt|1612无源晶振

英国IQD晶振|IQXC-42|LFXTAL081781RL3K|2016贴片晶振英国IQD晶振|IQXC-42|LFXTAL081781RL3K|2016贴片晶振ABLS7M2-12.288MHZ-D2Y-T,12.288MHz,Abracon无线应用晶振ABLS7M2-12.288MHZ-D2Y-T,12.288MHz,Abracon无线应用晶振

ABLSG-24.576MHZ-D2Y-F-T,Abracon无源晶振,无线应用晶振ABLSG-24.576MHZ-D2Y-F-T,Abracon无源晶振,无线应用晶振DSC1003DI2-024.5760,2520mm,24.576MHz,Microchip闭路电视晶振DSC1003DI2-024.5760,2520mm,24.576MHz,Microchip闭路电视晶振

热点推荐

时钟振荡器XO57CTECNA12M电信设备专用晶振汽车音响控制器专用晶振403C35D28M63636XCO时钟振荡器C04310-32.000-EXT-T-TR支持微控制器应用ABS07W-32.768KHZ-J-2-T音叉晶体可实现最佳的电路内性能402F24011CAR非常适合支持各种商业和工业应用

返回顶部 返回头部

晶振快速通道

FAST TRACK
