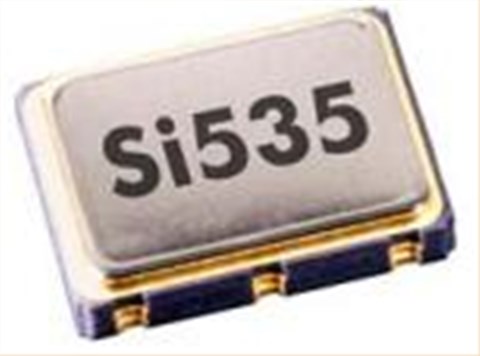

Skyworks晶体,536FB156M250DG,LVDS晶振,6G以太网晶振特点
•可与任意速率输出频率从100MHz到312.5MHz
•第三代DSPLL®具有卓越的抖动性能和高电源噪声抑制
•频率稳定性优于SAW-based振荡器
•具备LVPECL和LVDS输出
•3.3和2.5 V电源选项
•行业标准的5 × 7mm封装和引脚
•无铅，符合RoHS标准
Skyworks晶体,536FB156M250DG,LVDS晶振,6G以太网晶振规格表
项目
符号
规格说明
条件
额定频率
f_nom
156.25MHz
请联系我们以便获取其它可用频率的相关信息
电源电压
Vcc
2.5V
储存温度
T_stg
-55℃~+125℃
裸存
工作温度
T_use
-40℃~ +85℃
频率稳定性
f_tol
±20 ppm
+25℃,超出标准的规格说明请联系我们以便获取相关信息
电源电流
IDD
98mA Max
LVDS
对称性（占空比）
SYM
45%~55%
在输出交叉点
输出电压
VOD
0.9VPP Max
LVDS
VO
1.275V Max
输入电压
VIH
0.75%×VDD Min
VIL
0.5VMax
上升下降时间
tr/tf
350ps Max
LVDS
起始时间
t str
10ms Max
相位抖动
tpj
0.40ps Max
LVDS

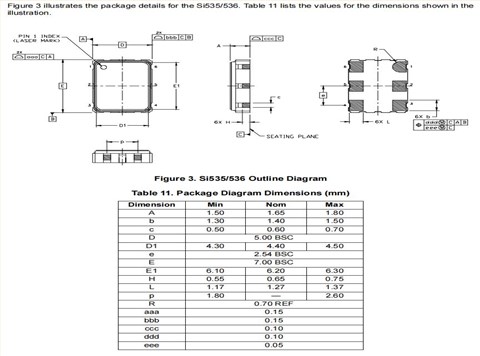

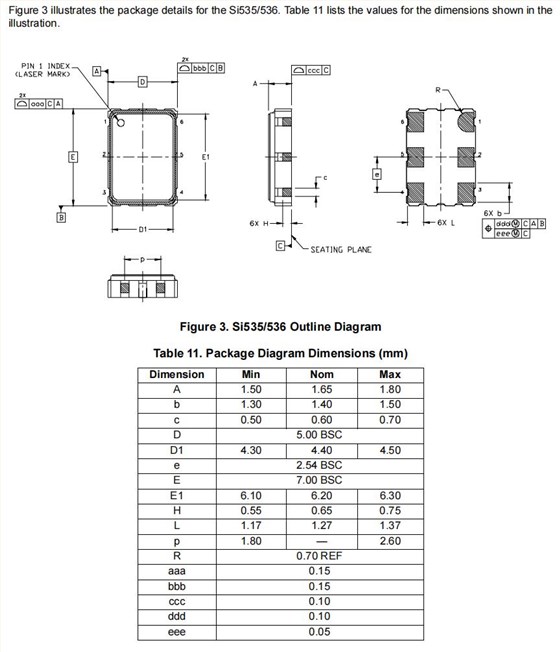

Skyworks晶体,536FB156M250DG,LVDS晶振,6G以太网晶振尺寸图
| 原厂编码 | 品牌 | 型号 | 频率 | 输出 | 电压 | 频率稳定性 | 工作温度 |
| 536BB125M000DG | Skyworks Solutions Inc. | Si536 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536FB125M000DG | Skyworks Solutions Inc. | Si536 | 125 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB156M250DG | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536AB156M250DG | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB156M250DG | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AC125M000DG | Skyworks Solutions Inc. | Si536 | 125 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC156M250DG | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BB000172DGR | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB000175DGR | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB106M250DGR | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB150M000DGR | Skyworks Solutions Inc. | Si536 | 150 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB155M520DGR | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB159M375DGR | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BC000172DGR | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC000175DGR | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC000292DGR | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC000305DGR | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC106M250DGR | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC155M520DGR | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC159M375DGR | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC312M500DGR | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536FB000172DGR | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB000175DGR | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB000292DGR | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB000305DGR | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB106M250DGR | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB150M000DGR | Skyworks Solutions Inc. | Si536 | 150 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB155M520DGR | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB159M375DGR | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FC000172DGR | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC000175DGR | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC000292DGR | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC000305DGR | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC000338DGR | Skyworks Solutions Inc. | Si536 | 338 kHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC106M250DGR | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC150M000DGR | Skyworks Solutions Inc. | Si536 | 150 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC155M520DGR | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC156M250DGR | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC159M375DGR | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC212M500DGR | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC312M500DGR | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC159M375DG | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC212M500DG | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC312M500DG | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536BB000172DG | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB000175DG | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB106M250DG | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB150M000DG | Skyworks Solutions Inc. | Si536 | 150 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB155M520DG | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB159M375DG | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BC000172DG | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC000175DG | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC000292DG | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC000305DG | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC106M250DG | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC155M520DG | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC159M375DG | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC312M500DG | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536FB000172DG | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB000175DG | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB000292DG | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB000305DG | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB106M250DG | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB150M000DG | Skyworks Solutions Inc. | Si536 | 150 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB155M520DG | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB159M375DG | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FC000172DG | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC000175DG | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC000292DG | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC000305DG | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC000338DG | Skyworks Solutions Inc. | Si536 | 338 kHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC106M250DG | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC150M000DG | Skyworks Solutions Inc. | Si536 | 150 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC155M520DG | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC156M250DG | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536AB000335DGR | Skyworks Solutions Inc. | Si536 | 156.2539 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB100M000DGR | Skyworks Solutions Inc. | Si536 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB125M000DGR | Skyworks Solutions Inc. | Si536 | 125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB155M520DGR | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB156M250DGR | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB000292DGR | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB000305DGR | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB000335DGR | Skyworks Solutions Inc. | Si536 | 156.2539 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB100M000DGR | Skyworks Solutions Inc. | Si536 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB125M000DGR | Skyworks Solutions Inc. | Si536 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB156M250DGR | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536EB000119DGR | Skyworks Solutions Inc. | Si536 | 167.331646 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB100M000DGR | Skyworks Solutions Inc. | Si536 | 100 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB125M000DGR | Skyworks Solutions Inc. | Si536 | 125 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB156M250DGR | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB100M000DGR | Skyworks Solutions Inc. | Si536 | 100 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB125M000DGR | Skyworks Solutions Inc. | Si536 | 125 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB156M250DGR | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536AB000335DG | Skyworks Solutions Inc. | Si536 | 156.2539 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB000172DG | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB000175DG | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB000292DG | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB000305DG | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB106M250DG | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB150M000DG | Skyworks Solutions Inc. | Si536 | 150 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB159M375DG | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB312M500DG | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AC000172DG | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC000175DG | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC000292DG | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC106M250DG | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC150M000DG | Skyworks Solutions Inc. | Si536 | 150 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC159M375DG | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC212M500DG | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC312M500DG | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536EB000172DG | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB000175DG | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB000292DG | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB000305DG | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB106M250DG | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB150M000DG | Skyworks Solutions Inc. | Si536 | 150 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB155M520DG | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB159M375DG | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB212M500DG | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB312M500DG | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EC000172DG | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC000175DG | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC000292DG | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC106M250DG | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC150M000DG | Skyworks Solutions Inc. | Si536 | 150 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC155M520DG | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC159M375DG | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC212M500DG | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC312M500DG | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536AB125M000DG | Skyworks Solutions Inc. | Si536 | 125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536EB125M000DG | Skyworks Solutions Inc. | Si536 | 125 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536AB000172DGR | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB000175DGR | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB000292DGR | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB000305DGR | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB106M250DGR | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB150M000DGR | Skyworks Solutions Inc. | Si536 | 150 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB159M375DGR | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB312M500DGR | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AC000172DGR | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC000175DGR | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC000292DGR | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC106M250DGR | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC150M000DGR | Skyworks Solutions Inc. | Si536 | 150 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC159M375DGR | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC212M500DGR | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC312M500DGR | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536EB000172DGR | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB000175DGR | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB000292DGR | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB000305DGR | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB106M250DGR | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB150M000DGR | Skyworks Solutions Inc. | Si536 | 150 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB155M520DGR | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB159M375DGR | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB212M500DGR | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB312M500DGR | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EC000172DGR | Skyworks Solutions Inc. | Si536 | 166.6286 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC000175DGR | Skyworks Solutions Inc. | Si536 | 167.3316 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC000292DGR | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC106M250DGR | Skyworks Solutions Inc. | Si536 | 106.25 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC150M000DGR | Skyworks Solutions Inc. | Si536 | 150 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC155M520DGR | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC159M375DGR | Skyworks Solutions Inc. | Si536 | 159.375 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC212M500DGR | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC312M500DGR | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536AB100M000DG | Skyworks Solutions Inc. | Si536 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536AB155M520DG | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB000292DG | Skyworks Solutions Inc. | Si536 | 161.1328 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB000305DG | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB000335DG | Skyworks Solutions Inc. | Si536 | 156.2539 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB100M000DG | Skyworks Solutions Inc. | Si536 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536EB000119DG | Skyworks Solutions Inc. | Si536 | 167.331646 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB100M000DG | Skyworks Solutions Inc. | Si536 | 100 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB100M000DG | Skyworks Solutions Inc. | Si536 | 100 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536AB212M500DGR | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB212M500DGR | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB312M500DGR | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536FB212M500DGR | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB312M500DGR | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536AB212M500DG | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB212M500DG | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536BB312M500DG | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 536FB212M500DG | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536FB312M500DG | Skyworks Solutions Inc. | Si536 | 312.5 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536EB156M250DG | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 536AC000305DGR | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC000335DGR | Skyworks Solutions Inc. | Si536 | 156.2539 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC100M000DGR | Skyworks Solutions Inc. | Si536 | 100 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC125M000DGR | Skyworks Solutions Inc. | Si536 | 125 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC155M520DGR | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC156M250DGR | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC000335DGR | Skyworks Solutions Inc. | Si536 | 156.2539 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC100M000DGR | Skyworks Solutions Inc. | Si536 | 100 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC125M000DGR | Skyworks Solutions Inc. | Si536 | 125 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC150M000DGR | Skyworks Solutions Inc. | Si536 | 150 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC156M250DGR | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536EC100M000DGR | Skyworks Solutions Inc. | Si536 | 100 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC125M000DGR | Skyworks Solutions Inc. | Si536 | 125 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC156M250DGR | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC100M000DGR | Skyworks Solutions Inc. | Si536 | 100 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC125M000DGR | Skyworks Solutions Inc. | Si536 | 125 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536AC000305DG | Skyworks Solutions Inc. | Si536 | 156.2578 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC000335DG | Skyworks Solutions Inc. | Si536 | 156.2539 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC100M000DG | Skyworks Solutions Inc. | Si536 | 100 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536AC155M520DG | Skyworks Solutions Inc. | Si536 | 155.52 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC000335DG | Skyworks Solutions Inc. | Si536 | 156.2539 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC100M000DG | Skyworks Solutions Inc. | Si536 | 100 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC125M000DG | Skyworks Solutions Inc. | Si536 | 125 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC150M000DG | Skyworks Solutions Inc. | Si536 | 150 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC156M250DG | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536EC100M000DG | Skyworks Solutions Inc. | Si536 | 100 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC125M000DG | Skyworks Solutions Inc. | Si536 | 125 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536EC156M250DG | Skyworks Solutions Inc. | Si536 | 156.25 MHz | LVPECL | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC100M000DG | Skyworks Solutions Inc. | Si536 | 100 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536FC125M000DG | Skyworks Solutions Inc. | Si536 | 125 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 536BC212M500DGR | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 536BC212M500DG | Skyworks Solutions Inc. | Si536 | 212.5 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
Anderson有源晶振|AE-803-N-H-2-4085-3R3-38M400000|7050mm晶振
美国安德森晶振|AE-431-N-H-1-1070-3R3-36M000000|长方形钟振
Anderson晶振|AE-305-N-H-2-4085-3R3-50M000000|正方形钟振
Anderson晶振|210-22-5-4085-3R3-16M384000|温度补偿晶振
Anderson晶振|302-503-02-3-2070-2R8-40M000000|低相噪振荡器
IQD晶振|LFXTAL026380Reel|12SMX-B晶振|7050mm晶振
IQD晶振|4SMX|LFXTAL029659Reel|5032mm晶振
IQD晶振|CFPX-104|LFXTAL061486Reel|5032石英晶振
IQD Crystal|CFPX-218|LFXTAL069404Cutt|超小型无源晶振
IQD晶振|HC-49|LFXTAL053009Bulk|插件石英晶振
