NKG Crystal|SCO8WB32k768WTS-EXT|TAIHETH特点：

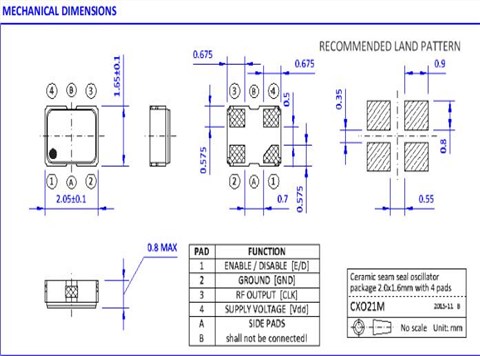

•贴片封装尺寸为2.0 x 1.6 x 0.8mm，带有4个衬垫。

•宽电源电压范围从1.8到3.3 v，非常适合电池使用。

•低电流消耗<100 μ A -理想的便携式设备。

•符合AEC-Q200标准的汽车级产品可供选择。

TH-2 890

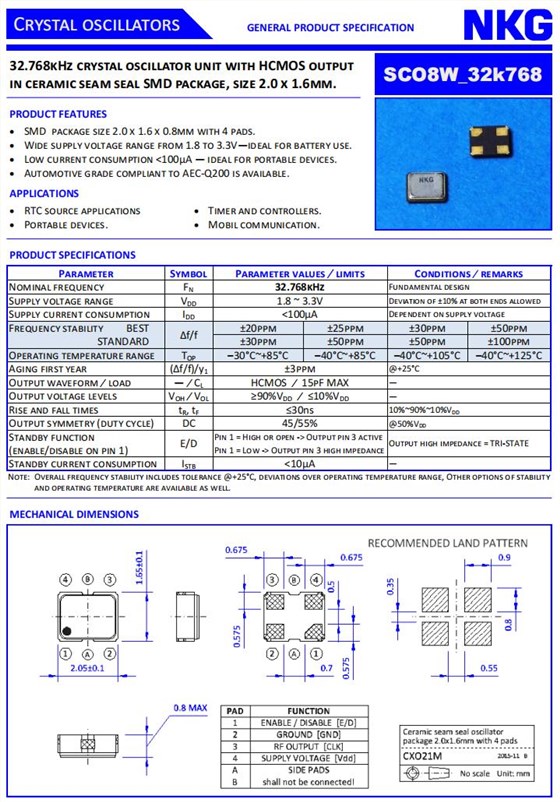

NKG Crystal|SCO8WB32k768WTS-EXT|TAIHETH规格表

PARAMETER	SYMBOL	SPECIFICATIONS	REMARKS
FREQUEN CY RAN GE	FN	32.768KHZ	FUNDAMENTALDESIGN
Supply voltage range	VDD	1.8 ~ 3.3V
Supply current consumption	IDD	<100µA
FREQUENCY TOLERANCE	Δf/f	±50PPM	Other options available
OPERATING TEMPERATURE RANGE	Top	-40°C~+85°C	Other options available
Output waveform /load	— /CL	HCMOS /15pF MAX	-
Output voltage levels	VOH /VOL	≥90%VDD/≤10%VDD	-
Rise and fall times	tR, tF	≤30ns	10%~90%~10%VDD
Output symmetry (duty cycle)	DC	45/55%	@50%VDD
Standby function (enable/disable on pin 1)	E/D	Pin 1 = High or open -> Output pin 3 active Pin 1 = Low -> Output pin 3 high impedance	Output high impedance = TRI-STATE
Standby current consumption	ISTB	<10µA	-
Aging first year	Δf/y1	±3ppm	@+25°C
