SCO6WA32k768WTS-EXT|NKG品牌|32.768K|3225mm

产品简介

SCO6WA32k768WTS-EXT|NKG品牌|32.768K|3225mm,进口晶振,NKG晶振,SCO6W有源晶振,SCO6WA32k768WTS-EXT晶振,石英晶振,3225mm晶振,贴片振荡器,SMD晶体,32.768KHZ晶振,电压3V,工作温度-40~85°C,频率稳定性25ppm,高品质晶振,高稳定性晶振,低老化晶振,无线接入点晶振,通用处理器晶振,办公设备晶振,测试与测量设备晶振.

产品详情

TH-1 890

SCO6WA32k768WTS-EXT|NKG品牌|32.768K|3225mm,进口晶振,NKG晶振,SCO6W有源晶振,SCO6WA32k768WTS-EXT晶振,石英晶振,3225mm晶振,贴片振荡器,SMD晶体,32.768KHZ晶振,电压3V,工作温度-40~85°C,频率稳定性25ppm,高品质晶振,高稳定性晶振,低老化晶振,无线接入点晶振,通用处理器晶振,办公设备晶振,测试与测量设备晶振.

SCO6WA32k768WTS-EXT|NKG品牌|32.768K|3225mm特点：

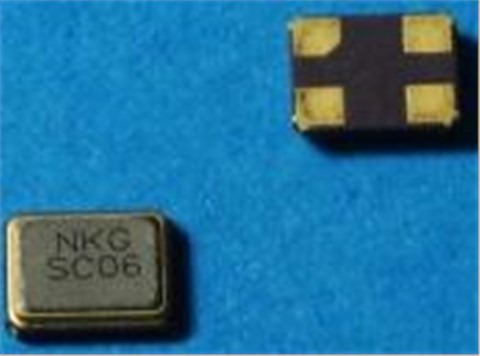

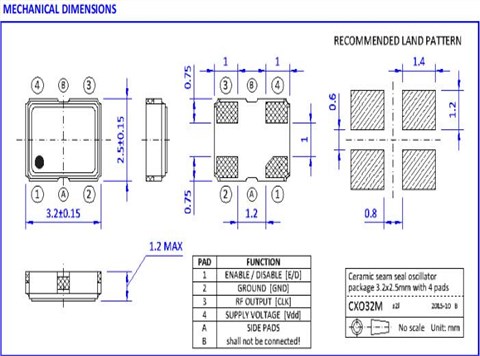

•贴片封装尺寸为3.2 x 2.5x 1.2mm，带有4个衬垫。

•宽电源电压范围从1.8到3.3 v，非常适合电池使用。

•低电流消耗<100 μ A -理想的便携式设备。

•符合AEC-Q200标准的汽车级产品可供选择。

TH-2 890

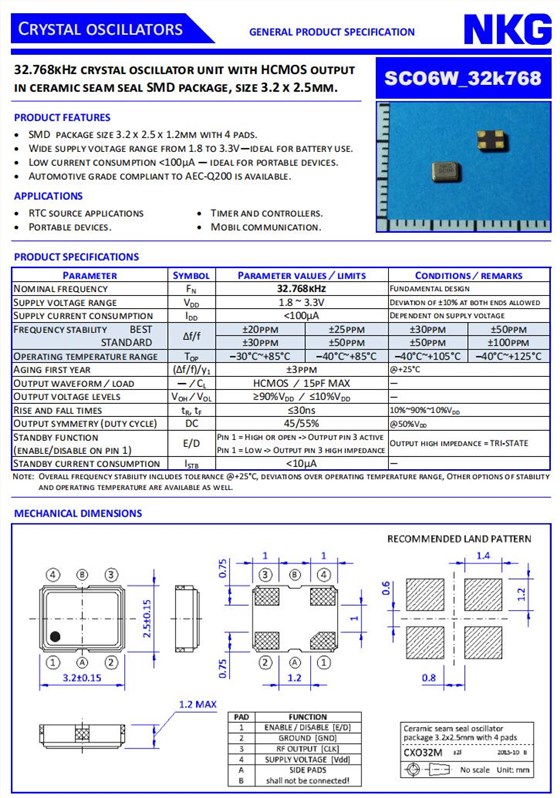

SCO6WA32k768WTS-EXT|NKG品牌|32.768K|3225mm规格表

PARAMETER	SYMBOL	SPECIFICATIONS	REMARKS
FREQUEN CY RAN GE	FN	32.768KHZ	FUNDAMENTALDESIGN
Supply voltage range	VDD	1.8 ~ 3.3V
Supply current consumption	IDD	<100µA
FREQUENCY TOLERANCE	Δf/f	±25PPM	Other options available
OPERATING TEMPERATURE RANGE	Top	-40°C~+85°C	Other options available
Output waveform /load	— /CL	HCMOS /15pF MAX	-
Output voltage levels	VOH /VOL	≥90%VDD/≤10%VDD	-
Rise and fall times	tR, tF	≤30ns	10%~90%~10%VDD
Output symmetry (duty cycle)	DC	45/55%	@50%VDD
Standby function (enable/disable on pin 1)	E/D	Pin 1 = High or open -> Output pin 3 active Pin 1 = Low -> Output pin 3 high impedance	Output high impedance = TRI-STATE
Standby current consumption	ISTB	<10µA	-
Aging first year	Δf/y1	±3ppm	@+25°C
