石英晶体ABM3B-19.200MHZ-10-1-U-T移动电话专用晶振

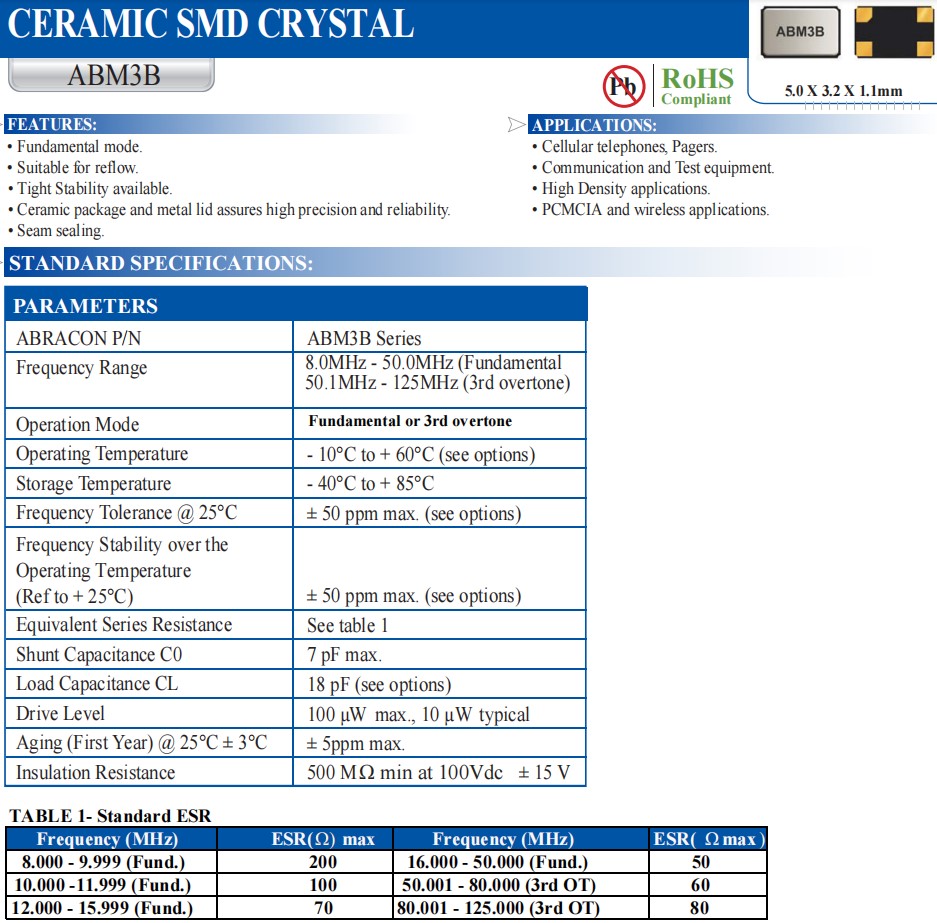

美国Abracon艾博康晶振ABM3B系列，是一款小体积晶振尺寸5.0x3.2mm四脚贴片晶振，石英晶体谐振器，SMD晶振，石英晶体，无铅环保晶振，频率范围：8MHz至125MHz，工作温度范围：-10°C至+60°C。特征：基本的模式，适用于回流，紧密的稳定性，陶瓷封装和金属盖保证了高精度和可靠性，接缝密封。超小型，轻薄型无源晶振，应用于移动电话，寻呼机，通信和测试设备，高密度的应用程序，PCMCIA和无线应用程序。石英晶体ABM3B-19.200MHZ-10-1-U-T移动电话专用晶振
石英晶体ABM3B-19.200MHZ-10-1-U-T移动电话专用晶振，小型贴片石英晶振主要采用了，先进的晶片的抛光工艺技术，是晶体行业中石英晶片研磨技术中表面处理的最高技术，最终使晶片表面更光洁，平行度及平面度更好，大大的降低谐振电阻，使精度得到了很大的提升。改变了传统的生产工艺，使产品在各项参数得到了很大的改良,外观尺寸具有薄型表面贴片型石英晶体谐振器,特别适用于有小型化要求的市场领域,比如智能手机,无线蓝牙,平板电脑等电子数码产品。
| 原厂编码 | 晶振厂家 | 型号 | 频率 | 包装/封装 |
| ABM3B-8.000MHZ-B2-T | Abracon晶振 | ABM3B | 8MHz | 4-SMD, No Lead |
| ABM3B-12.000MHZ-B2-T | Abracon晶振 | ABM3B | 12MHz | 4-SMD, No Lead |
| ABM3B-25.000MHZ-B2-T | Abracon晶振 | ABM3B | 25MHz | 4-SMD, No Lead |
| ABM3B-20.000MHZ-B2-T | Abracon晶振 | ABM3B | 20MHz | 4-SMD, No Lead |
| ABM3B-8.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 8MHz | 4-SMD, No Lead |
| ABM3B-16.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 16MHz | 4-SMD, No Lead |
| ABM3B-16.000MHZ-B2-T | Abracon晶振 | ABM3B | 16MHz | 4-SMD, No Lead |
| ABM3B-10.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 10MHz | 4-SMD, No Lead |
| ABM3B-20.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 20MHz | 4-SMD, No Lead |
| ABM3B-24.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 24MHz | 4-SMD, No Lead |
| ABM3B-24.000MHZ-B4Y-T | Abracon晶振 | ABM3B | 24MHz | 4-SMD, No Lead |
| ABM3B-18.432MHZ-B2-T | Abracon晶振 | ABM3B | 18.432MHz | 4-SMD, No Lead |
| ABM3B-24.000MHZ-R60-D-1-W-T | Abracon晶振 | ABM3B | 24MHz | 4-SMD, No Lead |
| ABM3B-155-12.800MHZ-T | Abracon晶振 | ABM3B | 12.8MHz | 4-SMD, No Lead |
| ABM3B-24.000MHZ-D-1-W-T | Abracon晶振 | ABM3B | 24MHz | 4-SMD, No Lead |
| ABM3B-27.120MHZ-10-D1G-T | Abracon晶振 | ABM3B | 27.12MHz | 4-SMD, No Lead |
| ABM3B-12.000MHZ-12-B4H-T | Abracon晶振 | ABM3B | 12MHz | 4-SMD, No Lead |
| ABM3B-27.120MHZ-10-D2H-T | Abracon晶振 | ABM3B | 27.12MHz | 4-SMD, No Lead |
| ABM3B-25.000MHZ-N-2-X-T | Abracon晶振 | ABM3B | 25MHz | 4-SMD, No Lead |
| ABM3B-30.000MHZ-B2-T | Abracon晶振 | ABM3B | 30MHz | 4-SMD, No Lead |
| ABM3B-14.31818MHZ-B2-T | Abracon晶振 | ABM3B | 14.31818MHz | 4-SMD, No Lead |
| ABM3B-13.000MHZ-B2-T | Abracon晶振 | ABM3B | 13MHz | 4-SMD, No Lead |
| ABM3B-16.384MHZ-B2-T | Abracon晶振 | ABM3B | 16.384MHz | 4-SMD, No Lead |
| ABM3B-24.000MHZ-B2-T | Abracon晶振 | ABM3B | 24MHz | 4-SMD, No Lead |
| ABM3B-24.576MHZ-B2-T | Abracon晶振 | ABM3B | 24.576MHz | 4-SMD, No Lead |
| ABM3B-27.000MHZ-B2-T | Abracon晶振 | ABM3B | 27MHz | 4-SMD, No Lead |
| ABM3B-18.432MHZ-10-1-U-T | Abracon晶振 | ABM3B | 18.432MHz | 4-SMD, No Lead |
| ABM3B-12.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 12MHz | 4-SMD, No Lead |
| ABM3B-25.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 25MHz | 4-SMD, No Lead |
| ABM3B-26.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 26MHz | 4-SMD, No Lead |
| ABM3B-13.560MHZ-10-1-U-T | Abracon晶振 | ABM3B | 13.56MHz | 4-SMD, No Lead |
| ABM3B-14.7456MHZ-10-1-U-T | Abracon晶振 | ABM3B | 14.7456MHz | 4-SMD, No Lead |
| ABM3B-30.000MHZ-10-1-U-T | Abracon晶振 | ABM3B | 30MHz | 4-SMD, No Lead |
| ABM3B-11.0592MHZ-10-1-U-T | Abracon晶振 | ABM3B | 11.0592MHz | 4-SMD, No Lead |
| ABM3B-8.000MHZ-10-D-1-G-T | Abracon晶振 | ABM3B | 8MHz | 4-SMD, No Lead |
| ABM3B-25.000MHZ-D2Y-T | Abracon晶振 | ABM3B | 25MHz | 4-SMD, No Lead |
| ABM3B-25.000MHZ-B4U-T | Abracon晶振 | ABM3B | 25MHz | 4-SMD, No Lead |
| ABM3B-13.824MHZ-B2-T | Abracon晶振 | ABM3B | 13.824MHz | 4-SMD, No Lead |
| ABM3B-48.000MHZ-B2-T | Abracon晶振 | ABM3B | 48MHz | 4-SMD, No Lead |
| ABM3B-12.288MHZ-B2-T | Abracon晶振 | ABM3B | 12.288MHz | 4-SMD, No Lead |
| ABM3B-19.200MHZ-10-1-U-T | Abracon晶振 | ABM3B | 19.2MHz | 4-SMD, No Lead |
| ABM3B-29.4912MHZ-10-1-U-T | Abracon晶振 | ABM3B | 29.4912MHz | 4-SMD, No Lead |
| ABM3B-15.360MHZ-10-1-U-T | Abracon晶振 | ABM3B | 15.36MHz | 4-SMD, No Lead |
