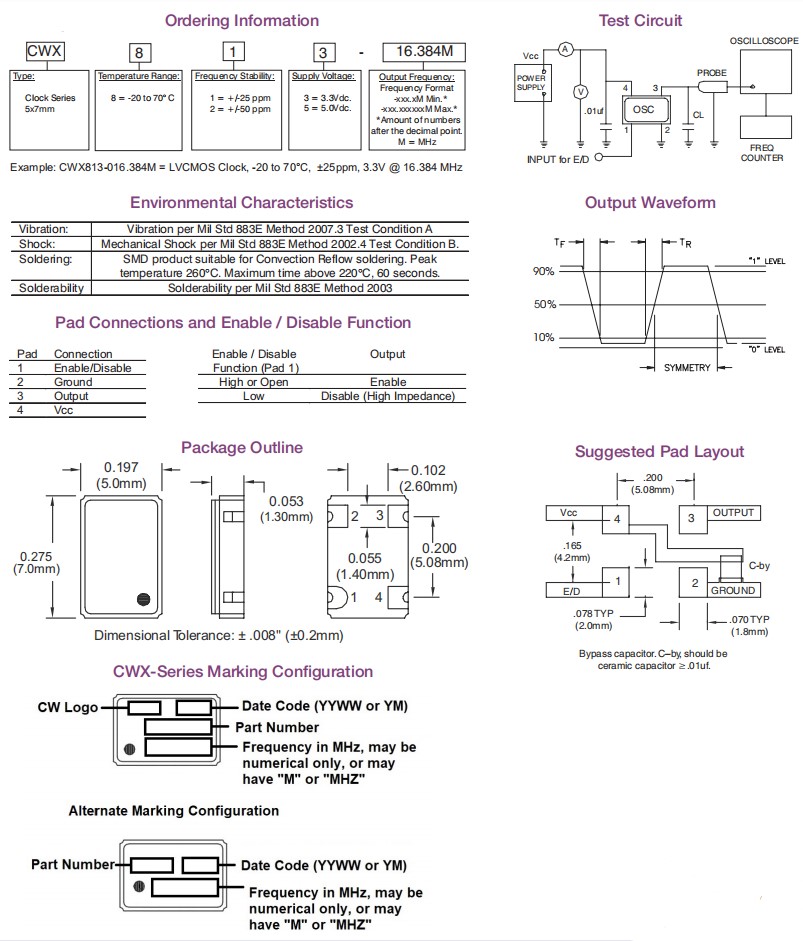

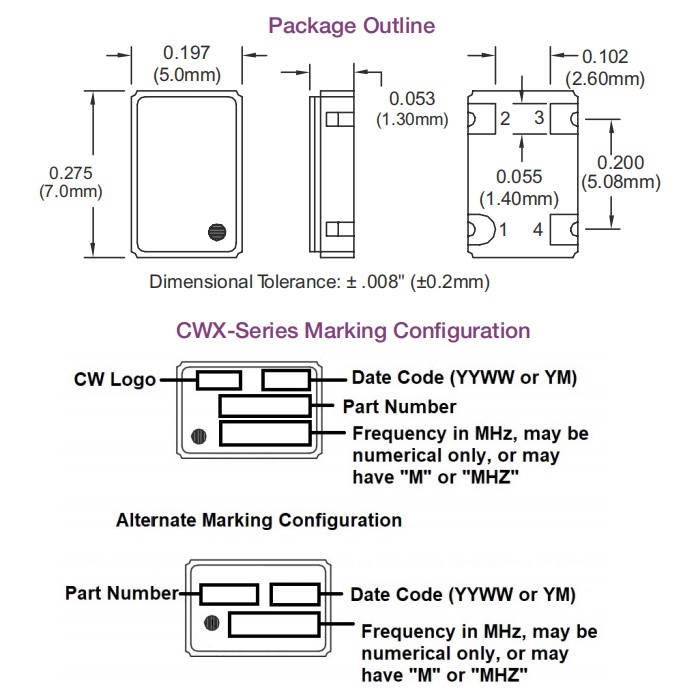

晶振编码查询12.288MHz/CWX815-12.288M/7050mm/ConnorWinfield晶体振荡器
晶振编码查询12.288MHz/CWX815-12.288M/7050mm/ConnorWinfield晶体振荡器
| 型号 | CWX815 |
| 频率 | 12.288MHz |
| 电源电压 | 5.5V |
| 输入电压 | Vcc+0.5 |
| 输出 | CMOS |
| 工作温度 | -20 °C ~ +70 °C |
| 保存温度 |
-55 °C ~ +125 °C |
| 石英晶体振荡器 | 品牌 | 型号 | 频率 | 工作温度 | 包装/封装 |
| CWX815-1.544M | ConnorWinfield晶振 | CWX815 | 1.544MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-1.8432M | ConnorWinfield晶振 | CWX815 | 1.8432MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-3.6864M | ConnorWinfield晶振 | CWX815 | 3.6864MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-4.0M | ConnorWinfield晶振 | CWX815 | 4MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-7.3728M | ConnorWinfield晶振 | CWX815 | 7.3728MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-8.0M | ConnorWinfield晶振 | CWX815 | 8MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-10.0M | ConnorWinfield晶振 | CWX815 | 10MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-12.0M | ConnorWinfield晶振 | CWX815 | 12MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-12.288M | ConnorWinfield晶振 | CWX815 | 12.288MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-14.31818M | ConnorWinfield晶振 | CWX815 | 14.31818MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-15.36M | ConnorWinfield晶振 | CWX815 | 15.36MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-16.0M | ConnorWinfield晶振 | CWX815 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-16.384M | 康纳温菲尔德晶振 | CWX815 | 16.384MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-18.432M | ConnorWinfield晶振 | CWX815 | 18.432MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-19.44M | ConnorWinfield晶振 | CWX815 | 19.44MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-20.0M | ConnorWinfield晶振 | CWX815 | 20MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-20.48M | ConnorWinfield晶振 | CWX815 | 20.48MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-24.0M | ConnorWinfield晶振 | CWX815 | 24MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-24.576M | ConnorWinfield晶振 | CWX815 | 24.576MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-25.0M | ConnorWinfield晶振 | CWX815 | 25MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-27.0M | ConnorWinfield晶振 | CWX815 | 27MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-29.4912M | ConnorWinfield晶振 | CWX815 | 29.4912MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-30.0M | ConnorWinfield晶振 | CWX815 | 30MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-32.0M | ConnorWinfield晶振 | CWX815 | 32MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-32.768M | ConnorWinfield晶振 | CWX815 | 32.768MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-33.0M | ConnorWinfield晶振 | CWX815 | 33MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-33.333M | ConnorWinfield晶振 | CWX815 | 33.333MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-40.0M | ConnorWinfield晶振 | CWX815 | 40MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-44.736M | ConnorWinfield晶振 | CWX815 | 44.736MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-45.0M | 贴片晶振 | CWX815 | 45MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-49.152M | ConnorWinfield晶振 | CWX815 | 49.152MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-50.0M | ConnorWinfield晶振 | CWX815 | 50MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-60.0M | ConnorWinfield晶振 | CWX815 | 60MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-64.0M | ConnorWinfield晶振 | CWX815 | 64MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-66.6666M | ConnorWinfield晶振 | CWX815 | 66.6666MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-72.0M | ConnorWinfield晶振 | CWX815 | 72MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-80.0M | ConnorWinfield晶振 | CWX815 | 80MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-100.0M | ConnorWinfield晶振 | CWX815 | 100MHz | -20°C ~ 70°C | 4-SMD, No Lead |
