晶振编码查询/ELS13-32.768kHz-9-T/7015mm/32.768KHz/AEL时钟晶振

返回列表 来源：泰河盛 查看手机网址
扫一扫!晶振编码查询/ELS13-32.768kHz-9-T/7015mm/32.768KHz/AEL时钟晶振扫一扫!
 浏览：- 发布日期：2024-03-14 08:58:42【大 中 小】

晶振编码查询/ELS13-32.768kHz-9-T/7015mm/32.768KHz/AEL时钟晶振

PARAMETERS MAX (Unless otherwise noted)
Frequency 32.768 kHz
Operating Temperature -40°C to +85°C
Turn Over Temperature +20°C to +30°C
Storage Temperature -55°C to +125°C
Frequency Tolerance @ 25°C ± 20PPM, see options
Frequency Coefficient -0.035±0.01 PPM / (△°C)2
Equivalent Series Resistance (R1) 65kOhms
Load Capacitance (CL) 12.5 pF, see options
Drive Level 1 μW
Aging@25°C±3°C First year ± 3ppm
Insulation Resistance@ 100Vdc ± 15V 500 MOhms
RoHS Compliant Yes
Pb Free Yes
Moisture Sensitivity Level 1

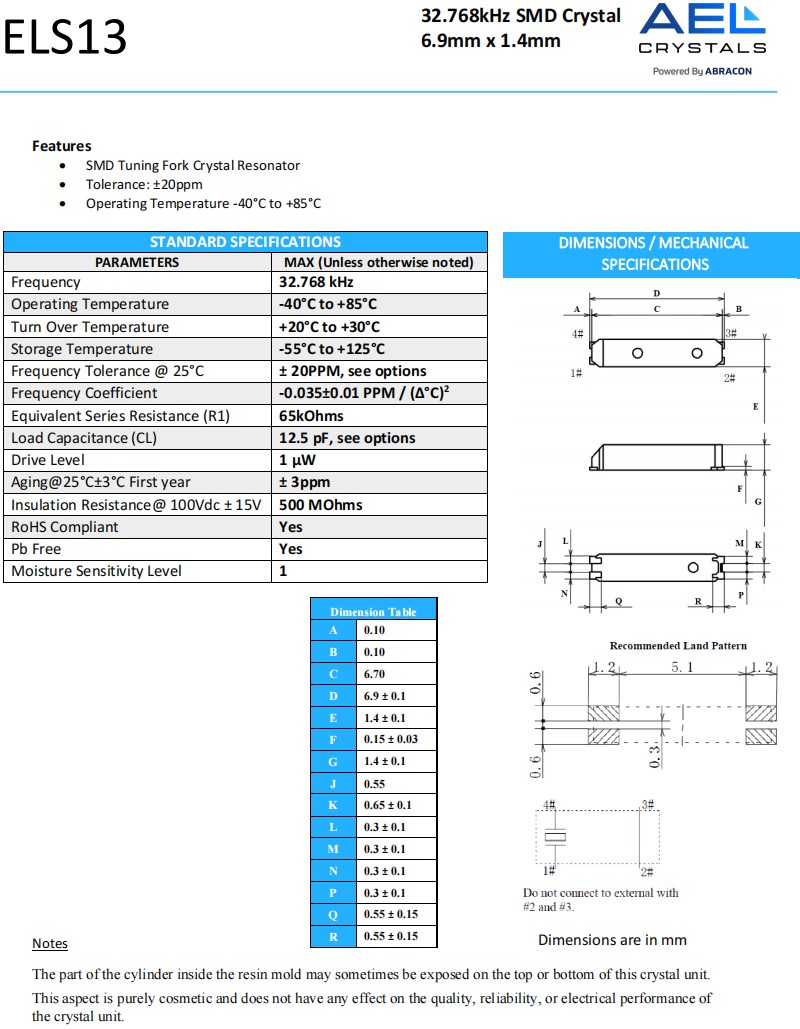

ELS13规格

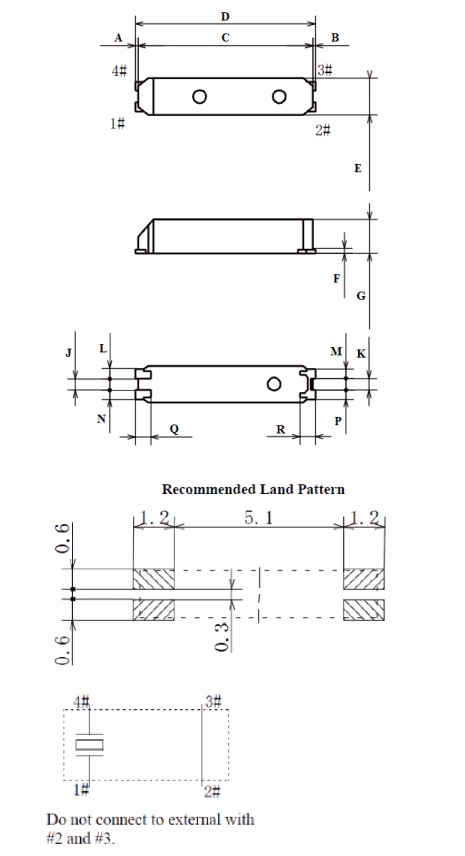

ELS13尺寸

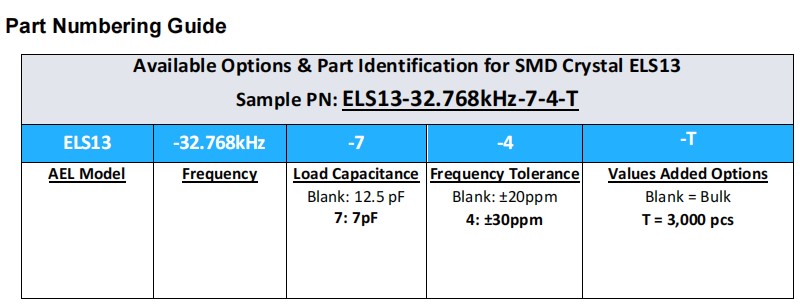

ELS13编码

石英晶体谐振器 品牌 频率 长度 宽度 高度 负载电容
ELLS-10.000MHz-20-R60-J-Q-F-T AEL晶振 10 MHz 12.3mm 4.6mm 4.3mm 20 pF
ELLS-12.000MHz-18-R60-A-4-F-T AEL晶振 12 MHz 12.3mm 4.6mm 4.3mm 18 pF
ELLS-13.560MHz-10-R35-A4Y-F-T AEL晶振 13.56 MHz 12.3mm 4.6mm 4.3mm 10 pF
ELLS-30.000MHz-10-R50-B1U-F-T AEL晶振 30 MHz 12.3mm 4.6mm 4.3mm 10 pF
ELLS-4.000MHz-16-R120-A4-F-T AEL晶振 4 MHz 12.3mm 4.6mm 4.3mm 16 pF
ELLS-4.000MHz-16-R120-B1X-F-T AEL晶振 4 MHz 12.3mm 4.6mm 4.3mm 16 pF
ELLS-4.000MHz-30-R120-D4-F-T AEL晶振 4 MHz 12.3mm 4.6mm 4.3mm 30 pF
ELLS-8.000MHz-16-R45-D4-F-T AEL晶振 8 MHz 12.3mm 4.6mm 4.3mm 16 pF
ELM10-16.000MHz-8-R60-2-D20-T AEL晶振 16 MHz 2.5mm 2mm 0.5mm 8 pF
ELM10-24.000MHz-16-R100-X-N15-T AEL晶振 24 MHz 2.5mm 2mm 0.5mm 16 pF
ELM11-32.000MHz-10-R60-D1X-T AEL晶振 32 MHz 2mm 1.6mm 0.5mm 10 pF
ELM3-12.000MHz-30-R80-D4Y-T AEL晶振 12 MHz 5mm 3.2mm 1mm 30 pF
ELM3-14.000MHz-30-R80-D4H-T AEL晶振 14 MHz 5mm 3.2mm 1mm 30 pF
ELM3-24.000MHz-18-R40-D4H-T AEL晶振 24 MHz 5mm 3.2mm 1mm 18 pF
ELM3-8.057MHz-18-R100-B4Y-T AEL晶振 8.057 MHz 5mm 3.2mm 1mm 18 pF
ELM8-12.000MHz-10-R50-D4Y-T AEL晶振 12 MHz 3mm 2.5mm 0.6mm 10 pF
ELM8-12.5829MHz-16-R60-1U-T AEL晶振 12.5829 MHz 3mm 2.5mm 0.6mm 16 pF
ELM8-14.000MHz-16-R150-B1U-T AEL晶振 14.8 MHz 3mm 2.5mm 0.6mm 16 pF
ELM8-18.432MHz-16-R80-DQ-T AEL晶振 18.432 MHz 3mm 2.5mm 0.6mm 16 pF
ELM8-24.000MHz-10-R60-D1W-T AEL晶振 24 MHz 3mm 2.5mm 0.6mm 10 pF
ELM8-24.000MHz-18-R60-B1W-T AEL晶振 24 MHz 3mm 2.5mm 0.6mm 18 pF
ELM8-24.000MHz-9-R40-N1U-T AEL晶振 24 MHz 3mm 2.5mm 0.6mm 9 pF
ELM8-26.000MHz-18-R60-B1U-T AEL晶振 26 MHz 3mm 2.5mm 0.6mm 18 pF
ELM8-32.000MHz-16-R40-B1U-T AEL晶振 32 MHz 3mm 2.5mm 0.6mm 16 pF
ELM8-32.000MHz-9-R40-D1G-T AEL晶振 32 MHz 3mm 2.5mm 0.6mm 9 pF
ELS07-32.768kHz-6-T AEL晶振 32.768 kHz 3.2mm 1.5mm 0.75mm 6 pF
ELS07-32.768kHz-T AEL晶振 32.768 kHz 3.2mm 1.5mm 0.75mm 12.5 pF
ELS13-32.768kHz-7-T AEL晶振 32.768 kHz 7mm 1.5mm 1.4mm 7 pF
ELS13-32.768kHz-9-T 贴片晶振 32.768 kHz 7mm 1.5mm 1.4mm 9 pF
ELS13-32.768kHz-T AEL晶振 32.768 kHz 7mm 1.5mm 1.4mm 12.5 pF
ELS25-32.768kHz-6-2-T AEL晶振 32.768 kHz 8mm 3.8mm 2.4mm 6 pF
ELS25-32.768kHz-T AEL晶振 32.768 kHz 8mm 3.8mm 2.4mm 12.5 pF
ELS06-32.768kHz-9-T AEL晶振 32.768 kHz 2mm 1.2mm 0.6mm 9 pF
ELS05-32.768kHz-9-T AEL晶振 32.768 kHz 1.6mm 1mm 0.5mm 9 pF
ELM12W-24.000MHz-6-R120-D7X-T AEL晶振 24 MHz 1.6mm 1.2mm 0.4mm 6 pF
X10M000000L121 AEL晶振 10 MHz 11.3mm 4mm 16mm 30 pF
X10M000000S065 AEL晶振 10 MHz 12.3mm 4.6mm 4.3mm 20 pF
X12M000000S081 AEL晶振 12 MHz 12.3mm 4.6mm 4.3mm 18 pF
X12M000000S096 AEL晶振 12 MHz 3mm 2.5mm 0.6mm 10 pF
X12M000000S118 AEL晶振 12 MHz 5mm 3.2mm 1mm 30 pF
X12M582900S001 AEL晶振 12.5829 MHz 3mm 2.5mm 0.6mm 16 pF
X13M560000S024 AEL晶振 13.56 MHz 12.3mm 4.6mm 4.3mm 10 pF
X14M000000S003 AEL晶振 14 MHz 5mm 3.2mm 1mm 30 pF
X14M800000S001 AEL晶振 14.8 MHz 3mm 2.5mm 0.6mm 16 pF
X16M000000S182 AEL晶振 16 MHz 3mm 2.5mm 0.6mm 12 pF
X16M000000S207 AEL晶振 16 MHz 2.5mm 2mm 0.5mm 8 pF
X18M432000S049 AEL晶振 18.432 MHz 3mm 2.5mm 0.6mm 16 pF
X21M948717S005 AEL晶振 21.948717 MHz 5mm 3.2mm 1mm 12 pF
X24M000000S029 AEL晶振 24 MHz 2.5mm 2mm 0.5mm 16 pF
X24M000000S049 AEL晶振 24 MHz 2.5mm 2mm 0.5mm 10 pF
X24M000000S050 AEL晶振 24 MHz 3mm 2.5mm 0.6mm 10 pF
X24M000000S079 AEL晶振 24 MHz 5mm 3.2mm 1mm 18 pF
X24M000000S094 AEL晶振 24 MHz 3mm 2.5mm 0.6mm 18 pF
X24M000000S303 AEL晶振 24 MHz 3mm 2.5mm 0.6mm 9 pF
X26M000000S301 AEL晶振 26 MHz 3mm 2.5mm 0.6mm 18 pF
X30M000000S005 AEL晶振 30 MHz 12.3mm 4.6mm 4.3mm 10 pF
X32K768L025 AEL晶振 32.768 kHz 2.1mm 6.2mm 13.2mm 12.5 pF
X32K768L104 AEL晶振 32.768 kHz 2.9mm 8mm 17mm 12.5 pF
X32K768S003 AEL晶振 32.768 kHz 7.9mm 3.8mm 2.4mm 12.5 pF
X32K768S012 AEL晶振 32.768 kHz 3.2mm 1.5mm 0.75mm 12.5 pF
X32K768S013 AEL晶振 32.768kHz 7mm 1.5mm 1.4mm 12.5 pF
X32K768S020 AEL晶振 32.768 kHz 7mm 1.5mm 1.4mm 12.5 pF
X32K768S021 AEL晶振 32.768 kHz 4.1mm 1.5mm 0.7mm 12.5 pF
X32K768S036 AEL晶振 32.768 kHz 10.41mm 4.06mm 3.56mm 12.5 pF
X32K768S038 AEL晶振 32.768 kHz 7mm 1.5mm 1.4mm 7 pF
X32K768S041 AEL晶振 32.768 kHz 4mm 1.5mm 0.7mm 6 pF
X32K768S045 AEL晶振 32.768 kHz 2mm 6mm 9mm 6 pF
X32K768S051 AEL晶振 32.768 kHz 7mm 1.5mm 1.4mm 9 pF
X32K768S067 AEL晶振 32.768 kHz 3.2mm 1.5mm 0.75mm 9 pF
X32K768S073 AEL晶振 32.768 kHz 6mm 2.5mm 8.3mm 12.5 pF
X32K768S112 AEL晶振 32.768 kHz 7.9mm 3.8mm 2.4mm 6 pF
X32K768S115 AEL晶振 32.768 kHz 8mm 4mm 2.4mm 12.5 pF
X32K768S134 AEL晶振 32.768 kHz 7mm 1.5mm 1.4mm 7 pF
X32K768S233 AEL晶振 32.768 kHz 10.4mm 4mm 3.5mm 12.5 pF
X32K768S239 AEL晶振 32.768 kHz 7.9mm 3.8mm 2.4mm 12.5 pF
X32K768S300 AEL晶振 32.768 kHz 3.2mm 1.5mm 0.75mm 6 pF
X32M000000S039 AEL晶振 32 MHz 3mm 2.5mm 0.6mm 9 pF
X32M000000S045 AEL晶振 32 MHz 3mm 2.5mm 0.6mm 16 pF
X32M000000S046 AEL晶振 32 MHz 2mm 1.6mm 0.5mm 10 pF
X3M686400S004 AEL晶振 3.6864 MHz 11.8mm 5.5mm 2.1mm 30 pF
X4M000000S002 AEL晶振 4 MHz 12.3mm 4.6mm 4.3mm 30 pF
X4M000000S018 AEL晶振 4 MHz 12.3mm 4.6mm 4.3mm 16 pF
X4M000000S084 AEL晶振 4 MHz 12.3mm 4.6mm 4.3mm 16 pF
X8M000000L023 AEL晶振 8 MHz 10.5mm 4.7mm 4mm 18 pF
X8M000000S007 AEL晶振 8 MHz 12.3mm 4.6mm 4.3mm 16 pF
X8M000000S045 AEL晶振 8 MHz 12mm 8mm 4.8mm 22 pF
X8M057000S001 AEL晶振 8.057 MHz 5mm 3.2mm 1mm 18 pF
