FOX美国晶体,领先全球的汽车中控晶振,FC3BABCVI48.0晶振

频率：48MHZ

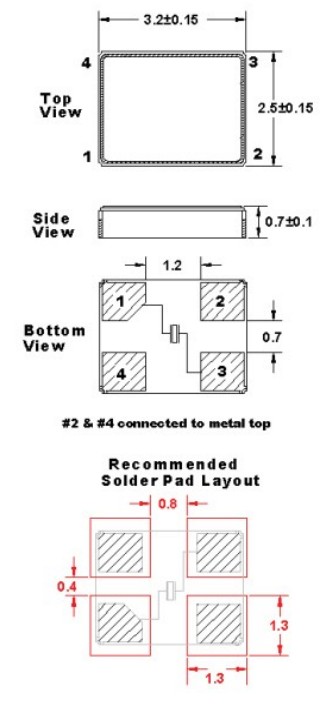

尺寸：3225mm

FOX美国晶体,领先全球的汽车中控晶振,FC3BABCVI48.0晶振,FOX晶振内部石英晶片均采用了全自动压电石英晶片清洗技术，采用高压喷淋清洗，兆声振动的原理，一个全自动、清洗过程由PLC控制，由传输装置、喷淋清洗段、喷淋漂洗段、风力吹水段等，操作自动化程度高，除上下工件需要人工外，其余全部由设备自动完成。3225mm体积非常小的SMDcrystal器件,是民用小型无线数码产品的最佳选择,小体积的晶振被广泛应用到,手机蓝牙,GPS定位系统,无线通讯集,高精度和高频率的稳定性能,非常好的减少电磁干扰的影响,是民用无线数码产品最好的选择,符合RoHS/无铅.6G无人机晶振，手机蓝牙晶振，6G无线通讯晶振，自动化设备晶振，高品质晶振.

咨询热线：0755-27872782

相关产品说明下载PDF资料

TH-1 890

TH-2 890

FOX美国晶体,领先全球的汽车中控晶振,FC3BABCVI48.0晶振

参数	MAX (unless otherwise noted)
频率范围	8.000 ~ 52.000 MHz
频率容差	(See options on page 2)
频率稳定度	(See options below)
工作温度范围	See options below
储存温度范围	-55ºC ~ +150ºC
分流电容	3pF
负载电容	(See options on page 2)
驱动电平	100µW
老化	±5 PPM
最大焊接温度/时间	260ºC / 10 Seconds
湿度敏感性水平	1
终止完成	Au
密封方式	Seam Seal
无铅	Yes
符合RoHS	No Exemptions

FOX美国晶体,领先全球的汽车中控晶振,FC3BABCVI48.0晶振

FOX原厂编码	生产商	型号	频率	频率稳定度	频率容差	负载电容
FC4SDCBMF10.0-T1	Fox晶振	HC49SDLF	10 MHz	±50ppm	±30ppm	20pF
FC4SDCBMF8.0-T1	Fox晶振	HC49SDLF	8 MHz	±50ppm	±30ppm	20pF
FC4SDCBMF3.6864-T1	Fox晶振	HC49SDLF	3.6864 MHz	±50ppm	±30ppm	20pF
FKFSREIHM0.032768-T3	Fox晶振	FSRLF	32.768 kHz	-	±20ppm	12.5pF
FC4STCBMF20.0	Fox晶振	HC49SLF	20 MHz	±50ppm	±30ppm	20pF
FK135EIHM0.032768-T3	Fox晶振	K135	32.768 kHz	-	±20ppm	12.5pF
FC5BQCCMC12.0-T1	Fox晶振	C5BQ	12 MHz	±30ppm	±30ppm	20pF
FC5BQCCMM25.0-T1	Fox晶振	C5BQ	25 MHz	±30ppm	±30ppm	20pF
FC5BQCCMM12.0-T1	Fox晶振	C5BQ	12 MHz	±50ppm	±30ppm	20pF
FC7BSCCMM8.0-T1	Fox晶振	C7BS	8 MHz	±30ppm	±30ppm	20pF
FC7BSCCMM7.3728-T1	Fox晶振	C7BS	7.3728 MHz	±30ppm	±30ppm	20pF
FKFSXEIHM0.032768-T3	Fox晶振	FSXLF	32.768 kHz	-	±20ppm	12.5pF
FKFSREIBM0.032768-T3	Fox晶振	FSRLF	32.768 kHz	-	±20ppm	6pF
FC8AQCCMC3.6864-T1	Fox晶振	FC8AQ	3.6864 MHz	±30ppm	±30ppm	20pF
FC8AQCCMC4.0-T1	Fox晶振	FC8AQ	4 MHz	±30ppm	±30ppm	20pF
FC4SDCBMF11.0592-T1	Fox晶振	HC49SDLF	11.0592 MHz	±50ppm	±30ppm	20pF
FC4SDCBMF25.0-T1	Fox晶振	HC49SDLF	25 MHz	±50ppm	±30ppm	20pF
FC4SDCBMF16.0-T1	Fox晶振	HC49SDLF	16 MHz	±50ppm	±30ppm	20pF
FC4SDCBMF12.0-T1	Fox晶振	HC49SDLF	12 MHz	±50ppm	±30ppm	20pF
FC4SDCBMF24.0-T1	Fox晶振	HC49SDLF	24 MHz	±50ppm	±30ppm	20pF
FC4SDCBMM25.0-T1	Fox晶振	HC49SDLF	25 MHz	±50ppm	±30ppm	20pF
FC4SDCBMF14.7456-T1	Fox晶振	HC49SDLF	14.7456 MHz	±50ppm	±30ppm	20pF
FC4SDCBMM8.0-T1	Fox晶振	HC49SDLF	8 MHz	±50ppm	±30ppm	20pF
FC4SDCBMF7.3728-T1	Fox晶振	HC49SDLF	7.3728 MHz	±50ppm	±30ppm	20pF
FC4SDCBMF6.0-T1	Fox晶振	HC49SDLF	6 MHz	±50ppm	±30ppm	20pF
FC4SDCBMF4.0-T1	Fox晶振	HC49SDLF	4 MHz	±50ppm	±30ppm	20pF
FC3BQBBME12.0-T3	Fox晶振	FQ3225B	12 MHz	±50ppm	±50ppm	20pF
FC3BQBBMM25.0-T3	Fox晶振	FC3BQ	25 MHz	±50ppm	±50ppm	20pF
FKT38EIHD0.032768	Fox晶振	NC38LF	32.768 kHz	-	±20ppm	12.5pF
FC4STCBMF10.0	Fox晶振	HC49SLF	10 MHz	±50ppm	±30ppm	20pF
FC4STCBMF25.0	Fox晶振	HC49SLF	25 MHz	±50ppm	±30ppm	20pF
FC4STCBMF16.0	Fox晶振	HC49SLF	16 MHz	±50ppm	±30ppm	20pF
FC4STCBMF12.0	Fox晶振	HC49SLF	12 MHz	±50ppm	±30ppm	20pF
FC4STCBMF11.0592	Fox晶振	HC49SLF	11.0592 MHz	±50ppm	±30ppm	20pF
FC4STCBMF8.0	Fox晶振	HC49SLF	8 MHz	±50ppm	±30ppm	20pF
FC4STCBMF7.3728	Fox晶振	HC49SLF	7.3728 MHz	±50ppm	±30ppm	20pF
FC4STCBLF3.579545	Fox晶振	HC49SLF	3.579545 MHz	±50ppm	±30ppm	18pF
FC4STCBMF4.0	Fox晶振	HC49SLF	4 MHz	±50ppm	±30ppm	20pF
FC4STCBMF3.6864	Fox晶振	HC49SLF	3.6864 MHz	±50ppm	±30ppm	20pF
FKT26EIHD0.032768	Fox晶振	NC26LF	32.768 kHz	-	±20ppm	12.5pF
FKT38EIHQ0.032768	Fox晶振	NC38LF	32.768 kHz	-	±20ppm	12.5pF
FC5BQCCMC25.0-T1	Fox晶振	C5BQ	25 MHz	±30ppm	±30ppm	20pF
FC5BQCCMC24.0-T1	Fox晶振	C5BQ	24 MHz	±30ppm	±30ppm	20pF
FC5BQCCMC20.0-T1	Fox晶振	C5BQ	20 MHz	±30ppm	±30ppm	20pF
FC5BQCCMC16.0-T1	Fox晶振	C5BQ	16 MHz	±30ppm	±30ppm	20pF
FC7BSCCMC8.0-T1	Fox晶振	C7BS	8 MHz	±30ppm	±30ppm	20pF
FC7BSCCMM6.0-T1	Fox晶振	C7BS	6 MHz	±30ppm	±30ppm	20pF
FC7BSCCMC7.3728-T1	Fox晶振	C7BS	7.3728 MHz	±30ppm	±30ppm	20pF
FC8AQCCMC6.0-T1	Fox晶振	FC8AQ	6 MHz	±30ppm	±30ppm	20pF
FC4SDCBMF12.288-T1	Fox晶振	HC49SDLF	12.288 MHz	±50ppm	±30ppm	20pF
FC4SDCBMM16.0-T1	Fox晶振	HC49SDLF	16 MHz	±50ppm	±30ppm	20pF
FC4SDCBMF18.432-T1	Fox晶振	HC49SDLF	18.432 MHz	±50ppm	±30ppm	20pF
FC4SDCBLF3.579545-T1	Fox晶振	HC49SDLF	3.579545 MHz	±50ppm	±30ppm	18pF
FC4SDCBMM4.0-T1	Fox晶振	HC49SDLF	4 MHz	±50ppm	±30ppm	20pF
FC2BSBBMM16.0-T3	Fox晶振	FX252B	16 MHz	±50ppm	±50ppm	20pF
FC4STCBMF18.432	Fox晶振	HC49SLF	18.432 MHz	±50ppm	±30ppm	20pF
FC4STCBMF14.7456	Fox晶振	HC49SLF	14.7456 MHz	±50ppm	±30ppm	20pF
FKT26EIHQ0.032768	Fox晶振	NC26LF	32.768 kHz	-	±20ppm	12.5pF
