英国IQD晶振|3SMX-A|LFXTAL030778Reel|6035贴片晶振

频率：25MHz

尺寸：6.0 ×3.5× 1.2mm

英国IQD晶振|3SMX-A|LFXTAL030778Reel|6035贴片晶振,英国IQD晶振,3SMX-A贴片晶振,无源晶振,LFXTAL030778Reel晶振,陶瓷谐振器,6.0×3.5mm晶振,SMD晶振,二脚封装晶振,频率25MHz,负载20pF,频率容差30ppm,工作温度-20~70°C,小体积晶振,高稳定性晶振,无铅环保晶振,家用电视机顶盒晶振,智能家居晶振,音频系统晶振,多媒体视频设备晶振.

咨询热线：0755-27872782

TH-1 890

英国IQD晶振|3SMX-A|LFXTAL030778Reel|6035贴片晶振,英国IQD晶振,3SMX-A贴片晶振,无源晶振,LFXTAL030778Reel晶振,陶瓷谐振器,6.0×3.5mm晶振,SMD晶振,二脚封装晶振,频率25MHz,负载20pF,频率容差30ppm,工作温度-20~70°C,小体积晶振,高稳定性晶振,无铅环保晶振,家用电视机顶盒晶振,智能家居晶振,音频系统晶振,多媒体视频设备晶振.

TH-2 890

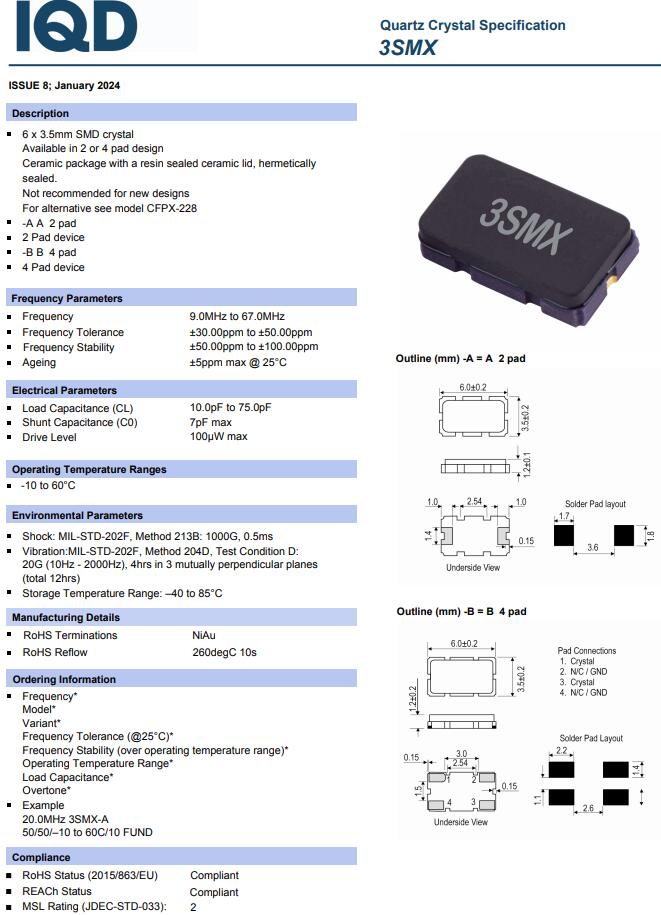

英国IQD晶振|3SMX-A|LFXTAL030778Reel|6035贴片晶振规格表

参数	数值
频率	25 MHz
频率容差@ 25°C ± 3°C	±30 ppm
频率稳定性	±50 ppm
工作温度	-20~70°C
储存温度	-40~85°C
负载	20 pF
并联电容	7pF typ
驱动电平	100µW max.
老化@ 25°C ± 3°C	±5.0ppm per year max

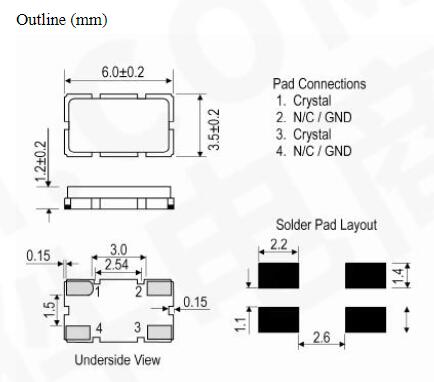

英国IQD晶振|3SMX-A|LFXTAL030778Reel|6035贴片晶振尺寸图

编码	型号	频率	频率容差	频率稳定性	工作温度	负载
LFXTAL035561Cutt	12SMX	6.0MHz	±30ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL037076Bulk	12SMX	6.0MHz	±30ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL053899Reel	12SMX	6.0MHz	±30ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL081961Reel	12SMX	6.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL083786Reel	12SMX	6.5536MHz	±30ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL058999Cutt	12SMX	7.3728MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL058999Reel	12SMX	7.3728MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL062701Bulk	12SMX	7.3728MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL062701Reel	12SMX	7.3728MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL063838Cutt	12SMX	7.3728MHz	±20ppm	±50ppm	-40°C to 125°C	18.00pF
LFXTAL070694Bulk	12SMX	7.3728MHz	±50ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL026380Bulk	12SMX	8.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026380Cutt	12SMX	8.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026380Reel	12SMX	8.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL028138Reel	12SMX	8.0MHz	±50ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL033064Reel	12SMX	8.0MHz	±50ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL035430Bulk	12SMX	8.0MHz	±30ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL035430Cutt	12SMX	8.0MHz	±30ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL035983Reel	12SMX	8.0MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL036902Bulk	12SMX	8.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL050611Reel	12SMX	8.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL050644Reel	12SMX	8.0MHz	±20ppm	±20ppm	-20°C to 70°C	75.00pF
LFXTAL054213Reel	12SMX	8.0MHz	±30ppm	±50ppm	-20°C to 70°C	20.00pF
LFXTAL055050Bulk	12SMX	8.0MHz	±30ppm	±50ppm	-20°C to 70°C	12.00pF
LFXTAL056516Bulk	12SMX	8.0MHz	±30ppm	±30ppm	-20°C to 70°C	12.00pF
LFXTAL059082Cutt	12SMX	8.0MHz	±20ppm	±50ppm	-20°C to 70°C	10.00pF
LFXTAL059082Reel	12SMX	8.0MHz	±20ppm	±50ppm	-20°C to 70°C	10.00pF
LFXTAL061125Bulk	12SMX	8.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL078329Cutt	12SMX	8.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082934Bulk	12SMX	8.0MHz	±30ppm	±30ppm	0°C to 70°C	10.00pF
LFXTAL083440Reel	12SMX	8.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL083524Reel	12SMX	8.0MHz	±30ppm	±50ppm	-40°C to 85°C	20.00pF
LFXTAL079369Reel	12SMX	9.216MHz	±50ppm	±100ppm	-40°C to 85°C	20.00pF
LFXTAL078330Cutt	12SMX	9.6MHz	±10ppm	±25ppm	-40°C to 85°C	10.00pF
LFXTAL076072Bulk	12SMX	9.8MHz	±30ppm	±30ppm	-20°C to 70°C	20.00pF
LFXTAL076296Reel	12SMX	9.8304MHz	±30ppm	±30ppm	-20°C to 70°C	12.00pF
LFXTAL029106Reel	12SMX	10.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL030919Reel	12SMX	10.0MHz	±50ppm	±50ppm	-30°C to 80°C	20.00pF
LFXTAL037108Reel	12SMX	10.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL052197Reel	12SMX	10.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL052921Cutt	12SMX	10.0MHz	±30ppm	±100ppm	-40°C to 85°C	16.00pF
LFXTAL090515Reel	12SMX	10.0MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL090532Reel	12SMX	10.245MHz	±20ppm	±20ppm	-20°C to 70°C	10.00pF
LFXTAL090533Reel	12SMX	10.245MHz	±20ppm	±20ppm	-20°C to 70°C	30.00pF
LFXTAL026382Bulk	12SMX	11.0592MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026382Cutt	12SMX	11.0592MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026382Reel	12SMX	11.0592MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL029535Bulk	12SMX	11.0592MHz	±50ppm	±50ppm	-20°C to 70°C	30.00pF
LFXTAL026384Bulk	12SMX	12.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026384Reel	12SMX	12.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL027623Reel	12SMX	12.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL031880Bulk	12SMX	12.0MHz	±30ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL034834Bulk	12SMX	12.0MHz	±30ppm	±50ppm	-20°C to 70°C	22.00pF
LFXTAL035467Bulk	12SMX	12.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL050609Bulk	12SMX	12.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL050609Reel	12SMX	12.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL057971Reel	12SMX	12.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL050352Bulk	12SMX	12.8MHz	±10ppm	±20ppm	-40°C to 85°C	12.00pF
LFXTAL026386Bulk	12SMX	14.31818MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026386Reel	12SMX	14.31818MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL035020Reel	12SMX	14.74546MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL020965Reel	12SMX	14.7456MHz	±50ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026388Bulk	12SMX	14.7456MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026388Reel	12SMX	14.7456MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL060686Reel	12SMX	14.7456MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL062468Bulk	12SMX	14.7456MHz	±30ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL062696Reel	12SMX	14.7456MHz	±50ppm	±100ppm	-40°C to 85°C	12.00pF
LFXTAL073093Cutt	12SMX	14.7456MHz	±30ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL081921Cutt	12SMX	14.7456MHz	±20ppm	±20ppm	-40°C to 85°C	30.00pF
LFXTAL026392Bulk	12SMX	16.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026392Cutt	12SMX	16.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026392Reel	12SMX	16.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL034857Reel	12SMX	16.0MHz	±30ppm	±50ppm	-20°C to 70°C	12.00pF
LFXTAL036703Bulk	12SMX	16.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL036703Cutt	12SMX	16.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059444Bulk	12SMX	16.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL061480Bulk	12SMX	16.0MHz	±30ppm	±50ppm	-40°C to 85°C	22.00pF
LFXTAL090604Reel	12SMX	16.2MHz	±30ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL034572Reel	12SMX	18.432MHz	±50ppm	±50ppm	-20°C to 70°C	12.00pF
LFXTAL035742Bulk	12SMX	18.432MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL035742Cutt	12SMX	18.432MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL058902Bulk	12SMX	19.6608MHz	±15ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL026394Bulk	12SMX	20.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026394Cutt	12SMX	20.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026394Reel	12SMX	20.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL036521Bulk	12SMX	20.0MHz	±30ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL036521Cutt	12SMX	20.0MHz	±30ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL055012Bulk	12SMX	20.0MHz	±50ppm	±50ppm	-20°C to 70°C	12.00pF
LFXTAL083597Reel	12SMX	20.0MHz	±30ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL034854Reel	12SMX	24.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL059090Bulk	12SMX	24.0MHz	±30ppm	±30ppm	-20°C to 70°C	16.00pF
LFXTAL066367Reel	12SMX	24.0MHz	±30ppm	±30ppm	-20°C to 70°C	12.00pF
LFXTAL022248Reel	12SMX	24.576MHz	±50ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL026396Bulk	12SMX	24.576MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026396Cutt	12SMX	24.576MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026396Reel	12SMX	24.576MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL028567Reel	12SMX	25.0MHz	±30ppm	±50ppm	-10°C to 60°C	20.00pF
LFXTAL028918Bulk	12SMX	25.0MHz	±30ppm	±50ppm	0°C to 70°C	20.00pF
LFXTAL028918Reel	12SMX	25.0MHz	±30ppm	±50ppm	0°C to 70°C	20.00pF
LFXTAL032328Bulk	12SMX	25.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL032762Cutt	12SMX	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL033425Reel	12SMX	25.0MHz	±30ppm	±50ppm	-20°C to 70°C	20.00pF
LFXTAL033818Cutt	12SMX	25.0MHz	±30ppm	±50ppm	-20°C to 70°C	12.00pF
LFXTAL033992Reel	12SMX	25.0MHz	±50ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL034775Reel	12SMX	25.0MHz	±30ppm	±50ppm	-40°C to 85°C	30.00pF
LFXTAL035638Cutt	12SMX	25.0MHz	±100ppm	±30ppm	-10°C to 60°C	16.00pF
LFXTAL036368Cutt	12SMX	25.0MHz	±30ppm	±50ppm	-40°C to 85°C	20.00pF
LFXTAL055488Bulk	12SMX	25.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL056906Bulk	12SMX	25.0MHz	±20ppm	±20ppm	-10°C to 60°C	18.00pF
LFXTAL078331Cutt	12SMX	25.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL079086Cutt	12SMX	25.0MHz	±25ppm	±25ppm	-40°C to 85°C	20.00pF
LFXTAL060693Bulk	12SMX	27.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL035375Cutt	12SMX	27.12MHz	±100ppm	±30ppm	-10°C to 60°C	16.00pF
LFXTAL026504Bulk	12SMX	30.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026504Reel	12SMX	30.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL034993Bulk	12SMX	30.0MHz	±30ppm	±50ppm	-20°C to 70°C	12.50pF
LFXTAL063964Bulk	12SMX	30.0MHz	±50ppm	±100ppm	-40°C to 85°C	12.00pF
LFXTAL034268Cutt	12SMX	32.768MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL034268Reel	12SMX	32.768MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL071673Cutt	12SMX AUTO	6.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071673Reel	12SMX AUTO	6.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL072351Cutt	12SMX AUTO	6.0MHz	±50ppm	±100ppm	-40°C to 125°C	18.00pF
LFXTAL072351Reel	12SMX AUTO	6.0MHz	±50ppm	±100ppm	-40°C to 125°C	18.00pF
LFXTAL053699Cutt	12SMX AUTO	8.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL053699Reel	12SMX AUTO	8.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL056187Reel	12SMX AUTO	8.0MHz	±50ppm	±50ppm	-40°C to 125°C	8.00pF
LFXTAL071664Reel	12SMX AUTO	8.0MHz	±30ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL072352Cutt	12SMX AUTO	8.0MHz	±50ppm	±100ppm	-40°C to 125°C	18.00pF
LFXTAL072352Reel	12SMX AUTO	8.0MHz	±50ppm	±100ppm	-40°C to 125°C	18.00pF
LFXTAL090563Reel	12SMX AUTO	10.0MHz	±50ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL071675Cutt	12SMX AUTO	11.0592MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071675Reel	12SMX AUTO	11.0592MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071676Cutt	12SMX AUTO	12.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071676Reel	12SMX AUTO	12.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071677Cutt	12SMX AUTO	14.7456MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071677Reel	12SMX AUTO	14.7456MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL050310Bulk	12SMX AUTO	16.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL050310Reel	12SMX AUTO	16.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL050311Cutt	12SMX AUTO	20.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL050311Reel	12SMX AUTO	20.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL023899Bulk	87SMX	3.6864MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023899Cutt	87SMX	3.6864MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023899Reel	87SMX	3.6864MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL052142Bulk	87SMX	3.6864MHz	±50ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL052142Reel	87SMX	3.6864MHz	±50ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL056684Bulk	87SMX	3.6864MHz	±50ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL056684Reel	87SMX	3.6864MHz	±50ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL073137Reel	87SMX	3.6864MHz	±50ppm	±50ppm	-40°C to 85°C	30.00pF
LFXTAL073293Cutt	87SMX	3.6864MHz	±100ppm	±150ppm	-40°C to 90°C	16.00pF
LFXTAL022544Reel	87SMX	4.0MHz	±50ppm	±100ppm	-40°C to 90°C	30.00pF
LFXTAL029774Bulk	87SMX	4.0MHz	±50ppm	±100ppm	-20°C to 70°C	30.00pF
LFXTAL029774Cutt	87SMX	4.0MHz	±50ppm	±100ppm	-20°C to 70°C	30.00pF
LFXTAL029774Reel	87SMX	4.0MHz	±50ppm	±100ppm	-20°C to 70°C	30.00pF
LFXTAL057771Cutt	87SMX	4.0MHz	±50ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL057801Reel	87SMX	4.0MHz	±30ppm	±50ppm	-40°C to 85°C	20.00pF
LFXTAL058357Bulk	87SMX	4.0MHz	±15ppm	±100ppm	-55°C to 105°C	30.00pF
LFXTAL058357Cutt	87SMX	4.0MHz	±15ppm	±100ppm	-55°C to 105°C	30.00pF
LFXTAL058357Reel	87SMX	4.0MHz	±15ppm	±100ppm	-55°C to 105°C	30.00pF
LFXTAL073195Reel	87SMX	4.0MHz	±50ppm	±50ppm	-40°C to 85°C	15.00pF
LFXTAL073201Cutt	87SMX	4.0MHz	±50ppm	±100ppm	-40°C to 85°C	16.00pF
LFXTAL073239Bulk	87SMX	4.0MHz	±30ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL073239Reel	87SMX	4.0MHz	±30ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL073445Reel	87SMX	4.0MHz	±30ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL076128Reel	87SMX	4.0MHz	±50ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL077252Cutt	87SMX	4.0MHz	±50ppm	±50ppm	-20°C to 70°C	30.00pF
LFXTAL083532Cutt	87SMX	4.0MHz	±30ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL083532Reel	87SMX	4.0MHz	±30ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL083563Reel	87SMX	4.0MHz	±30ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL073237Cutt	87SMX	4.096MHz	±100ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL023399Bulk	87SMX	4.9152MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023399Cutt	87SMX	4.9152MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023399Reel	87SMX	4.9152MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL073191Cutt	87SMX	4.9152MHz	±50ppm	±100ppm	-40°C to 85°C	16.00pF
LFXTAL032749Reel	87SMX	6.0MHz	±20ppm	±30ppm	-40°C to 85°C	30.00pF
LFXTAL037119Bulk	87SMX	6.0MHz	±50ppm	±100ppm	-20°C to 70°C	30.00pF
LFXTAL037119Reel	87SMX	6.0MHz	±50ppm	±100ppm	-20°C to 70°C	30.00pF
LFXTAL083533Reel	87SMX	6.0MHz	±30ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL083535Cutt	87SMX	6.144MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL083535Reel	87SMX	6.144MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL023628Bulk	87SMX	7.3728MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023628Reel	87SMX	7.3728MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL065699Cutt	87SMX	7.902708MHz	±100ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL065699Reel	87SMX	7.902708MHz	±100ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL023401Bulk	87SMX	8.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023401Cutt	87SMX	8.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023401Reel	87SMX	8.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL056525Bulk	87SMX	8.0MHz	±50ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL059455Cutt	87SMX	8.0MHz	±50ppm	±100ppm	-40°C to 85°C	16.00pF
LFXTAL059455Reel	87SMX	8.0MHz	±50ppm	±100ppm	-40°C to 85°C	16.00pF
LFXTAL076060Reel	87SMX	8.0MHz	±50ppm	±100ppm	-20°C to 70°C	SR
LFXTAL083499Reel	87SMX	8.0MHz	±50ppm	±100ppm	-40°C to 85°C	18.00pF
LFXTAL083528Cutt	87SMX	8.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL083528Reel	87SMX	8.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL033471Reel	87SMX	8.192MHz	±30ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033867Bulk	87SMX	9.8304MHz	±30ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL083498Reel	87SMX	9.8304MHz	±50ppm	±100ppm	-40°C to 85°C	18.00pF
LFXTAL083529Cutt	87SMX	9.8304MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL083529Reel	87SMX	9.8304MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL023561Cutt	87SMX	10.0MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL023561Reel	87SMX	10.0MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL073675Reel	87SMX	10.0MHz	±30ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL083536Cutt	87SMX	10.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL023372Cutt	87SMX	11.0592MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL023372Reel	87SMX	11.0592MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL023524Reel	87SMX	11.0592MHz	±50ppm	±100ppm	-20°C to 70°C	30.00pF
LFXTAL076416Reel	87SMX	11.0592MHz	±50ppm	±50ppm	-40°C to 85°C	10.00pF
LFXTAL083537Cutt	87SMX	11.0592MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL083537Reel	87SMX	11.0592MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL050029Reel	87SMX	12.0MHz	±50ppm	±100ppm	-40°C to 85°C	20.00pF
LFXTAL056949Bulk	87SMX	12.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL056949Cutt	87SMX	12.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL056949Reel	87SMX	12.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL072590Cutt	87SMX	12.0MHz	±50ppm	±100ppm	-40°C to 85°C	16.00pF
LFXTAL072591Reel	87SMX	12.0MHz	±50ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL075188Bulk	87SMX	12.0MHz	±50ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL075188Reel	87SMX	12.0MHz	±50ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL077403Cutt	87SMX	12.0MHz	±10ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL083497Reel	87SMX	12.0MHz	±50ppm	±100ppm	-40°C to 85°C	18.00pF
LFXTAL083530Reel	87SMX	12.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL060787Cutt	87SMX	14.7456MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL060787Reel	87SMX	14.7456MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL023688Cutt	87SMX	16.0MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL032756Reel	87SMX	16.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033689Reel	87SMX	16.0MHz	±30ppm	±50ppm	-20°C to 70°C	SR
LFXTAL050025Reel	87SMX	16.0MHz	±50ppm	±100ppm	-40°C to 85°C	30.00pF
LFXTAL052725Bulk	87SMX	16.0MHz	±50ppm	±100ppm	-20°C to 70°C	SR
LFXTAL052725Cutt	87SMX	16.0MHz	±50ppm	±100ppm	-20°C to 70°C	SR
LFXTAL052725Reel	87SMX	16.0MHz	±50ppm	±100ppm	-20°C to 70°C	SR
LFXTAL058519Cutt	87SMX	16.0MHz	±50ppm	±100ppm	-40°C to 85°C	20.00pF
LFXTAL058519Reel	87SMX	16.0MHz	±50ppm	±100ppm	-40°C to 85°C	20.00pF
LFXTAL067749Bulk	87SMX	16.0MHz	±30ppm	±50ppm	-40°C to 85°C	30.00pF
LFXTAL073118Cutt	87SMX	16.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL073118Reel	87SMX	16.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL083496Reel	87SMX	16.0MHz	±50ppm	±100ppm	-40°C to 85°C	18.00pF
LFXTAL083531Cutt	87SMX	16.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL083531Reel	87SMX	16.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL023496Bulk	87SMX	18.432MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL023496Cutt	87SMX	18.432MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL023496Reel	87SMX	18.432MHz	±50ppm	±100ppm	-20°C to 70°C	20.00pF
LFXTAL083539Cutt	87SMX	19.6608MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL055924Bulk	87SMX	20.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL055924Cutt	87SMX	20.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL055924Reel	87SMX	20.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL083625Cutt	87SMX	20.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL083625Reel	87SMX	20.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL072723Cutt	87SMX	22.1184MHz	±50ppm	±100ppm	-40°C to 85°C	16.00pF
LFXTAL083534Cutt	87SMX	22.1184MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL083534Reel	87SMX	22.1184MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL058564Reel	87SMX	24.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL065724Cutt	87SMX	25.0MHz	±50ppm	±100ppm	-10°C to 60°C	16.00pF
LFXTAL070359Bulk	4SMX	8.192MHz	±50ppm	±50ppm	-10°C to 60°C	10.00pF
LFXTAL029659Reel	4SMX	14.7456MHz	±50ppm	±100ppm	-10°C to 60°C	30.00pF
LFXTAL055576Bulk	4SMX	48.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL055576Reel	4SMX	48.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL034565Reel	3SMX	13.0MHz	±50ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL030778Reel	3SMX	25.0MHz	±30ppm	±50ppm	-20°C to 70°C	20.00pF
LFXTAL030277Bulk	14SMX	8.0MHz	±50ppm	±50ppm	-40°C to 90°C	30.00pF
LFXTAL034888Reel	14SMX	8.0MHz	±50ppm	±50ppm	-40°C to 85°C	30.00pF
LFXTAL036947Reel	14SMX	8.0MHz	±30ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL017702Reel	14SMX	10.0MHz	±100ppm	±100ppm	-20°C to 70°C	30.00pF
LFXTAL035488Bulk	14SMX	12.0MHz	±50ppm	±50ppm	-40°C to 85°C	10.00pF
LFXTAL033277Bulk	14SMX	13.0MHz	±30ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL037013Reel	14SMX	16.0MHz	±25ppm	±50ppm	-40°C to 85°C	20.00pF
LFXTAL033276Bulk	14SMX	24.576MHz	±30ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL016263Bulk	14SMX	25.0MHz	±30ppm	±50ppm	-10°C to 60°C	12.00pF
LFXTAL059214Bulk	14SMX	25.0MHz	±10ppm	±15ppm	-40°C to 85°C	18.00pF
LFXTAL083623Cutt	14SMX	74.25MHz	±20ppm	±20ppm	-40°C to 85°C	15.00pF
LFXTAL024635Bulk	6SMX	3.6864MHz	±50ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL024334Reel	6SMX	4.0MHz	±50ppm	±50ppm	-10°C to 60°C	30.00pF
LFXTAL051627Reel	6SMX	5.0MHz	±50ppm	±50ppm	-20°C to 70°C	12.00pF
LFXTAL060146Reel	6SMX	7.68MHz	±30ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL027630Reel	6SMX	8.0MHz	±50ppm	±50ppm	-10°C to 60°C	22.00pF
LFXTAL026511Reel	6SMX	16.0MHz	±30ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL027641Bulk	6SMX	16.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF

联系方式/CONTACT US

泰河电话服务热线：0755-27872782 13824306246

泰河传真贸易通：泰河科技

泰河客服在线客服：794113422　　泰河微信号：taiheth794113422　　公众号：taihekj

泰河邮箱泰河邮箱：taiheth@163.com

泰河地址泰河地址：广东深圳市宝安区40区33号工业城6楼

泰河地址泰河官网：http://www.smdcrystal.com/

英国IQD晶振 3SMX-A LFXTAL030778Reel 6035贴片晶振

跟此产品相关的产品 / Related Products

: DSC1001CE1-019.2000,3225mm,19.2MHz,Microchip移动应用晶振; DSC1001CE1-019.2000,3225mm,19.2MHz,Microchip移动应用晶振，美国进口晶振，Microchip晶振，型号：DSC1001，编码为：DSC1001CE1-019.2000，频率为：19.2MHz，工作温度范围：-20℃至+70℃，小体积晶振尺寸：3.2x2.5mm封装，四脚贴片晶振，有源晶振，DSC1001是一种基于硅MEMS的CMOS系列晶体振荡器。在大范围的电源电压和温度范围内提供优异的抖动和稳定性能。DSC1001包含了一个全硅谐振器，它非常坚固，几乎不受应力相关裂缝的影响，这是石英晶体振荡器常见的。在不牺牲当今系统所需的性能和稳定性的情况下，无晶体设计允许更高水平的可靠性，使DSC1001非常适合坚固、工业和便携式的应用，其中应力、冲击和振动可能会损坏基于石英晶体的系统。应用于：移动应用，消费电子，便携式电子，DVR，闭路电视，监控摄像头，低调应用，工业应用。

: ABLS7M2-26.000MHZ-D2Y-T/26MHz/艾博康ABLS7M2贴片晶振; ABLS7M2-26.000MHZ-D2Y-T/26MHz/艾博康ABLS7M2贴片晶振，美国进口晶振，Abracon晶振，艾博康晶振厂家，型号：ABLS7M2，编码为：ABLS7M2-26.000MHZ-D2Y-T，频率为：26.000MHz，负载电容：18pF，频率稳定性：±30ppm，频率容差：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：7.0x4.1x2.0mm，石英晶振，石英晶体谐振器，两脚贴片晶振，无源晶振，SMD晶振，应用于：移动通讯晶振，数码电子晶振、无线网络晶振，汽车电子晶振，微处理器等应用。

: ABLS7M2-24.576MHZ-D2Y-T,24.576MHz,Abracon通信晶振; ABLS7M2-24.576MHZ-D2Y-T,24.576MHz,Abracon通信晶振，美国进口晶振，Abracon晶振，艾博康晶振，型号：ABLS7M2，编码为：ABLS7M2-24.576MHZ-D2Y-T，频率为：24.576MHz，频率稳定性：±30ppm，频率容差：±20ppm，工作温度范围：-40℃至+85℃，负载电容：18pF，小体积晶振尺寸：7.0x4.1x2.0mm，两脚贴片晶振，石英晶振，石英晶体谐振器，无源晶振，SMD晶振，应用于：通讯设备晶振，无线蓝牙晶振，智能家居晶振、调制解调器，微处理器等应用。
