IQD CRYSTAL|IQXC-26|LFXTAL078691Cutt|1612无源晶振

频率：24 MHz

尺寸：1.6mm× 1.2mm

IQD CRYSTAL|IQXC-26|LFXTAL078691Cutt|1612无源晶振,欧美进口晶振,IQD CRYSTAL,IQXC-26无源晶振,石英晶振,LFXTAL078691Cutt晶振,1612mm晶振,晶体谐振器,SMD晶振,四脚贴片晶振,频率24MHz,负载20pF,频率容差10ppm,工作温度-40~85°C,轻薄小晶振,耐老化晶振,高可靠性晶振,智能手机晶振,笔记本电脑晶振,调制解调器晶振,消费电子产品晶振.

咨询热线：0755-27872782

TH-1 890

IQD CRYSTAL|IQXC-26|LFXTAL078691Cutt|1612无源晶振,欧美进口晶振,IQD CRYSTAL,IQXC-26无源晶振,石英晶振,LFXTAL078691Cutt晶振,1612mm晶振,晶体谐振器,SMD晶振,四脚贴片晶振,频率24MHz,负载20pF,频率容差10ppm,工作温度-40~85°C,轻薄小晶振,耐老化晶振,高可靠性晶振,智能手机晶振,笔记本电脑晶振,调制解调器晶振,消费电子产品晶振. TH-2 890

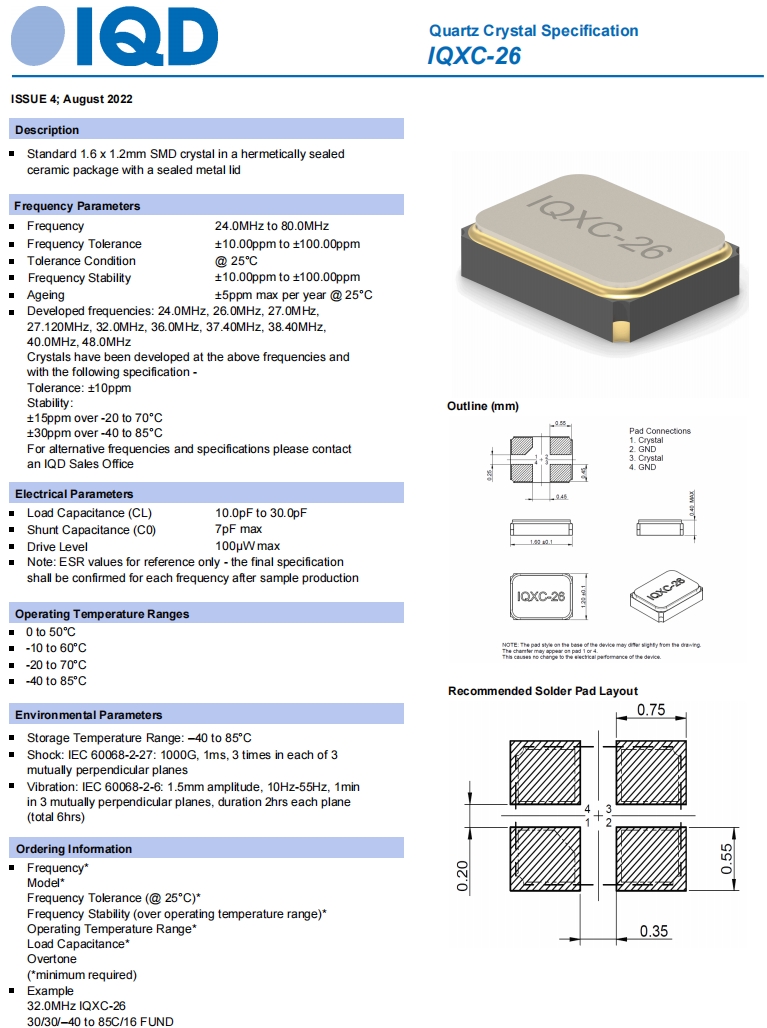

IQD CRYSTAL|IQXC-26|LFXTAL078691Cutt|1612无源晶振规格表

参数	数值
频率	24 MHz
频率容差@ 25°C ± 3°C	±10 ppm
频率稳定性	±30 ppm
工作温度	-40~85°C
储存温度	-55~125°C
负载	20 pF
并联电容	7pF max
驱动电平	100µW max.
老化@ 25°C ± 3°C	±5 ppm typical per year

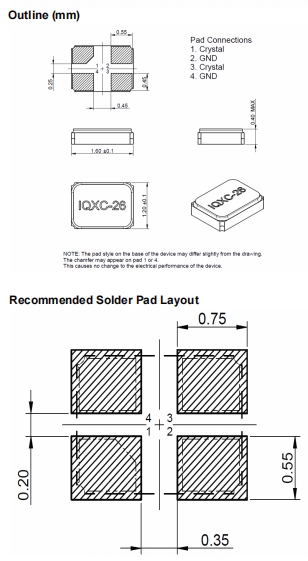

IQD CRYSTAL|IQXC-26|LFXTAL078691Cutt|1612无源晶振尺寸图

编码	型号	频率	频率容差	频率稳定性	工作温度	负载
LFXTAL081314Reel	IQXC-240	37.4MHz	±7ppm	±15ppm	-30°C to 85°C	5.00pF
LFXTAL081316Reel	IQXC-240	38.4MHz	±7ppm	±15ppm	-30°C to 85°C	5.00pF
LFXTAL072539Reel	IQXC-26	24.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL078691Cutt	IQXC-26	24.0MHz	±10ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL081608Cutt	IQXC-26	24.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081608Reel	IQXC-26	24.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081609Cutt	IQXC-26	25.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL083890Cutt	IQXC-26	25.0MHz	±10ppm	±20ppm	-40°C to 85°C	20.00pF
LFXTAL052799Cutt	IQXC-26	26.0MHz	±10ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL066742Cutt	IQXC-26	26.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL066742Reel	IQXC-26	26.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL069296Cutt	IQXC-26	26.0MHz	±15ppm	±20ppm	-20°C to 70°C	8.00pF
LFXTAL070729Cutt	IQXC-26	26.0MHz	±10ppm	±15ppm	-20°C to 70°C	12.00pF
LFXTAL081614Cutt	IQXC-26	26.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081614Reel	IQXC-26	26.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL072541Cutt	IQXC-26	27.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL072541Reel	IQXC-26	27.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL081610Cutt	IQXC-26	27.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL072302Cutt	IQXC-26	30.0MHz	±15ppm	±15ppm	20°C to 70°C	8.00pF
LFXTAL081612Cutt	IQXC-26	30.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL056523Cutt	IQXC-26	32.0MHz	±20ppm	±20ppm	-20°C to 70°C	8.00pF
LFXTAL056523Reel	IQXC-26	32.0MHz	±20ppm	±20ppm	-20°C to 70°C	8.00pF
LFXTAL069526Cutt	IQXC-26	32.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL069526Reel	IQXC-26	32.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL079322Cutt	IQXC-26	32.0MHz	±10ppm	±20ppm	-20°C to 70°C	12.00pF
LFXTAL079322Reel	IQXC-26	32.0MHz	±10ppm	±20ppm	-20°C to 70°C	12.00pF
LFXTAL081613Cutt	IQXC-26	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL083149Reel	IQXC-26	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	6.00pF
LFXTAL072304Cutt	IQXC-26	37.4MHz	±15ppm	±15ppm	20°C to 70°C	8.00pF
LFXTAL081616Cutt	IQXC-26	37.4MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL063312Cutt	IQXC-26	40.0MHz	±30ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL069527Cutt	IQXC-26	40.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL069527Reel	IQXC-26	40.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL081619Cutt	IQXC-26	40.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL069528Cutt	IQXC-26	48.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL069528Reel	IQXC-26	48.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL081620Cutt	IQXC-26	48.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL078795Cutt	IQXC-42	16.0MHz	±15ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL081780RL3K	IQXC-42	16.0MHz	±10ppm	±20ppm	-30°C to 85°C	8.00pF
LFXTAL081781RL3K	IQXC-42	16.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081821Cutt	IQXC-42	16.0MHz	±10ppm	±15ppm	-30°C to 85°C	12.00pF
LFXTAL082887RL3K	IQXC-42	16.0MHz	±10ppm	±30ppm	-40°C to 105°C	10.00pF
LFXTAL059585Cutt	IQXC-42	20.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059585Reel	IQXC-42	20.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059585RL3K	IQXC-42	20.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL064174RL3K	IQXC-42	24.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL066139Cutt	IQXC-42	24.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069476RL3K	IQXC-42	24.0MHz	±10ppm	±10ppm	-20°C to 75°C	12.00pF
LFXTAL069493Cutt	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069493Reel	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069493RL3K	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072577RL3K	IQXC-42	24.0MHz	±10ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL076411Cutt	IQXC-42	24.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL076411RL3K	IQXC-42	24.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL081531RL3K	IQXC-42	24.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081646RL3K	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL082123Cutt	IQXC-42	24.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082123RL3K	IQXC-42	24.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL090516RL3K	IQXC-42	24.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL054026Cutt	IQXC-42	25.0MHz	±25ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059552Reel	IQXC-42	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL064933Cutt	IQXC-42	25.0MHz	±30ppm	±30ppm	0°C to 50°C	10.00pF
LFXTAL066140Cutt	IQXC-42	25.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494Bulk	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494Cutt	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494Reel	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494RL3K	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL075431RL3K	IQXC-42	25.0MHz	±30ppm	±40ppm	-30°C to 85°C	6.00pF
LFXTAL082125Cutt	IQXC-42	25.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082125RL3K	IQXC-42	25.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL085846RL3K	IQXC-42	25.0MHz	±25ppm	±50ppm	-40°C to 125°C	10.00pF
LFXTAL090436RL3K	IQXC-42	25.0MHz	±10ppm	±20ppm	-40°C to 105°C	10.00pF
LFXTAL059591Cutt	IQXC-42	26.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059591Reel	IQXC-42	26.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059591RL3K	IQXC-42	26.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL066141Cutt	IQXC-42	26.0MHz	±15ppm	±15ppm	-20°C to 70°C	10.00pF
LFXTAL076879Bulk	IQXC-42	26.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL078377RL3K	IQXC-42	26.0MHz	±10ppm	±10ppm	-20°C to 75°C	12.00pF
LFXTAL081595Cutt	IQXC-42	26.0MHz	±10ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL082126Cutt	IQXC-42	26.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082126Reel	IQXC-42	26.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082126RL3K	IQXC-42	26.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL083241Cutt	IQXC-42	26.0MHz	±15ppm	±20ppm	-20°C to 70°C	8.00pF
LFXTAL059592Cutt	IQXC-42	27.0MHz	±15ppm	±15ppm	-40°C to 85°C	10.00pF
LFXTAL072543Cutt	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072543Reel	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072543RL3K	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL081349Reel	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	12.00pF
LFXTAL083147RL3K	IQXC-42	27.0MHz	±10ppm	±10ppm	-20°C to 70°C	18.00pF
LFXTAL063227Reel	IQXC-42	27.12MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL063227RL3K	IQXC-42	27.12MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL071489Bulk	IQXC-42	27.12MHz	±30ppm	±30ppm	-20°C to 70°C	10.00pF
LFXTAL071489Cutt	IQXC-42	27.12MHz	±30ppm	±30ppm	-20°C to 70°C	10.00pF
LFXTAL071489RL3K	IQXC-42	27.12MHz	±30ppm	±30ppm	-20°C to 70°C	10.00pF
LFXTAL076164Cutt	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL076164Reel	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081630Cutt	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081630RL3K	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL082127Cutt	IQXC-42	27.12MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082127RL3K	IQXC-42	27.12MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL059596Cutt	IQXC-42	30.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059596Reel	IQXC-42	30.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059596RL3K	IQXC-42	30.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082128Cutt	IQXC-42	30.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082128RL3K	IQXC-42	30.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL058002RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	0°C to 50°C	8.00pF
LFXTAL058004Cutt	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL058004RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL058067Cutt	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL058130RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL058699Cutt	IQXC-42	32.0MHz	±10ppm	±10ppm	-10°C to 60°C	10.00pF
LFXTAL058962RL3K	IQXC-42	32.0MHz	±10ppm	±15ppm	-20°C to 70°C	12.00pF
LFXTAL059597Cutt	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059597Reel	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059597RL3K	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL061700Cutt	IQXC-42	32.0MHz	±20ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL061700Reel	IQXC-42	32.0MHz	±20ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL072861RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL073170RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL077362RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	6.00pF
LFXTAL081227RL3K	IQXC-42	32.0MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL081538RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 75°C	8.00pF
LFXTAL081567Cutt	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 75°C	8.00pF
LFXTAL081839RL3K	IQXC-42	32.0MHz	±30ppm	±30ppm	-40°C to 85°C	6.00pF
LFXTAL082129Cutt	IQXC-42	32.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082129RL3K	IQXC-42	32.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL083004RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL085946RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 105°C	12.00pF
LFXTAL088678RL3K	IQXC-42	32.768MHz	±30ppm	±50ppm	-20°C to 70°C	8.00pF
LFXTAL082130Cutt	IQXC-42	37.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082130RL3K	IQXC-42	37.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL059627Cutt	IQXC-42	38.4MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL059627Reel	IQXC-42	38.4MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL059627RL3K	IQXC-42	38.4MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL075418Cutt	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL075418Reel	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL078271Cutt	IQXC-42	38.4MHz	±10ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL081635Cutt	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081635RL3K	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081883RL3K	IQXC-42	38.4MHz	±10ppm	±15ppm	-35°C to 85°C	8.00pF
LFXTAL082131Cutt	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082131RL3K	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082468Cutt	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	10.00pF
LFXTAL082468RL3K	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	10.00pF
LFXTAL059632Cutt	IQXC-42	40.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059632Reel	IQXC-42	40.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059632RL3K	IQXC-42	40.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082132Cutt	IQXC-42	40.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082132Reel	IQXC-42	40.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082132RL3K	IQXC-42	40.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL090469RL3K	IQXC-42	43.935MHz	±20ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL090628Reel	IQXC-42	45.761MHz	±20ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL066363Cutt	IQXC-42	48.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL072546Cutt	IQXC-42	48.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072546Reel	IQXC-42	48.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072546RL3K	IQXC-42	48.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082135Cutt	IQXC-42	48.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082135RL3K	IQXC-42	48.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL079374Cutt	IQXC-42	50.0MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL085859RL3K	IQXC-42	50.0MHz	±10ppm	±50ppm	-40°C to 125°C	8.00pF

联系方式/CONTACT US

泰河电话服务热线：0755-27872782 13824306246

泰河传真贸易通：泰河科技

泰河客服在线客服：794113422　　泰河微信号：taiheth794113422　　公众号：taihekj

泰河邮箱泰河邮箱：taiheth@163.com

泰河地址泰河地址：广东深圳市宝安区40区33号工业城6楼

泰河地址泰河官网：http://www.smdcrystal.com/

IQD CRYSTAL IQXC-26 LFXTAL078691Cutt 1612无源晶振

跟此产品相关的产品 / Related Products

: DSC1001AI2-050.0000,7050mm,50MHz,Microchip安防晶振; DSC1001AI2-050.0000,7050mm,50MHz,Microchip安防晶振，美国进口晶振，Microchip晶振，型号：DSC1001，编码为：DSC1001AI2-050.0000，频率为：50.0MHz，工作温度范围：-40℃至+85℃，小体积晶振尺寸：7.0x5.0mm封装，四脚贴片晶振，有源晶振，DSC1001是一种基于硅MEMS的CMOS晶振系列晶体振荡器。在大范围的电源电压和温度范围内提供优异的抖动和稳定性能。DSC1001包含了一个全硅谐振器，它非常坚固，几乎不受应力相关裂缝的影响，这是石英晶体振荡器常见的。在不牺牲当今系统所需的性能和稳定性的情况下，无晶体设计允许更高水平的可靠性，使DSC1001非常适合坚固、工业和便携式的应用，其中应力、冲击和振动可能会损坏基于石英晶体的系统。应用于：移动通讯应用，无线网络晶振，监控摄像头，低调应用，工业应用。

: DSC1001DL5-075.0000,2520mm,DSC1001,Microchip工业应用晶振; DSC1001DL5-075.0000,2520mm,DSC1001,Microchip工业应用晶振，美国进口晶振，Microchip晶振，型号：DSC1001，编码为：DSC1001DL5-075.0000，频率为：75MHz，小体积晶振尺寸：2.5x2.0x0.85mm封装，四脚贴片晶振，有源晶振，DSC1001是一种基于硅MEMS的CMOS系列晶体振荡器，在大范围的电源电压和温度范围内提供优异的抖动和稳定性能。工作温度范围：-40℃至105℃。DSC1001包含了一个全硅谐振器，它非常坚固，几乎不受应力相关裂缝的影响，这是石英晶体振荡器常见的。在不牺牲当今系统所需的性能和稳定性的情况下，无晶体设计允许更高水平的可靠性，使DSC1001非常适合坚固、工业和便携式的应用，其中应力、冲击和振动可能会损坏基于石英晶体的系统。应用于：移动应用，消费电子，便携式电子，DVR，闭路电视，监控摄像头，低调应用，工业应用。

: ABLS7M2-24.576MHZ-D2Y-T,24.576MHz,Abracon通信晶振; ABLS7M2-24.576MHZ-D2Y-T,24.576MHz,Abracon通信晶振，美国进口晶振，Abracon晶振，艾博康晶振，型号：ABLS7M2，编码为：ABLS7M2-24.576MHZ-D2Y-T，频率为：24.576MHz，频率稳定性：±30ppm，频率容差：±20ppm，工作温度范围：-40℃至+85℃，负载电容：18pF，小体积晶振尺寸：7.0x4.1x2.0mm，两脚贴片晶振，石英晶振，石英晶体谐振器，无源晶振，SMD晶振，应用于：通讯设备晶振，无线蓝牙晶振，智能家居晶振、调制解调器，微处理器等应用。
