CX3225CA32000D0HSSCC/3225mm/8pF/32MHz/±50ppm
频率：12MHz~54MHz
尺寸：3.2x2.5mm

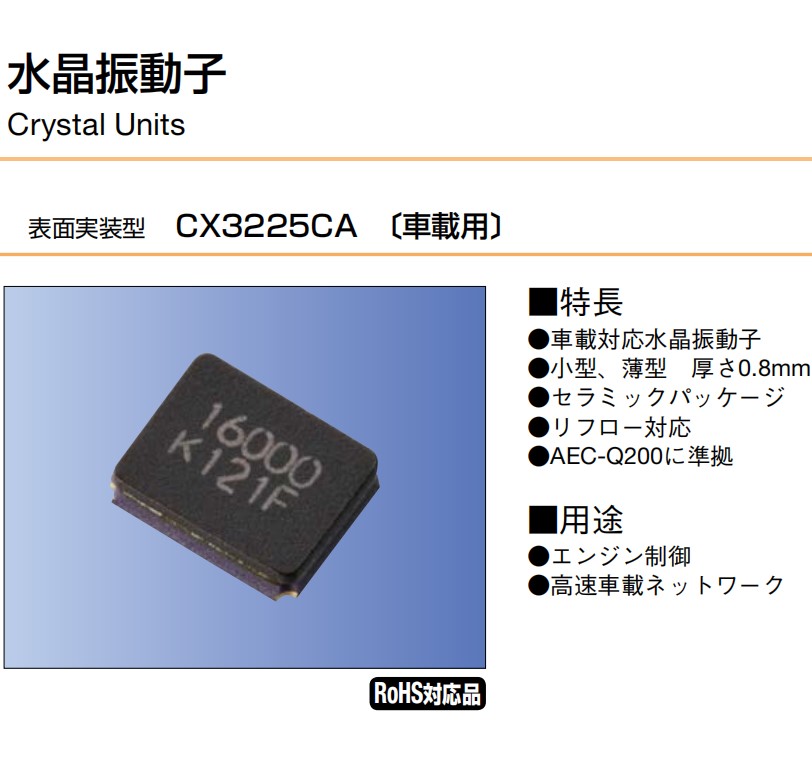

CX3225CA32000D0HSSCC/3225mm/8pF/32MHz/±50ppm，日本进口Kyocera京瓷晶振，型号CX3225CA，编码为CX3225CA32000D0HSSCC，是一款小体积晶振尺寸3.2x2.5x0.8mm陶瓷封装，四脚贴片晶振，无源晶振，石英晶体谐振器，石英晶体，车载对应石英振子，SMD晶振，耐高温晶振，无铅环保晶振，频率：32MHz，工作温度范围：-40℃至+125℃，具有超小型晶振、轻薄型晶振、耐热、耐振、耐冲击等优良的耐环境特性，满足无铅焊接的高温回流温度曲线要求，符合AEC-Q200标准。该小体积无源晶振应用于：汽车电子设备，发动机控制，高速车载网络，车载控制器晶振，汽车动力转向控制器晶振，汽车胎压检测专用晶振，通讯设备，无线网络，蓝牙模块等应用。

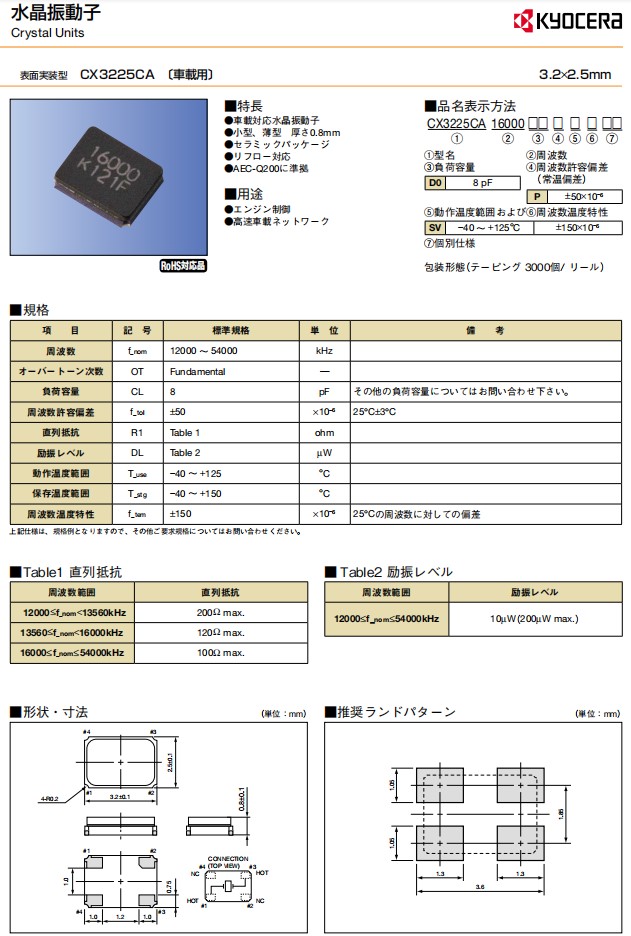

CX3225CA32000D0HSSCC/3225mm/8pF/32MHz/±50ppm，参数图
項 目
記 号
CX3225CA 规格
単 位
周波数
f_nom
12000 ~ 54000
kHz
超调阶数
OT
Fundamental
―
負荷容量
CL
8
pF
周波数許容偏差
f_tol
±50
× 10−6
直列抵抗
R1
Table 1
ohm
激励水平
DL
Table 2
W
動作温度範囲
T_use
−40 ~ +125
°C
保存温度範囲
T_stg
−40 ~ +150
°C
周波数温度特性
f_tem
± 150
× 10−6

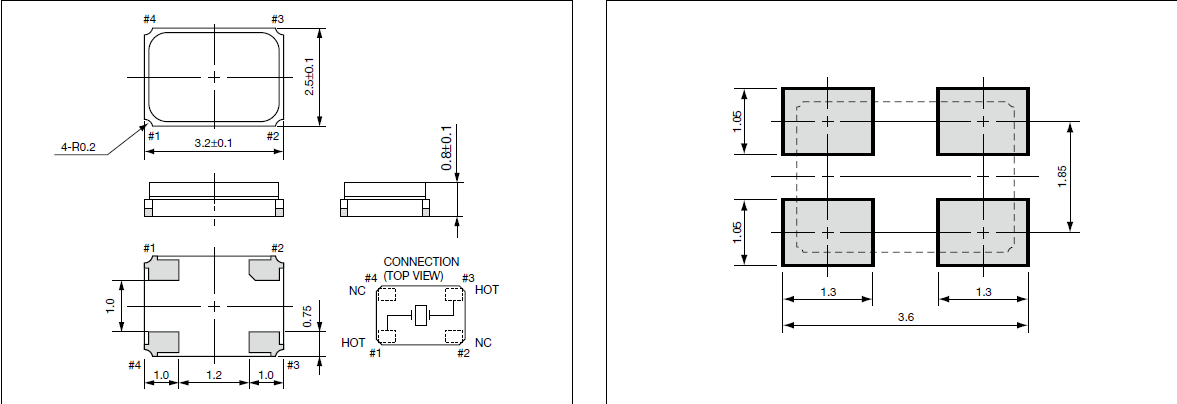

CX3225CA32000D0HSSCC/3225mm/8pF/32MHz/±50ppm，尺寸图
| 原厂编码 | 晶振工厂 | 型号 | 频率 | 工作温度 | 包装/封装 |
| CX3225CA32000D0HSSCC | Kyocera京瓷晶振 | CX3225CA | 32MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA25000D0HSSCC | Kyocera京瓷晶振 | CX3225CA | 25MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA12000P0HSTC1 | Kyocera京瓷晶振 | CX3225CA | 12MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA12000D0HSSCC | Kyocera京瓷晶振 | CX3225CA | 12MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA16000D0HSSCC | Kyocera京瓷晶振 | CX3225CA | 16MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA09843D0HSSTT | Kyocera京瓷晶振 | CX3225CA | 9.843MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA28636D0HSSCC | Kyocera京瓷晶振 | CX3225CA | 28.63636MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA27000D0HSSCC | Kyocera京瓷晶振 | CX3225CA | 27MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA30000D0HSSCC | Kyocera京瓷晶振 | CX3225CA | 30MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA24000D0HSSCC | Kyocera京瓷晶振 | CX3225CA | 24MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA13560D0HSSCC | Kyocera京瓷晶振 | CX3225CA | 13.56MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA16000H0HSSCC | Kyocera京瓷晶振 | CX3225CA | 16MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA10000D0HSSTT | Kyocera京瓷晶振 | CX3225CA | 10MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA20000D0HSSCC | Kyocera京瓷晶振 | CX3225CA | 20MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA26000D0HSSCC | 京瓷晶振 | CX3225CA | 26MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA40000D0HSSCC | Kyocera京瓷晶振 | CX3225CA | 40MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA09843D0HSSZ1 | Kyocera京瓷晶振 | CX3225CA | 9.84375MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA10000D0HSSZ1 | Kyocera京瓷晶振 | CX3225CA | 10MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA28636D0HSSZ1 | Kyocera京瓷晶振 | CX3225CA | 28.63636MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA12000D0HSSZ1 | Kyocera京瓷晶振 | CX3225CA | 12MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA32000D0HSSZ1 | Kyocera京瓷晶振 | CX3225CA | 32MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA20000D0HSSZ1 | Kyocera京瓷晶振 | CX3225CA | 20MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA24000D0HSSZ1 | Kyocera京瓷晶振 | CX3225CA | 24MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA25000D0HSSZ1 | Kyocera京瓷晶振 | CX3225CA | 25MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA26000D0HSSZ1 | Kyocera京瓷晶振 | CX3225CA | 26MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA27000D0HSSZ1 | Kyocera京瓷晶振 | CX3225CA | 27MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA30000D0HSSZ1 | Kyocera京瓷晶振 | CX3225CA | 30MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA13560D0HSSZ1 | Kyocera京瓷晶振 | CX3225CA | 13.56MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA16000D0HSSZ1 | Kyocera京瓷晶振 | CX3225CA | 16MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA40000D0HSSZ1 | Kyocera京瓷晶振 | CX3225CA | 40MHz | -40°C ~ 125°C | 4-SMD, No Lead |
| CX3225CA16000H0HSSZ1 | Kyocera京瓷晶振 | CX3225CA | 16MHz | -40°C ~ 125°C | 4-SMD, No Lead |
