爱普生6G路由器晶振,MG7050HAN,HCSL输出有源晶振,X1M0004310007

频率：100.000000 MHz

尺寸：7.0x5.0x1.6mm

爱普生6G路由器晶振,MG7050HAN,HCSL输出有源晶振,X1M0004310007，日本进口晶振，EPSON爱普生晶振，型号：MG7050HAN，编码为：X1M0004310007，频率为：100.000000 MHz，小体积晶振尺寸：7.0x5.0x1.6mm，14垫脚贴片晶振，HCSL输出差分晶振，有源晶振，电源电压2.5V/3.3V，石英晶振，石英晶体振荡器，具有超小型，轻薄型，低相位噪声，低抖动，低功耗，低电源电压，满足低消耗电流的特点。本产品是利用锯波谐振器的基本振荡的HCSL输出的高频振荡器。这实现了频率为100~200MHz的低抖动和低噪声，MG7050HAN 贴片晶振适用于：服务器、存储，网络，通讯设备，路由器，交换机、物联网，无线网络，蓝牙模块晶振，SATA，SAS，光纤通信，10G以太网等应用。

咨询热线：0755-27872782

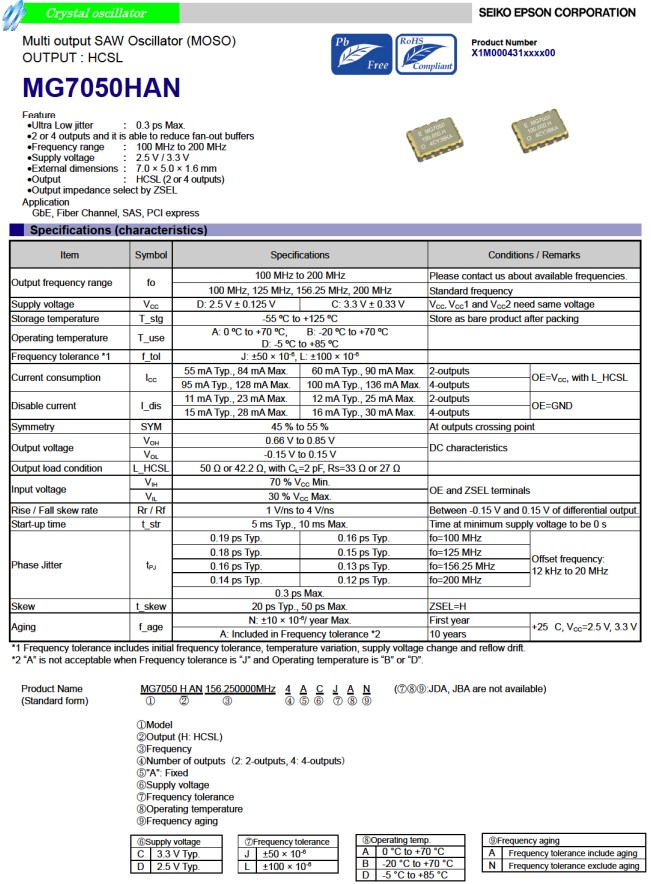

爱普生6G路由器晶振,MG7050HAN,HCSL输出有源晶振,X1M0004310007，参数表

Item	Symbol	MG7050HAN		Conditions / Remarks
Output frequency range	f0	100 MHz		Please contact us about available frequencies.
		100MHz , 125MHz , 156.25MHz , 200MHz		Standard frequency
Supply voltage	VCC	D : 2.5V ± 0.125V	C : 3.3V ± 0.33V	VCC1 and VCC2 need same voltage
Storage temperature	T_stg	-55°C to +125°C		Store as bare product after packing
Operating temperature	T_use	A : 0°C to +70°C
		B : -20°C to +70°C
		D : -5°C to +85°C
Frequency tolerance *1	f_tol	J : ± 50 × 10-6
		L : ±100 × 10-6
Current consumption	ICC	55 mA Typ.	60 mA Typ.	2-outputs	OE = VCC
		84 mA Max.	90 mA Max.		with L_HCSL
		95 mA Typ.	100 mA Typ.	4-outputs
		128 mA Max.	136 mA Max.
Disable current	I_dis	11 mA Typ.	12 mA Typ.	2-outputs	OE = GND
		23 mA Max.	25 mA Max.
		15 mA Typ.	16 mA Typ.	4-outputs
		28 mA Max.	30 mA Max.
Symmetry	SYM	45%to 55%		At outputs crossing point
Output voltage	VOH	0.66 V to 0.85 mV		DC characteristics
	VOL	-0.15 V to 0.15 V
Output load condition	L_HCSL	50Ω or 42.2Ω, with CL = 2pF,
		Rs = 33Ω or 27Ω
Input voltage	VIH	70% VCC Min.		OE and ZSEL terminals
	VIL	30% VCC Max.
Rise time / Fall time	Rr / Rf	1 V/ns to 4 V/ns		Between -0.15 V and 0.15 V of differential output.
Start-up time	t_str	5 ms Typ., 10 ms Max.		Time at minimum supply voltage to be 0 s
Phase Jitter	tPJ	0.19 ps Typ.	0.16 ps Typ.	f0 = 100MHz	Offset frequency:
		0.18 ps Typ.	0.15 ps Typ.	f0 = 125MHz	12kHz to 20MHz
		0.16 ps Typ.	0.13 ps Typ.	f0 = 156.25MHz
		0.14 ps Typ.	0.12 ps Typ.	f0 = 200MHz
		0.3 ps Max.
Skew	t_skew	20ps Typ. 50ps Max.		FSEL = H
Aging	f_aging	N : ± 10 × 10-6 / year Max.		First year	+25°C,
		A : Included in Frequency tolerance *2		10 years	VCC = 2.5V , 3.3V

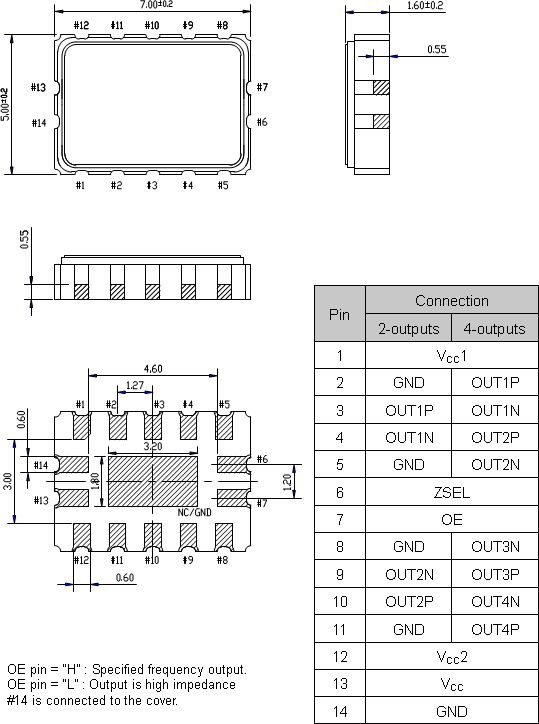

爱普生6G路由器晶振,MG7050HAN,HCSL输出有源晶振,X1M0004310007，尺寸图

爱普生6G路由器晶振,MG7050HAN,HCSL输出有源晶振,X1M0004310007

差分晶振有不同的输出信号，LV-PECL，LVDS，HCSL，是差分晶振通用的输出信号.一般为六脚石英晶振，能够很容易地识别小信号，能够从容精确地处理'双极'信号，对外部电磁干扰（EMI）是高度免疫的.实现高频高精度等要求，更加保障了各种系统参考时钟的可靠性，具有高性能，低功耗，低噪声，低抖动，低损耗等特点.被广泛用于通讯设备，机顶盒，光端机，安防设备及各种频率控制设备上.

石英晶体振荡器	型号	频率	尺寸	输出方式	电源电压	工作温度
X1M0000910001	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910002	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910003	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910004	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-5 to 85 °C
X1M0000910005	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-20 to 70 °C
X1M0000910006	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910007	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-5 to 85 °C
X1M0000910008	EG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910009	EG-2102CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910010	EG-2102CA	322.265625 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-5 to 85 °C
X1M0001010002	EG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	2.375 to 2.625 V	0 to 70 °C
X1M0004310004	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
X1M0004310006	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL振荡器	2.970 to 3.630 V	-5 to 85 °C
X1M0004310007	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	0 to 70 °C
X1M0004310008	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
X1M0004310009	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C
X1M0004310010	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C
X1M0004310011	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C
X1M0004610001	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.375 to 2.625 V	0 to 70 °C
X1M0004610002	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.970 to 3.630 V	0 to 70 °C
X1M0004610003	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
X1M0004610006	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
