XTL541200-C282-030台产晶振,SIWARD高精度晶体,遥遥领先的物联网晶振

频率：8MHZ

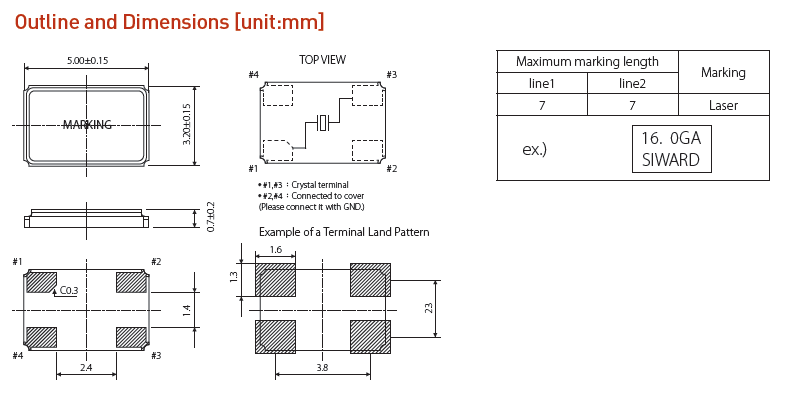

尺寸：5.0x3.2mm

XTL541200-C282-030台产晶振,SIWARD高精度晶体,遥遥领先的物联网晶振，台湾希华晶振，Siward晶振，台产晶振，进口晶振，卫星通讯晶振，车载系统晶振，笔记本电脑晶振，石英晶振，无源晶振，贴片晶振。四脚晶振，高品质晶振，低损耗晶振，低抖动晶振，6G通讯设备晶振。超薄/尺寸(5.0x3.2x0.7mm) 陶瓷SMD封装真空接缝密封紧密的公差和稳定性重新焊接/压花胶带符合AEC-Q200的产品。5032mm体积的贴片晶振,可以说是目前小型数码产品的福音,目前超小型的智能手机里面所应用的就是小型的石英晶振,该产品最适用于无线通讯系统,无线局域网,已实现低相位噪声,低电压,低消费电流和高稳定度,超小型,质量轻等产品特点,产品本身编带包装方式,可对应自动高速贴片机应用,以及高温回流焊接，产品无铅对应，为无铅产品.

咨询热线：0755-27872782

TH-1 890

XTL541200-C282-030台产晶振,SIWARD高精度晶体,遥遥领先的物联网晶振，台湾希华晶振，Siward晶振，台产晶振，进口晶振，卫星通讯晶振，车载系统晶振，笔记本电脑晶振，石英晶振，无源晶振，贴片晶振。四脚晶振，高品质晶振，低损耗晶振，低抖动晶振，6G通讯设备晶振。超薄/尺寸(5.0x3.2x0.7mm) 陶瓷SMD封装真空接缝密封紧密的公差和稳定性重新焊接/压花胶带符合AEC-Q200的产品。5032mm体积的贴片晶振,可以说是目前小型数码产品的福音,目前超小型的智能手机里面所应用的就是小型的石英晶振,该产品最适用于无线通讯系统,无线局域网,已实现低相位噪声,低电压,低消费电流和高稳定度,超小型,质量轻等产品特点,产品本身编带包装方式,可对应自动高速贴片机应用,以及高温回流焊接，产品无铅对应，为无铅产品.

TH-2 890

XTL541200-C282-030台产晶振,SIWARD高精度晶体,遥遥领先的物联网晶振

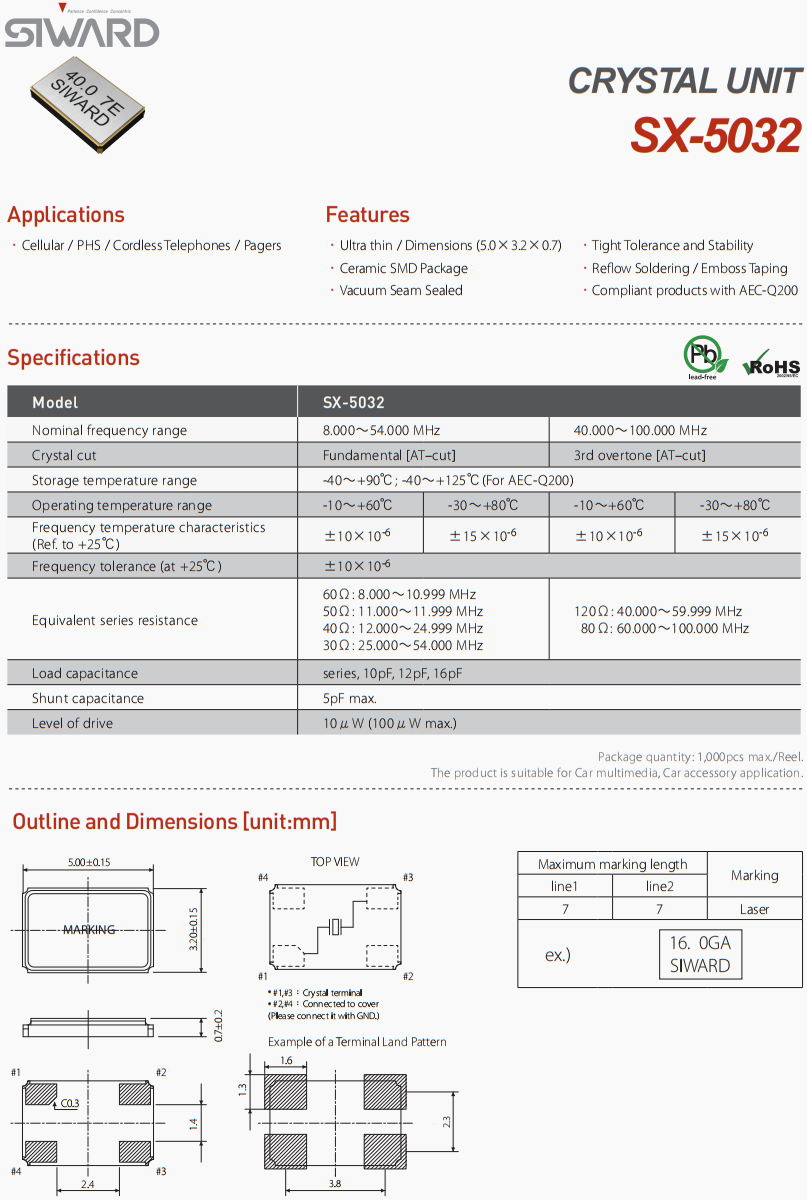

型号	SX-5032
标称频率范围	8.000 ∼54.000 MHz		40.000 ∼ 100.000 MHz
晶体切割	Fundamental [AT– cut]		3rd overtone [AT– cut]
储存温度范围	-40 ∼+90℃; -40 ∼+125℃(For AEC-Q200)
工作温度范围	- 10 ∼+60℃	-30 ∼+80℃	- 10 ∼+60℃	-30 ∼+80℃
温度范围内的频率稳定度	± 10×10-6	± 15×10-6	± 10×10-6	± 15×10-6
频率容差	± 10×10-6
等效串联电阻	60Ω: 8.000 ∼ 10.999 MHz 50Ω: 11.000 ∼ 11.999 MHz 40Ω: 12.000 ∼24.999 MHz 30Ω: 25.000 ∼54.000 MHz		120Ω: 40.000 ∼59.999 MHz 80Ω: 60.000 ∼ 100.000 MHz
负载电容	series, 10pF, 12pF, 16pF
分流电容	5pF max.
驱动电平	10μW ( 100μW max.)

SIWARD原厂编码	生产商品牌	型号	频率	频率偏差度	负载电荷	工作温度
XTL721-Q23-048	Siward晶振	XTL72	32.768 kHz	±20ppm	6pF	-40°C ~ 85°C
XTL721-S349-005	Siward晶振	XTL72	32.768 kHz	±20ppm	7pF	-40°C ~ 85°C
XTL721-S999-301	Siward晶振	XTL72	32.768 kHz	±20ppm	9pF	-40°C ~ 85°C
XTL721-S999-429	Siward晶振	XTL72	32.768 kHz	±20ppm	6pF	-40°C ~ 85°C
XTL741-S999-319	Siward晶振	XTL74	32.768 kHz	±20ppm	9pF	-40°C ~ 85°C
XTL741-U11-402	Siward晶振	XTL74	32.768 kHz	±20ppm	7pF	-40°C ~ 85°C
XTL741-S999-298	Siward晶振	XTL74	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
XTL741-S999-379	Siward晶振	XTL74	32.768 kHz	±20ppm	7pF	-40°C ~ 85°C
XTL741-S999-327	Siward晶振	XTL74	32.768 kHz	±20ppm	4pF	-40°C ~ 85°C
XTL721-S999-286	Siward晶振	XTL72	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
XTL751-S999-544	Siward晶振	XTL75	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
XTL751-S999-548	Siward晶振	XTL75	32.768 kHz	±20ppm	9pF	-40°C ~ 85°C
XTL751-S999-420	Siward晶振	XTL75	32.768 kHz	±20ppm	7pF	-40°C ~ 85°C
CGX70502-13.800-G108	Siward晶振	CGX-70502	13.8 MHz	±50ppm	16pF	-10°C ~ 60°C
CGX70502-14.050-G109	Siward晶振	CGX-70502	14.05 MHz	±50ppm	16pF	-10°C ~ 60°C
CGX70502-14.800-H134	Siward晶振	CGX-70502	14.8 MHz	±50ppm	16pF	-10°C ~ 60°C
CGX70502-15.425-H135	Siward晶振	CGX-70502	15.425 MHz	±50ppm	16pF	-10°C ~ 60°C
CGX70502-15.925-H136	Siward晶振	CGX-70502	15.925 MHz	±50ppm	16pF	-10°C ~ 60°C
CGX70502-16.300-H137	Siward晶振	CGX-70502	16.3 MHz	±50ppm	16pF	-10°C ~ 60°C
XTL581100-J96-011	Siward晶振	SX-2520	16 MHz	±10ppm	8pF	-20 ℃~70 ℃
XTL571200-K114-002	Siward晶振	SX-3225	12 MHz	±10ppm	10pF	-40°C ~ 85°C
XTL571150-F98-063	Siward晶振	SX-3225	24 MHz	±15ppm	18pF	-20 ℃~70 ℃
XTL571100-H201-493	Siward晶振	SX-3225	25 MHz	±10ppm	12pF	-20 ℃~70 ℃
XTL541200-C282-030	Siward晶振	SX-5032	8 MHz	±20ppm	20pF	-40°C ~ 85°C
XTL5A1100-M118-056	Siward晶振	SXT-2520	26 MHz	±10ppm	7pF	-30°C ~ 85°C
XTL5A1100-M118-132	Siward晶振	SXT-2520	26 MHz	±10ppm	7pF	-30°C ~ 105°C
XTL5A1100-S362-009	Siward晶振	SXT-2520	26 MHz	±10ppm	9pF	-30°C ~ 85°C
XTL55S16-S208-018TR4	Siward晶振	SX-4025	16 MHz	±10ppm	9pF	-20 ℃~75 ℃
XTL721-G78-1609	Siward晶振	CSF-3215	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
XTL741-R53-039	Siward晶振	SF-2012	32 kHz	±20ppm	12.5pF	-40°C ~ 85°C
XTL741-S999-321	Siward晶振	SF-2012	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
XTL501100-F98-044	Siward晶振	SX-2016	24 MHz	±10ppm	8pF	-20 ℃~75 ℃
XTL501100-S413-007	Siward晶振	SX-2016	32 MHz	±10ppm	9pF	-20 ℃~75 ℃
XTL541200-C282-030	Siward晶振	SX-5032	8 MHz	±20ppm	20pF	-40°C ~ 85°C
XTL571100-C249-064	Siward晶振	SX-3225	37.4 MHz	±10ppm	10pF	-10°C ~ 70°C
XTL571100-F98-020	Siward晶振	SX-3225	12 MHz	±10ppm	10pF	-20 ℃~70 ℃
XTL571100-H201-493	Siward晶振	SX-3225	25 MHz	±10ppm	12pF	-20 ℃~70 ℃
XTL571100-M118-048	Siward晶振	SX-3225	26 MHz	±10ppm	7.3pF	-20 ℃~75 ℃
XTL571100-N98-008	Siward晶振	SX-3225	25 MHz	±10ppm	20pF	-20 ℃~75 ℃
XTL571150-F98-063	Siward晶振	SX-3225	24 MHz	±15ppm	18pF	-20 ℃~75 ℃
XTL571150-G47-219	Siward晶振	SX-3225	25 MHz	±10ppm	18pF	-40°C ~ 85°C
XTL571150-M118-070	Siward晶振	SX-3225	40 MHz	±7ppm	13pF	-40°C ~ 85°C
XTL571200-H201-177	Siward晶振	SX-3225	32 MHz	±10ppm	9pF	-40°C ~ 85°C
XTL571200-V42-001	Siward晶振	SX-3225	12 MHz	±20ppm	20pF	-10°C ~ 70°C
XTL571300-U11-279	Siward晶振	SX-3225	12 MHz	±30ppm	12pF	-40°C ~ 85°C
XTL581100-J96-011	Siward晶振	SX-2520	16 MHz	±10ppm	8pF	-20 ℃~70 ℃
XTL581100-M171-008	Siward晶振	SX-2520	38.4 MHz	±10ppm	10pF	-30°C ~ 85°C
XTL581200-G47-319	Siward晶振	SX-2520	12 MHz	±10ppm	10pF	-40°C ~ 85°C
XTL581150-G47-223	Siward晶振	SX-2520	40 MHz	±10ppm	12pF	-30°C ~ 85°C
XTL501300-A292-004	Siward晶振	SX-2016	16 MHz	±20ppm	9pF	-40°C ~ 85°C
