思佳讯晶振,7050mm晶振,510BBA125M000AAGR,6G光纤通道晶振
prevnext

思佳讯晶振,7050mm晶振,510BBA125M000AAGR,6G光纤通道晶振

频率：125MHz

尺寸：7.0×5.0mm

思佳讯晶振,7050mm晶振,510BBA125M000AAGR,6G光纤通道晶振,思佳讯晶振,欧美进口晶振,Si510有源晶振,510BBA125M000AAGR晶振,7050mm晶振,六脚SMD晶体,LVDS输出晶振,125M差分晶振,电压3.3V,工作温度-40~85°C,高稳定性晶振,低相噪晶振,低相位晶振,6G光纤通道晶振,PCI Express晶振,航空电子设备晶振,数据中心晶振.
咨询热线：0755-27872782
QQ咨询 财付通

TH-1 890

思佳讯晶振,7050mm晶振,510BBA125M000AAGR,6G光纤通道晶振,思佳讯晶振,欧美进口晶振,Si510有源晶振,510BBA125M000AAGR晶振,7050mm晶振,六脚SMD晶体,LVDS输出晶振,125M差分晶振,电压3.3V,工作温度-40~85°C,高稳定性晶振,低相噪晶振,低相位晶振,6G光纤通道晶振,PCI Express晶振,航空电子设备晶振,数据中心晶振.

思佳讯晶振,7050mm晶振,510BBA125M000AAGR,6G光纤通道晶振特点

•支持以下任何频率 100 kHz至250 MHz

•低抖动操作

•2到4周的交货时间

•完全稳定包括10年老化

•全面的生产测试覆盖范围包括晶体ESR和 DLD

•用于电源噪声滤波的片上LDO稳压器

•3.3、2.5或1.8 V工作电压

•差异(LVPECL，LVDS， HCSL)或CMOS输出选项

•可选集成1:2 CMOS 扇出缓冲器

•在OE和电源上进行低档抑制

•行业标准5 x 7、3.2 x 5、 和2.5 x 3.2mm封装

•无铅，符合RoHS标准

•工作温度–40至85°C

TH-2 890

思佳讯晶振,7050mm晶振,510BBA125M000AAGR,6G光纤通道晶振规格表

项目 符号 规格说明 条件
额定频率 f_nom 125MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 Vcc 3.3V
储存温度 T_stg -55℃~+125℃ 裸存
工作温度 T_use -40℃~ +85℃
频率稳定性 f_tol ±25 ppm +25℃,超出标准的规格说明请联系我们以便获取相关信息
电源电流 IDD 23mA Max
LVDS
对称性（占空比） SYM 48%~52% 在输出交叉点
输出电压 VOC 1.33V Max
LVDS
VO 0.45Vpp Max
输入电压 VIH 80%VDD Min

VIL 20%VDD Max
上升下降时间 tr/tf 800ps Max
LVDS
起始时间 t str 10ms Max
相位抖动 tpj 0.55ps Max
LVDS

TH-3 890

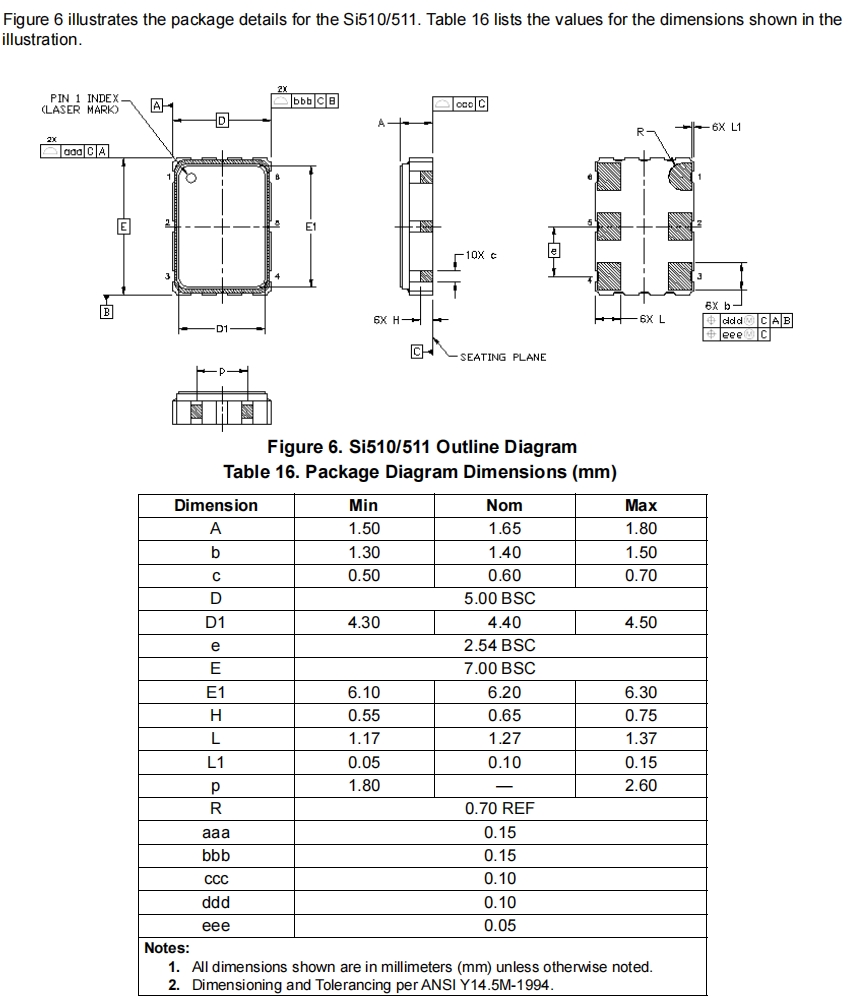

思佳讯晶振,7050mm晶振,510BBA125M000AAGR,6G光纤通道晶振尺寸图

Si510-7050SI510-511

Si510-511-1

原厂编码 品牌 型号 频率 输出 电压 频率稳定性 工作温度
510ABA148M500BAGR Skyworks Solutions Inc. Si510 148.5 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510BBA156M250BAGR Skyworks Solutions Inc. Si510 156.25 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510BBA125M000AAGR Skyworks Solutions Inc. Si510 125 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510BBA156M250AAGR Skyworks Solutions Inc. Si510 156.25 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510BBA125M000BAG Skyworks Solutions Inc. Si510 125 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510BBA100M000BAG Skyworks Solutions Inc. Si510 100 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510FBA125M000BAG Skyworks Solutions Inc. Si510 125 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510BBA200M000BAG Skyworks Solutions Inc. Si510 200 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510BBA156M250AAG Skyworks Solutions Inc. Si510 156.25 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510ABA156M250AAG Skyworks Solutions Inc. Si510 156.25 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510DBA100M000BAG Skyworks Solutions Inc. Si510 100 MHz HCSL 3.3V ±25ppm -40°C ~ 85°C
510BBA200M000AAG Skyworks Solutions Inc. Si510 200 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510ABA212M500AAG Skyworks Solutions Inc. Si510 212.5 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510FBA200M000AAG Skyworks Solutions Inc. Si510 200 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510BAA133M333BAG Skyworks Solutions Inc. Si510 133.333 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
510DCA100M000AAG Skyworks Solutions Inc. Si510 100 MHz HCSL 3.3V ±20ppm -40°C ~ 85°C
510FBA200M000AAGR Skyworks Solutions Inc. Si510 200 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510BBA106M250BAG Skyworks Solutions Inc. Si510 106.25 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510FBA74M2500BAG Skyworks Solutions Inc. Si510 74.25 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510BBA74M2500BAG Skyworks Solutions Inc. Si510 74.25 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510FBA156M250AAG Skyworks Solutions Inc. Si510 156.25 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510ABA155M520AAG Skyworks Solutions Inc. Si510 155.52 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510FBA74M2500AAG Skyworks Solutions Inc. Si510 74.25 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510ABA200M000BAG Skyworks Solutions Inc. Si510 200 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510BBA150M000BAG Skyworks Solutions Inc. Si510 150 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510BBA156M250BAG Skyworks Solutions Inc. Si510 156.25 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510EBA125M000AAG Skyworks Solutions Inc. Si510 125 MHz LVPECL 2.5V ±25ppm -40°C ~ 85°C
510ABA106M250BAG Skyworks Solutions Inc. Si510 106.25 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510BBA000110AAG Skyworks Solutions Inc. Si510 148.35165 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510ABA125M000AAG Skyworks Solutions Inc. Si510 125 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510BCA148M500BAG Skyworks Solutions Inc. Si510 148.5 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C
510ACA25M0000BAG Skyworks Solutions Inc. Si510 25 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C
510BBA156M000BAG Skyworks Solutions Inc. Si510 156 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510ACA47M2500AAG Skyworks Solutions Inc. Si510 47.25 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C
510JCA96M0000BAGR Skyworks Solutions Inc. Si510 96 MHz LVDS 1.8V ±20ppm -40°C ~ 85°C
510BBA106M250BAGR Skyworks Solutions Inc. Si510 106.25 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510BBA100M000AAGR Skyworks Solutions Inc. Si510 100 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510FBA200M000BAGR Skyworks Solutions Inc. Si510 200 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510ACA000383BAGR Skyworks Solutions Inc. Si510 383 kHz LVPECL 3.3V ±20ppm -40°C ~ 85°C
510BAA176M000BAG Skyworks Solutions Inc. Si510 176 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
510FCA160M000BAG Skyworks Solutions Inc. Si510 160 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C
510FBA125M000AAG Skyworks Solutions Inc. Si510 125 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510ABA100M000BAG Skyworks Solutions Inc. Si510 100 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510FBA000110BAG Skyworks Solutions Inc. Si510 148.35165 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510BBA155M520AAG Skyworks Solutions Inc. Si510 155.52 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510ABA100M000AAG Skyworks Solutions Inc. Si510 100 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510JCA135M000BAG Skyworks Solutions Inc. Si510 135 MHz LVDS 1.8V ±20ppm -40°C ~ 85°C
510FBA000149AAG Skyworks Solutions Inc. Si510 74.175824 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510FBA212M500BAG Skyworks Solutions Inc. Si510 212.5 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510JCA74M2500BAG Skyworks Solutions Inc. Si510 74.25 MHz LVDS 1.8V ±20ppm -40°C ~ 85°C
510BBA100M000AAG Skyworks Solutions Inc. Si510 100 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510BBA148M500BAG Skyworks Solutions Inc. Si510 148.5 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510FBA100M000BAG Skyworks Solutions Inc. Si510 100 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510FBA156M250BAG Skyworks Solutions Inc. Si510 156.25 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510BBA125M000AAG Skyworks Solutions Inc. Si510 125 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510JCA100M000BAG Skyworks Solutions Inc. Si510 100 MHz LVDS 1.8V ±20ppm -40°C ~ 85°C
510BBA148M500AAG Skyworks Solutions Inc. Si510 148.5 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510FBA200M000BAG Skyworks Solutions Inc. Si510 200 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510BCA125M000BAG Skyworks Solutions Inc. Si510 125 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C
510BBA000110BAG Skyworks Solutions Inc. Si510 148.35165 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510JAA120M000BAGR Skyworks Solutions Inc. Si510 120 MHz LVDS 1.8V ±50ppm -40°C ~ 85°C
510ABBM100000BAGR Skyworks Solutions Inc. Si510 100 kHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510HBA10M0000BAGR Skyworks Solutions Inc. Si510 10 MHz HCSL 2.5V ±25ppm -40°C ~ 85°C
510AAA124M512AAGR Skyworks Solutions Inc. Si510 124.512 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
510ACA26M0000BAGR Skyworks Solutions Inc. Si510 26 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C
510BAA000244BAGR Skyworks Solutions Inc. Si510 244 kHz LVDS 3.3V ±50ppm -40°C ~ 85°C
510BCA000383BAGR Skyworks Solutions Inc. Si510 383 kHz LVDS 3.3V ±20ppm -40°C ~ 85°C
510ECA50M0000BAGR Skyworks Solutions Inc. Si510 50 MHz LVPECL 2.5V ±20ppm -40°C ~ 85°C
510FCA32M0000BAGR Skyworks Solutions Inc. Si510 32 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C
510ABA115M000AAGR Skyworks Solutions Inc. Si510 115 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510ABA24M5760AAGR Skyworks Solutions Inc. Si510 24.576 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510ABB21M4000AAGR Skyworks Solutions Inc. Si510 21.4 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510DBA10M0000AAGR Skyworks Solutions Inc. Si510 10 MHz HCSL 3.3V ±25ppm -40°C ~ 85°C
510BBA000244BAGR Skyworks Solutions Inc. Si510 244 kHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510ACA106M250AAGR Skyworks Solutions Inc. Si510 106.25 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C
510FCA40M0000AAGR Skyworks Solutions Inc. Si510 40 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C
510ABA000292AAGR Skyworks Solutions Inc. Si510 292 kHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510ABB000292AAGR Skyworks Solutions Inc. Si510 292 kHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510ABB156M250AAGR Skyworks Solutions Inc. Si510 156.25 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510BBA135M000AAGR Skyworks Solutions Inc. Si510 135 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510BBB000292AAGR Skyworks Solutions Inc. Si510 292 kHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510BBB161M133AAGR Skyworks Solutions Inc. Si510 161.133 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510ABBM100000BAG Skyworks Solutions Inc. Si510 100 kHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510HBA10M0000BAG Skyworks Solutions Inc. Si510 10 MHz HCSL 2.5V ±25ppm -40°C ~ 85°C
510ABA156M250AAGR Skyworks Solutions Inc. Si510 156.25 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510FBA156M250AAGR Skyworks Solutions Inc. Si510 156.25 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510ABA155M520AAGR Skyworks Solutions Inc. Si510 155.52 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510BBA155M520AAGR Skyworks Solutions Inc. Si510 155.52 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510FBA155M520AAGR Skyworks Solutions Inc. Si510 155.52 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510FCA250M000BAGR Skyworks Solutions Inc. Si510 250 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C
510JBA250M000AAGR Skyworks Solutions Inc. Si510 250 MHz LVDS 1.8V ±25ppm -40°C ~ 85°C
510ABA156M250BAGR Skyworks Solutions Inc. Si510 156.25 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510FBA156M250BAGR Skyworks Solutions Inc. Si510 156.25 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510ABA155M520BAGR Skyworks Solutions Inc. Si510 155.52 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510BBA155M520BAGR Skyworks Solutions Inc. Si510 155.52 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510FBA155M520BAGR Skyworks Solutions Inc. Si510 155.52 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510ABA000110BAGR Skyworks Solutions Inc. Si510 148.35165 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510BBA000110BAGR Skyworks Solutions Inc. Si510 148.35165 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510BBA148M500BAGR Skyworks Solutions Inc. Si510 148.5 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510FBA000110BAGR Skyworks Solutions Inc. Si510 148.35165 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510FBA148M500BAGR Skyworks Solutions Inc. Si510 148.5 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510ABA100M000AAGR Skyworks Solutions Inc. Si510 100 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510ABA125M000AAGR Skyworks Solutions Inc. Si510 125 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510FBA100M000AAGR Skyworks Solutions Inc. Si510 100 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510FBA125M000AAGR Skyworks Solutions Inc. Si510 125 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510ABA106M250AAGR Skyworks Solutions Inc. Si510 106.25 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510BBA106M250AAGR Skyworks Solutions Inc. Si510 106.25 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510FBA106M250AAGR Skyworks Solutions Inc. Si510 106.25 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510ABA000149AAGR Skyworks Solutions Inc. Si510 74.175824 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510ABA74M2500AAGR Skyworks Solutions Inc. Si510 74.25 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510BBA000149AAGR Skyworks Solutions Inc. Si510 74.175824 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510BBA74M2500AAGR Skyworks Solutions Inc. Si510 74.25 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510FBA000149AAGR Skyworks Solutions Inc. Si510 74.175824 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510FBA74M2500AAGR Skyworks Solutions Inc. Si510 74.25 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510BBB200M000BAGR Skyworks Solutions Inc. Si510 200 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510JBA200M000BAGR Skyworks Solutions Inc. Si510 200 MHz LVDS 1.8V ±25ppm -40°C ~ 85°C
510JAA120M000BAG Skyworks Solutions Inc. Si510 120 MHz LVDS 1.8V ±50ppm -40°C ~ 85°C
510BCA004638BAGR Skyworks Solutions Inc. Si510 638 kHz LVDS 3.3V ±20ppm -40°C ~ 85°C
510BCA142M800AAGR Skyworks Solutions Inc. Si510 142.8 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C
510FCA148M500AAGR Skyworks Solutions Inc. Si510 148.5 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C
510ABA100M000BAGR Skyworks Solutions Inc. Si510 100 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510ABA125M000BAGR Skyworks Solutions Inc. Si510 125 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510BBA100M000BAGR Skyworks Solutions Inc. Si510 100 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510BBA125M000BAGR Skyworks Solutions Inc. Si510 125 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510FBA100M000BAGR Skyworks Solutions Inc. Si510 100 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510FBA125M000BAGR Skyworks Solutions Inc. Si510 125 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510ABA106M250BAGR Skyworks Solutions Inc. Si510 106.25 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510ABA000149BAGR Skyworks Solutions Inc. Si510 74.175824 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510ABA74M2500BAGR Skyworks Solutions Inc. Si510 74.25 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510BBA000149BAGR Skyworks Solutions Inc. Si510 74.175824 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510BBA74M2500BAGR Skyworks Solutions Inc. Si510 74.25 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510FBA000149BAGR Skyworks Solutions Inc. Si510 74.175824 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510FBA74M2500BAGR Skyworks Solutions Inc. Si510 74.25 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510AAA124M512AAG Skyworks Solutions Inc. Si510 124.512 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
510BAA110M000BAGR Skyworks Solutions Inc. Si510 110 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
510BAA100M000CAGR Skyworks Solutions Inc. Si510 100 MHz LVDS 3.3V ±50ppm -40°C ~ 85°C
510JAA25M0000CAGR Skyworks Solutions Inc. Si510 25 MHz LVDS 1.8V ±50ppm -40°C ~ 85°C
510DAA100M000CAGR Skyworks Solutions Inc. Si510 100 MHz HCSL 3.3V ±50ppm -40°C ~ 85°C
510LAA100M000CAGR Skyworks Solutions Inc. Si510 100 MHz HCSL 1.8V ±50ppm -40°C ~ 85°C
510AAA004701CAGR Skyworks Solutions Inc. Si510 123.345339 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
510AAAM460800CAGR Skyworks Solutions Inc. Si510 460.8 kHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
510AAA004697CAGR Skyworks Solutions Inc. Si510 123.456789 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
510AAAM468000CAGR Skyworks Solutions Inc. Si510 468 kHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
510AAA25M0000CAGR Skyworks Solutions Inc. Si510 25 MHz LVPECL 3.3V ±50ppm -40°C ~ 85°C
510DAA25M6000BAGR Skyworks Solutions Inc. Si510 25.6 MHz HCSL 3.3V ±50ppm -40°C ~ 85°C
510JAA24M0000BAGR Skyworks Solutions Inc. Si510 24 MHz LVDS 1.8V ±50ppm -40°C ~ 85°C
510ABA200M000AAGR Skyworks Solutions Inc. Si510 200 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510BBA200M000AAGR Skyworks Solutions Inc. Si510 200 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510ABA212M500AAGR Skyworks Solutions Inc. Si510 212.5 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510ABA200M000BAGR Skyworks Solutions Inc. Si510 200 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510BBA200M000BAGR Skyworks Solutions Inc. Si510 200 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510ABA212M500BAGR Skyworks Solutions Inc. Si510 212.5 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510BBA212M500BAGR Skyworks Solutions Inc. Si510 212.5 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510FBA212M500BAGR Skyworks Solutions Inc. Si510 212.5 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510BBA000149BAG Skyworks Solutions Inc. Si510 74.175824 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510FBA000149BAG Skyworks Solutions Inc. Si510 74.175824 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510ABA000292AAG Skyworks Solutions Inc. Si510 292 kHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510ABB000292AAG Skyworks Solutions Inc. Si510 292 kHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510ABB156M250AAG Skyworks Solutions Inc. Si510 156.25 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510BBA135M000AAG Skyworks Solutions Inc. Si510 135 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510BBB000292AAG Skyworks Solutions Inc. Si510 292 kHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510BBB161M133AAG Skyworks Solutions Inc. Si510 161.133 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510ABA115M000AAG Skyworks Solutions Inc. Si510 115 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510ABA24M5760AAG Skyworks Solutions Inc. Si510 24.576 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510ABB21M4000AAG Skyworks Solutions Inc. Si510 21.4 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510DBA10M0000AAG Skyworks Solutions Inc. Si510 10 MHz HCSL 3.3V ±25ppm -40°C ~ 85°C
510ABB92M4000BAGR Skyworks Solutions Inc. Si510 92.4 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510FBB92M4000BAGR Skyworks Solutions Inc. Si510 92.4 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510BBA80M0000BAGR Skyworks Solutions Inc. Si510 80 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510ABA33M3300CAGR Skyworks Solutions Inc. Si510 33.33 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510BBA50M0000CAGR Skyworks Solutions Inc. Si510 50 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510FBA100M000CAGR Skyworks Solutions Inc. Si510 100 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510JBA100M000CAGR Skyworks Solutions Inc. Si510 100 MHz LVDS 1.8V ±25ppm -40°C ~ 85°C
510FBA25M0000CAGR Skyworks Solutions Inc. Si510 25 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510BBA100M000CAGR Skyworks Solutions Inc. Si510 100 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510EBA125M000CAGR Skyworks Solutions Inc. Si510 125 MHz LVPECL 2.5V ±25ppm -40°C ~ 85°C
510HBA100M000CAGR Skyworks Solutions Inc. Si510 100 MHz HCSL 2.5V ±25ppm -40°C ~ 85°C
510FBA125M000CAGR Skyworks Solutions Inc. Si510 125 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510JBA60M0000CAGR Skyworks Solutions Inc. Si510 60 MHz LVDS 1.8V ±25ppm -40°C ~ 85°C
510LBA25M0000BAGR Skyworks Solutions Inc. Si510 25 MHz HCSL 1.8V ±25ppm -40°C ~ 85°C
510DBA100M000CAGR Skyworks Solutions Inc. Si510 100 MHz HCSL 3.3V ±25ppm -40°C ~ 85°C
510ABA125M000CAGR Skyworks Solutions Inc. Si510 125 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510BBA110M000BAGR Skyworks Solutions Inc. Si510 110 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510FBA20M0000CAGR Skyworks Solutions Inc. Si510 20 MHz LVDS 2.5V ±25ppm -40°C ~ 85°C
510ABA50M0000BAGR Skyworks Solutions Inc. Si510 50 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510JBA50M0000CAGR Skyworks Solutions Inc. Si510 50 MHz LVDS 1.8V ±25ppm -40°C ~ 85°C
510JBA125M000CAGR Skyworks Solutions Inc. Si510 125 MHz LVDS 1.8V ±25ppm -40°C ~ 85°C
510JBA26M0000CAGR Skyworks Solutions Inc. Si510 26 MHz LVDS 1.8V ±25ppm -40°C ~ 85°C
510ACA106M250AAG Skyworks Solutions Inc. Si510 106.25 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C
510FCA40M0000AAG Skyworks Solutions Inc. Si510 40 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C
510ABA125M000BAG Skyworks Solutions Inc. Si510 125 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510ABA000149BAG Skyworks Solutions Inc. Si510 74.175824 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510ABA74M2500BAG Skyworks Solutions Inc. Si510 74.25 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510ACA26M0000BAG Skyworks Solutions Inc. Si510 26 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C
510BAA000244BAG Skyworks Solutions Inc. Si510 244 kHz LVDS 3.3V ±50ppm -40°C ~ 85°C
510BCA000383BAG Skyworks Solutions Inc. Si510 383 kHz LVDS 3.3V ±20ppm -40°C ~ 85°C
510ECA50M0000BAG Skyworks Solutions Inc. Si510 50 MHz LVPECL 2.5V ±20ppm -40°C ~ 85°C
510FCA32M0000BAG Skyworks Solutions Inc. Si510 32 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C
510ABA25M0000BAGR Skyworks Solutions Inc. Si510 25 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510ABB125M000BAGR Skyworks Solutions Inc. Si510 125 MHz LVPECL 3.3V ±25ppm -40°C ~ 85°C
510BBA108M000BAGR Skyworks Solutions Inc. Si510 108 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510BBA10M0000BAGR Skyworks Solutions Inc. Si510 10 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510BBA25M0000BAGR Skyworks Solutions Inc. Si510 25 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510BBA27M0000BAGR Skyworks Solutions Inc. Si510 27 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
510BBA40M0000BAGR Skyworks Solutions Inc. Si510 40 MHz LVDS 3.3V ±25ppm -40°C ~ 85°C
TH-6 890

联系方式/CONTACT US

泰河电话服务热线：0755-27872782  13824306246

泰河传真贸易通：泰河科技

泰河客服在线客服：794113422　　泰河微信号：taiheth794113422　　公众号：taihekj

泰河邮箱泰河邮箱：taiheth@163.com

泰河地址泰河地址：广东深圳市宝安区40区33号工业城6楼

泰河地址泰河官网：http://www.smdcrystal.com/

思佳讯晶振 7050mm晶振 510BBA125M000AAGR 6G光纤通道晶振

跟此产品相关的产品 / Related Products

S5P33025T-25.000-X-R|25MHz|3.3V|台湾安基品牌
S5P33025T-25.000-X-R|25MHz|3.3V|台湾安基品牌
S5P33025T-25.000-X-R|25MHz|3.3V|台湾安基品牌,台湾安基品牌,S5P进口有源晶振,S5P33025T-25.000-X-R晶振,石英晶体振荡器,5032mm晶振,四脚贴片晶振,SMD晶体,频率25MHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,低功耗晶振,高可靠性晶振,耐高温晶振,电信交换机晶振,光终端设备晶振,微处理器时钟晶振,存储系统晶振.
O 32.0-JT21CT-A-K-2.8-LF|JAUCH|Oscillator Crystal
O 32.0-JT21CT-A-K-2.8-LF|JAUCH|Oscillator Crystal
O 32.0-JT21CT-A-K-2.8-LF|JAUCH|Oscillator Crystal,Jauch晶振,JT21CT进口有源晶振,O 32.0-JT21CT-A-P-3.0-LF晶振,Oscillator Crystal,2016封装晶振,石英晶体振荡器,温度补偿晶振,频率32MHz,电压2.8V,工作温度-40~85°C,频率稳定性2.5ppm,HCMOS输出晶振,低相噪晶振,低抖动晶振,高质量晶振,音频系统晶振,数字设备晶振,智能家居应用晶振,物联网晶振.

O 125.0-JO75-G-2.5-1-T1-LF|JAUCH|OSCILLATOR
O 125.0-JO75-G-2.5-1-T1-LF|JAUCH|OSCILLATOR
O 125.0-JO75-G-2.5-1-T1-LF|JAUCH|OSCILLATOR,Jauch晶振,JO75进口有源晶振,SMD振荡器,O 125.0-JO75-G-2.5-1-T1-LF晶振,四脚贴片晶振,OSCILLATOR晶振,7050mm晶振,频率125MHz,电压2.5V,工作温度-40~85°C,频率稳定性30ppm,LVCMOS / HCMOS兼容输出,高性能晶振,低电源电压晶振,移动通信晶振,网络系统晶振,测试与测量设备晶振,摄像机和视频设备晶振.

泰河盛产品中心 Product Center

石英晶振

谐振器

滤波器

雾化片

SMD晶振

有源晶振

KDS晶振

爱普生晶振

京瓷晶振

32.768K

联系泰河电子
咨询热线 咨询热线：0755-27872782

手机：13824306246

QQ：794113422QQ

邮箱：taiheth@163.com

地址：广东深圳市宝安区40区33号工业城6楼

快速通道快速通道

泰河盛公众号泰河盛微信号
首页KDS晶振爱普生晶振京瓷晶振SMD晶振石英晶振有源晶振雾化片-滤波器-谐振器行业新闻关于泰河联系泰河网站地图
Copyright © 1996-2017 泰河电子 版权所有 地址：广东深圳市宝安区40区33号工业城6楼 备案号：粤ICP备2022069225号
