Mtronpti晶振,M13252DG12 24.000000MHz,5032mm,6G无线网络晶振
频率：24MHz
尺寸：5.0mm×3.2mm
Mtronpti晶振,M13252DG12 24.000000MHz,5032mm,6G无线网络晶振,Mtronpti晶振,欧美进口晶振,M1325无源晶振,M13252DG12 24.000000MHz晶振,石英晶体谐振器,四脚贴片晶振,5032mm晶振,频率24MHz,负载12pF,频率公差10ppm,工作温度-40~85°C,高稳定性晶振,无铅环保晶振,6G无线网络晶振,手持电子设备晶振,便携式仪器晶振,MP3晶振.
咨询热线：0755-27872782
Mtronpti晶振,M13252DG12 24.000000MHz,5032mm,6G无线网络晶振,Mtronpti晶振,欧美进口晶振,M1325无源晶振,M13252DG12 24.000000MHz晶振,石英晶体谐振器,四脚贴片晶振,5032mm晶振,频率24MHz,负载12pF,频率公差10ppm,工作温度-40~85°C,高稳定性晶振,无铅环保晶振,6G无线网络晶振,手持电子设备晶振,便携式仪器晶振,MP3晶振.
Mtronpti晶振,M13252DG12 24.000000MHz,5032mm,6G无线网络晶振特点：
•超小型尺寸
•磁带和卷轴
•无铅陶瓷封装-接缝密封

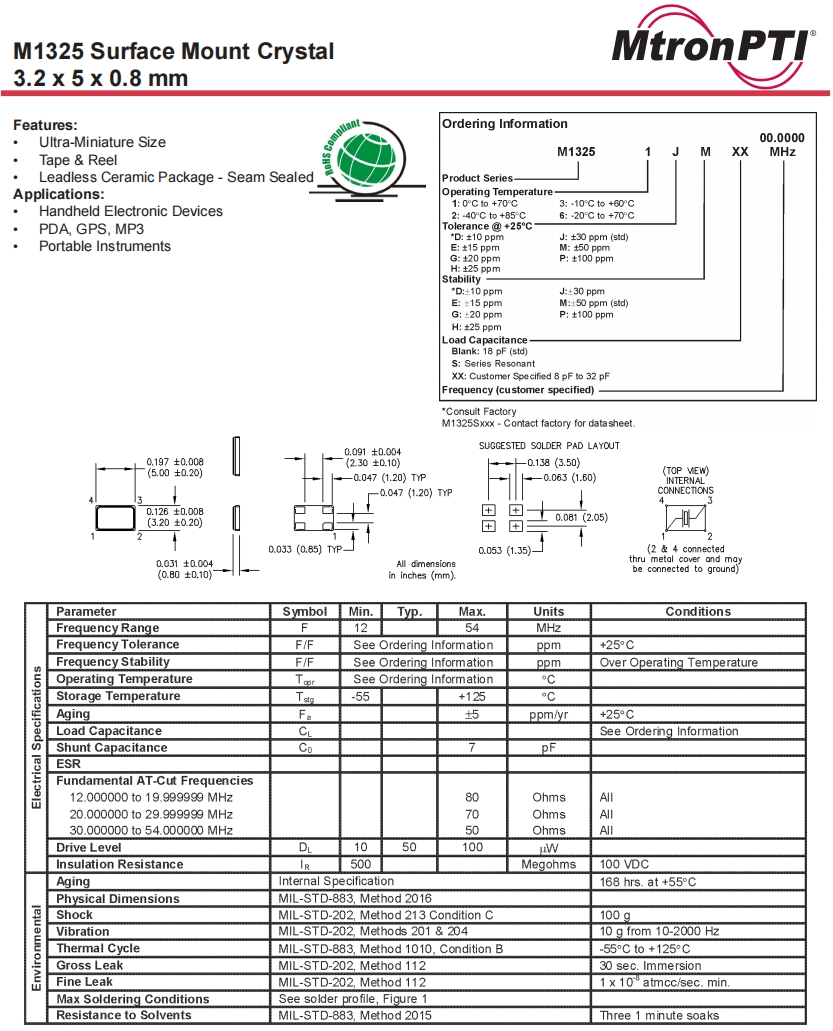

Mtronpti晶振,M13252DG12 24.000000MHz,5032mm,6G无线网络晶振参数表
| 项目 | 符号 | 数值 |
| 频率 | f0 | 24MHz |
| 频率公差 | △ f/f0 | ±10ppm |
| 频率稳定性 | f_tol |
±20ppm |
| 负载电容 | CL | 12pF |
|
并联电容 |
Co |
7pF Max |
| 工作温度 | TOPR | -40℃～＋85℃ |
| 保存温度 | TSTR | -55℃～＋125℃ |
| 串联阻力 | R1 | 70Ω Max. |
| 驱动级别 | DL | 100μW Max |
| 老化 | f_aging | ±5ppm/year |

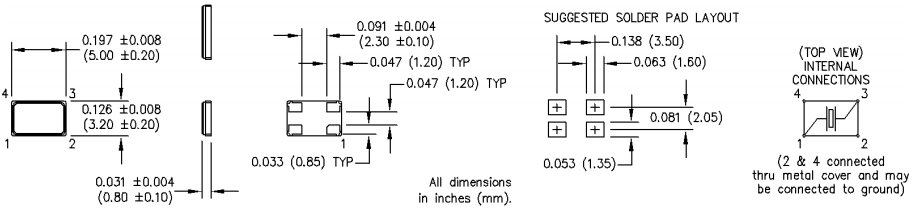

Mtronpti晶振,M13252DG12 24.000000MHz,5032mm,6G无线网络晶振尺寸图
| 原厂编码 | 型号 | 频率稳定度 | 频率(MHz) | 频率容差 | 老化 | 包装 | 工作温度 | 负载 |
| M13252JM 24.000000 | M1325 Series | ±50 ppm | 24 | ±30 ppm | ±5 ppm | 3.2 x 5.0 mm | -40?C to +85?C | 18 pF |
| M13804MP 15.000000 | M1380 Series | ±100 ppm | 15 | ±50 ppm | ±3 ppm | 3.7 x 8.0 mm | -55?C to +125?C | 20 pF |
| M15322GZL 0.032768 | M1532 Series | Parabolic Curve | 0.0328 | ±20 ppm | ±3 ppm | 1.5 x 3.2 mm | -40?C to +85?C | 18 pF |
| 375-01A-R .032768 | MMCC-2 Series | ±65 ppm | 0.0328 | ±30 ppm | ±3 ppm | 2.0 x 6.0 mm | -10?C to +60?C | 12.5 pF |
| PM2DF13 25.000000 | PM series | ±15 ppm | 25 | ±10 ppm | ±5 ppm | 5.0 x 7.0 mm | -40?C to +85?C | 18 pF |
| PM2FM10 25.000000 | PM series | ±50 ppm | 25 | ±15 ppm | ±5 ppm | 5.0 x 7.0 mm | -40?C to +85?C | 18 pF |
| PM2JM 10.000000 | PM series | ±50 ppm | 10 | ±30 ppm | ±5 ppm | 5.0 x 7.0 mm | -40?C to +85?C | 18 pF |
| PM2MM 20.000000 | PM series | ±50 ppm | 20 | ±50 ppm | ±5 ppm | 5.0 x 7.0 mm | -40?C to +85?C | 18 pF |
| PM3MM 11.059200 | PM series | ±50 ppm | 11.0592 | ±50 ppm | ±5 ppm | 5.0 x 7.0 mm | -55?C to +105?C | 18 pF |
| PM3MM 24.000000 | PM series | ±50 ppm | 24 | ±50 ppm | ±5 ppm | 5.0 x 7.0 mm | -55?C to +105?C | 18 pF |
| PM3MM 30.000000 | PM series | ±50 ppm | 30 | ±50 ppm | ±5 ppm | 5.0 x 7.0 mm | -55?C to +105?C | 18 pF |
| PM4GM 25.000000 | PM series | ±50 ppm | 25 | ±20 ppm | ±5 ppm | 5.0 x 7.0 mm | -55?C to +125?C | 18 pF |
| PM4JM 20.000000 | PM series | ±50 ppm | 20 | ±30 ppm | ±5 ppm | 5.0 x 7.0 mm | -55?C to +125?C | 18 pF |
| PM4MM 27.000000 | PM series | ±50 ppm | 27 | ±50 ppm | ±5 ppm | 5.0 x 7.0 mm | -55?C to +125?C | 18 pF |
| M1002S209 4.000000 | MP-1 Series | ±20 ppm | 4 | ±20 ppm | ±5 ppm | HC-49U | -55?C to +105?C | 29.5 pF, 30 pF, 30.5 pF |
| M1002S210 5.482000 | MP-1 Series | ±50 ppm | 5.482 | ±20 ppm | ±5 ppm | HC-49U | -55?C to +105?C | 29.5 pF, 30 pF, 30.5 pF |
| M1002S223 16.666600 | MP-1 Series | ±30 ppm | 16.6666 | ±20 ppm | ±5 ppm | HC-49U | -40?C to +85?C | 14 pF |
| M1002S348 4.730880 | MP-1 Series | ±50 ppm | 4.7309 | ±30 ppm | ±5 ppm | HC-49U | -20?C to +70?C | 20 pF |
| M1002S350 3.686400 | MP-1 Series | ±100 ppm | 3.6864 | ±30 ppm | ±5 ppm | HC-49U | -20?C to +70?C | 30 pF |
| M1002S351 11.059200 | MP-1 Series | ±100 ppm | 11.0592 | ±30 ppm | ±5 ppm | HC-49U | -20?C to +70?C | 30 pF |
| M1002S358 2.048000 | MP-1 Series | ±50 ppm | 2.048 | ±30 ppm | ±5 ppm | HC-49U | -55?C to +105?C | 18 pF |
| M1002S362 8.760000 | MP-1 Series | ±50 ppm | 8.76 | ±50 ppm | ±5 ppm | HC-49U | -20?C to +85?C | 32 pF |
| M1002S366 3.200000 | MP-1 Series | ±50 ppm | 3.2 | ±30 ppm | ±5 ppm | HC-49U | -55?C to +90?C | 32 pF |
| M1002S367 11.059200 | MP-1 Series | ±50 ppm | 11.0592 | ±20 ppm | ±5 ppm | HC-49U | -55?C to +105?C | 18 pF |
| M1007S045 25.000000 | PM series | ±30 ppm | 25 | ±30 ppm | ±5 ppm | 5.0 x 7.0 mm | 0?C to +85?C | 20 pF |
| M1007S099 25.000000 | PM series | ±20 ppm | 25 | ±10 ppm | ±3 ppm | 5.0 x 7.0 mm | -40?C to +70?C | 18 pF |
| M1007S110 8.000000 | PM series | ±100 ppm | 8 | ±100 ppm | ±5 ppm | 5.0 x 7.0 mm | 0?C to +85?C | 16 pF |
| M1007S113 25.000000 | PM series | ±30 ppm | 25 | ±20 ppm | ±5 ppm | 5.0 x 7.0 mm | -40?C to +85?C | 18 pF |
| M1007S143 25.000000 | PM series | ±20 ppm | 25 | ±10 ppm | ±5 ppm | 5.0 x 7.0 mm | -40?C to +85?C | 10 pF |
| M1007S157 26.000000 | PM series | ±50 ppm | 26 | ±30 ppm | ±5 ppm | 5.0 x 7.0 mm | -40?C to +85?C | 20 pF |
| M1007S161 10.000000 | PM series | ±50 ppm | 10 | ±20 ppm | ±5 ppm | 5.0 x 7.0 mm | -40?C to +85?C | 18 pF |
| M1007S165 10.368000 | PM series | ±10 ppm | 10.368 | ±10 ppm | ±2 ppm | 5.0 x 7.0 mm | -20?C to +70?C | 9 pF |
| M1325S091 38.000000 | M1325 Series | ±100 ppm | 38 | ±50 ppm | ±5 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 20 pF |
| M1325S139 25.000000 | M1325 Series | ±20 ppm | 25 | ±15 ppm | ±5 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 10 pF |
| M1325S143 12.000000 | M1325 Series | ±30 ppm | 12 | ±20 ppm | ±5 ppm | 3.2 x 5.0 mm | -40?C to +85?C | 18 pF |
| M1325S156 25.000000 | M1325 Series | ±20 ppm | 25 | ±15 ppm | ±5 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 10 pF |
| M1325S157 25.781250 | M1325 Series | ±20 ppm | 25.7813 | ±15 ppm | ±5 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 10 pF |
| M1325S178 25.000000 | M1325 Series | ±20 ppm | 25 | ±10 ppm | ±5 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 15 pF |
| M1325S179 9.830400 | M1325 Series | ±50 ppm | 9.8304 | ±50 ppm | ±5 ppm | 2.5 x 3.2 mm | -40?C to +85?C | 20 pF |
| M1380S001 17.500000 | M1380 Series | ±100 ppm | 17.5 | ±50 ppm | ±5 ppm | 3.7 x 8.0 mm | -55?C to +125?C | 20 pF |
| 302-000-R 50.315000 | MP-1 Series | ±50 ppm | 50.315 | ±30 ppm | ±5 ppm | HC-49U | -10?C to +70?C | 18 pF |
| 302-000-R 50.330000 | MP-1 Series | ±50 ppm | 50.33 | ±30 ppm | ±5 ppm | HC-49U | -10?C to +70?C | 18 pF |
